PHL Audio 4071-1 8Ω
8 Ω · 50–2500 Hz
No current price
- Fs
- 47Hz
- Xmax
- 6.5mm
- SPL
- 96dB
- Pe
- 400W
- BL
- 20.6T·m
- Vd
- 320cm³
- Qts
- 0.24
- Vas
- 58L
PHL Audio 4071-1 is a 12-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 47 Hz, Qts 0.24, Vas 57.8 L, Xmax 6.5 mm, sensitivity 95.7 dB, plus 320 cm³ Vd and 181 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 47Hz
- Qts
- 0.24
- Qes
- 0.26
- Qms
- 4.1
- Vas
- 57.8L
- Re
- 5.5Ω
- Le
- 1.13mH
Motor and cone
- BL
- 20.6T·m
- Sd
- 493cm²
- Mms
- 67g
- Xmax
- 6.5mm
- Vd †
- 320cm³
- Voice coil
- 77mm
Power and response
- Sensitivity †
- 95.7dB
- Manufacturer sensitivity
- 95.5dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Range
- 50–2500Hz
- EBP †
- 181 · Leans vented
Size and mounting
- Diameter
- 326.5mm
- Cutout
- 282mm
- Depth
- 128.5mm
- Weight
- 8.7kg
Other published values
- Cms
- 0.17mm/N
- Xmech
- 12
Other dimensions
- Mounting Depth
- 128.5
† Calculated by bits from the published values
What this validation status means
Everything else PHL Audio lists
MF · Primary · 12″
- BL
- 20.6T·m
- Fs
- 47Hz
- Le
- 1.13mH
- Re
- 5.5Ω
- Sd
- 493cm²
- Cms
- 0.17mm/N
- Mms
- 67g
- Qes
- 0.26
- Qms
- 4.1
- Qts
- 0.24
- SPL
- 95.7dB
- Vas
- 57.8L
- Xmax
- 6.5mm
- Xmech
- 12
- Power
- 400W
- Impedance
- 8Ω
- Sensitivity
- 95.5dB
- Low limit
- 50Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 95.7dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 95.5dB
- Voice coil
- 77mm
- Weight
- 8.7kg
- Diameter
- 326.5mm
- Depth
- 128.5mm
- Mounting Depth
- 128.5
- Cutout
- 282mm
02
Compare
Same-size drivers, compared with the 4071-1. Clear differences are green when better and red when worse.
No photo
This driver4071-1
Best price
–
Fs
47 Hz
Qts
0.24
Vas
57.8 L
BL
20.6 T·m
Xmax
6.5 mm
Sensitivity
95.7 dB
Power
400 W
B&C12CLA76
£153.54Fs52 Hz +11%, worse
Qts0.25 +4%
Vas56 L −3%
BL20.2 T·m –
Xmax5.3 mm −18%, worse
Sensitivity96.8 dB +1.1
FaitalPRO12FH510
£163.54Fs45 Hz −4%
Qts0.24 –
Vas81.3 L +41%, worse
BL18.9 T·m −8%
Xmax7.5 mm +15%, better
Sensitivity96.7 dB +1
Beyma12MCB700
£174.16Fs51 Hz +9%
Qts0.27 +13%, worse
Vas59.5 L –
BL20.4 T·m –
Xmax7 mm +8%
Sensitivity96.4 dB +0.7
FaitalPRO12FH530
£174.68Fs45 Hz −4%
Qts0.26 +8%
Vas74.1 L +28%, worse
BL18.9 T·m −8%
Xmax7.5 mm +15%, better
Sensitivity96 dB –
RCFMB12N301
£183.23Fs54 Hz +15%, worse
Qts0.24 –
Vas71 L +23%, worse
BL19 T·m −8%
Xmax6 mm −8%
Sensitivity98.4 dB +2.7, better
RCFMB12X351
£187.93Fs55 Hz +17%, worse
Qts0.26 +8%
Vas46 L −20%, better
BL22.5 T·m +9%
Xmax7 mm +8%
Sensitivity96.6 dB +0.9
Eighteen Sound12LW800
£189.95Fs52 Hz +11%, worse
Qts0.29 +21%, worse
Vas48 L −17%, better
BL21.3 T·m +3%
Xmax6.5 mm –
Sensitivity95.6 dB –
BMS12C262
£228.36Fs47 Hz –
Qts0.24 –
Vas60.6 L +5%
BL20.6 T·m –
Xmax2.5 mm −62%, worse
Sensitivity96.1 dB –
Eighteen Sound12ND730
£230.40Fs45 Hz −4%
Qts0.23 −4%
Vas90 L +56%, worse
BL19.2 T·m −7%
Xmax6.5 mm –
Sensitivity97.4 dB +1.7

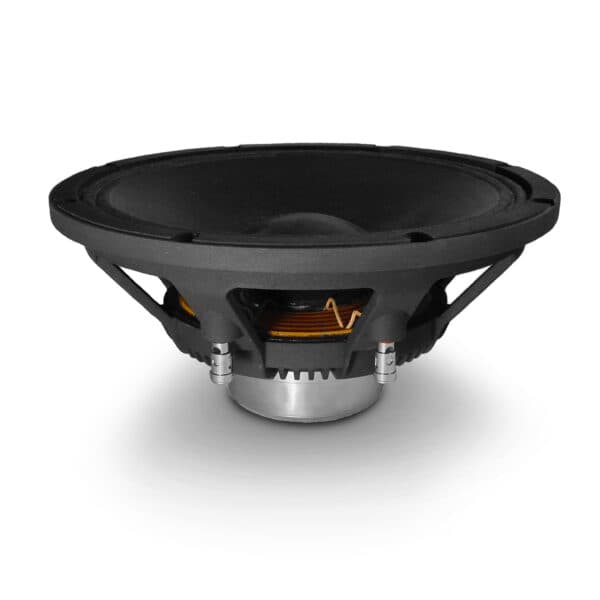

BMS12N620
£247.26Fs45 Hz −5%
Qts0.25 +4%
Vas72.7 L +26%, worse
BL20.6 T·m –
Xmax5.5 mm −15%, worse
Sensitivity96 dB –
Eighteen Sound12ND930
£248.59Fs50 Hz +6%
Qts0.21 −13%, better
Vas70 L +21%, worse
BL21.2 T·m –
Xmax6.5 mm –
Sensitivity98 dB +2.3, better
BMS12N802
£271.01Fs43 Hz −9%
Qts0.24 –
Vas65 L +12%, worse
BL22.3 T·m +8%
Xmax4.5 mm −31%, worse
Sensitivity95.2 dB −0.5

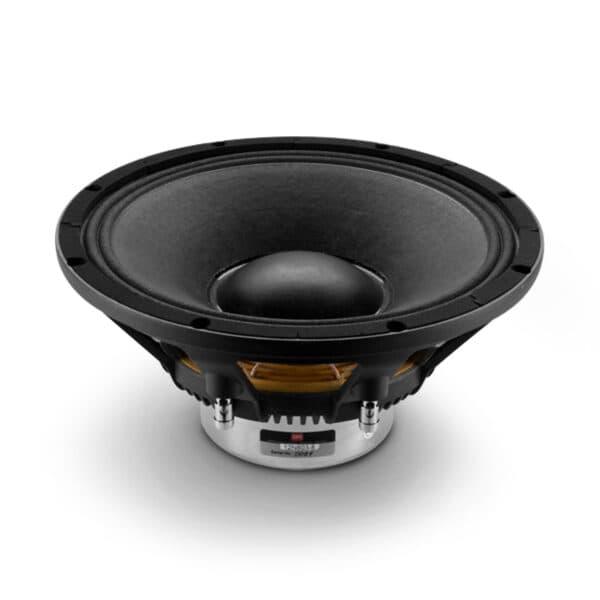

BMS12N803
