12-inch LF driver · 77 mm voice coil · 500 W
BMS 12N620 8Ω
8 Ω · 45–2500 Hz
£247.26
SteadyLean Audio · 2 in stock · All 2 offers
- Fs
- 45Hz
- Xmax
- 5.5mm
- SPL
- 96dB
- Pe
- 500W
- BL
- 20.6T·m
- Vd
- 292cm³
- Qts
- 0.25
- Vas
- 73L
BMS 12N620 is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.25, Vas 72.7 L, Xmax 5.5 mm, sensitivity 96 dB, plus 292 cm³ Vd and 172 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £247.26.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.25
- Qes
- 0.26
- Qms
- 5.1
- Vas
- 72.7L
- Re
- 5.7Ω
- Le
- 0.60mH
Motor and cone
- BL
- 20.6T·m
- Sd
- 531cm²
- Mms
- 68g
- Xmax
- 5.5mm
- Vd †
- 292cm³
- Voice coil
- 77mm
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 98dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 45–2500Hz
- EBP †
- 172 · Leans vented

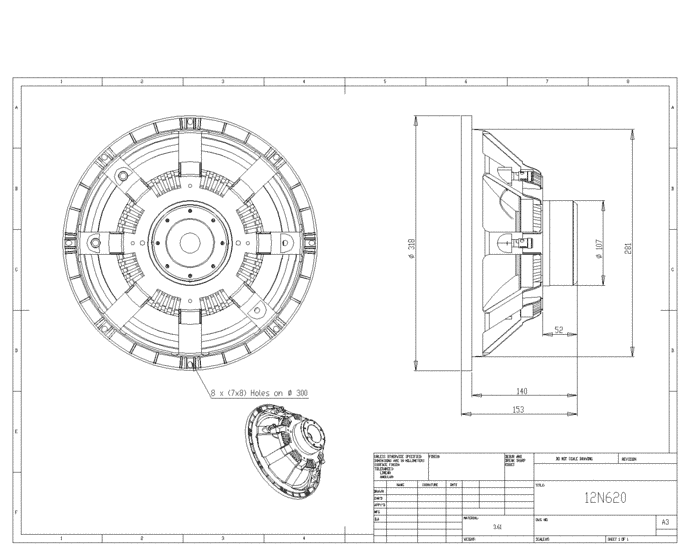

Size and mounting
- Diameter
- 318mm
- Cutout
- 284mm
- Bolt circle
- 300mm
- Depth
- 145mm
- Weight
- 3.5kg
Other published values
- Cms
- 0.18mm/N
Sensitivity shows 96.0 dB, calculated from the T/S values. BMS publishes 98.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 20.6T·m
- Fs
- 45Hz
- Le
- 0.60mH
- Re
- 5.7Ω
- Sd
- 531cm²
- Cms
- 0.18mm/N
- Mms
- 68g
- Qes
- 0.26
- Qms
- 5.1
- Qts
- 0.25
- SPL
- 96dB
- Vas
- 72.7L
- Xmax
- 5.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 45Hz
- Calculated sensitivity †
- 96dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 77mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 20.6 Tesla m
- 1. application
- Low-Middle
- 18. moving mass
- Mms 0.068 kg
- 13. dc resistance
- Re 5.7 Ohm
- 9. magnet gap depth
- 8 mm
- 17. equivalent volume
- Vas 72.7 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 45 – 2500 Hz
- 6. voice coil diameter
- 77 (3″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 44.7 Hz
- 14. mechanical q factor
- Qms 5.1
- 15. electrical q factor
- Qes 0.26
- 16. total quality factor
- Qts 0.25
- 19. mechanical complience
- Cms 0.18 mm / N
- 21. effective piston area
- Sd 0.0531 m²
- 22. max. linear excursion
- Xmax +/- 5.5 mm
- 23. voice coil inductance
- Le1k 0.6 mH
- 4. sensitivity (1 w / 1 m)
- 98 dB
- 3. power handling aes noise
- 500 W
- 8. voice coil winding depth
- 19 mm
- 11. effect. diaphragm diameter d
- 260 mm
