LF Driver12L series
Oberton
Oberton 12L300
Oberton 12L300 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 54Hz, Qts 0.25, Vas 79.6L, Xmax 3.3mm, sensitivity 98.8dB, plus 167cm³ Vd and 206 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
98.8dB
200.0dBmanufacturer; using T/S-derived value (101.2dB delta).
EBP
206
Vented alignment
Vd
167cm³
T/S Parameters
Valid
Fs54Hz
Qts0.25
Qes0.26
Qms10.0
Vas79.6L
Re5.3Ω
Le0.69mH
BL16.8Tm
Sd515cm²
Mms41g
Xmax3.3mm
SPL99dB
Power300W
Impedance8Ω
Min Impedance6.2Ω
F Low60Hz
F High5000Hz
Voice Coil64mm
Flux Density1.35T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

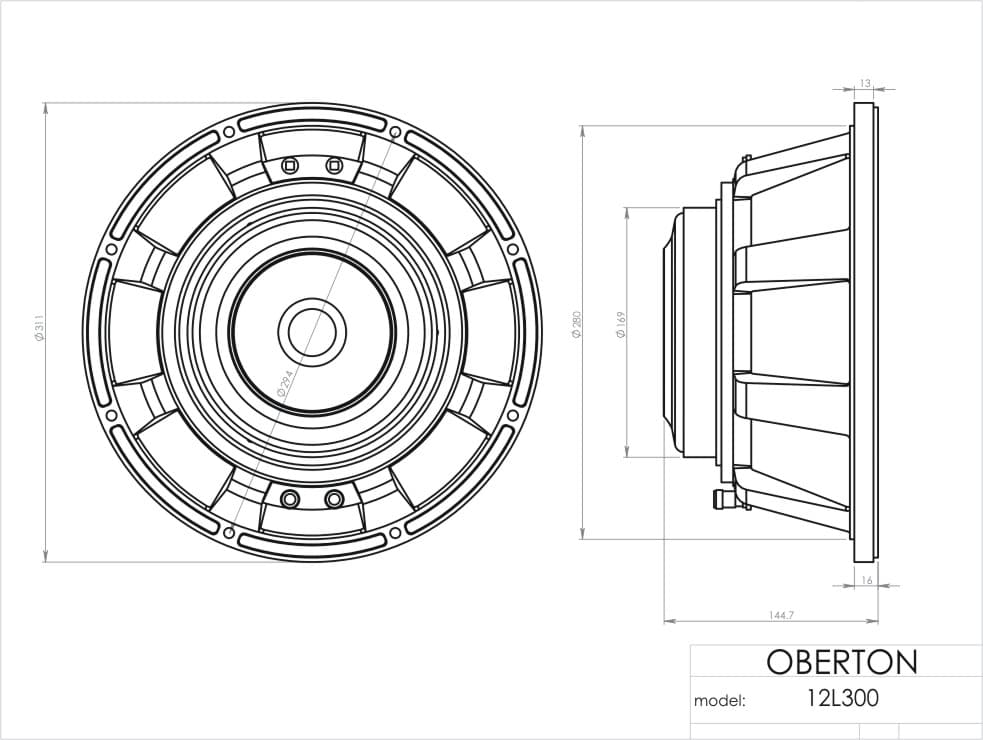

Dimensions & Physical
Weight6.8kg
Diameter311.0mm
Overall Depth144.7mm
Cutout Diameter280.0mm
Bolt Circle Diameter294.0mm
