REDCATT 123FPM 4Ω
4 Ω
No current price
- Fs
- 45Hz
- Xmax
- 2.8mm
- SPL
- 97dB
- Pe
- 300W
- BL
- 12.8T·m
- Vd
- 146cm³
- Qts
- 0.27
- Vas
- 99L
REDCATT 123FPM is a 12-inch 4 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.27, Vas 98.5 L, Xmax 2.8 mm, sensitivity 96.9 dB, plus 146 cm³ Vd and 155 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.27
- Qes
- 0.29
- Qms
- 5.0
- Vas
- 98.5L
- Re
- 3.1Ω
- Le
- 0.42mH
Motor and cone
- BL
- 12.8T·m
- Sd
- 531cm²
- Mms
- 52g
- Xmax
- 2.8mm
- Vd †
- 146cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 96.9dB
- Manufacturer sensitivity
- 97.8dB
- Power
- 300W
- Impedance
- 4Ω
- EBP †
- 155 · Leans vented
Size and mounting
- Diameter
- 320mm
- Cutout
- 282mm
- Bolt circle
- 302mm
- Weight
- 5kg
Other published values
- Xmech
- 10.75
- Power Peak
- 1200
Other dimensions
- Mounting Depth
- 127.8
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 12″
- BL
- 12.8T·m
- Fs
- 45Hz
- Le
- 0.42mH
- Re
- 3.1Ω
- Sd
- 531cm²
- Mms
- 52g
- Qes
- 0.29
- Qms
- 5.0
- Qts
- 0.27
- SPL
- 96.9dB
- Vas
- 98.5L
- Xmax
- 2.8mm
- Xmech
- 10.75
- Power
- 300W
- Impedance
- 4Ω
- Power Peak
- 1200
- Sensitivity
- 97.8dB
- Calculated sensitivity †
- 96.9dB
- Manufacturer sensitivity
- 97.8dB
- Voice coil
- 64mm
- Weight
- 5kg
- Diameter
- 320mm
- Mounting Depth
- 127.8
- Cutout
- 282mm
- Bolt circle
- 302mm
02
Compare
Same-size drivers, compared with the 123FPM. Clear differences are green when better and red when worse.
This driver123FPM
Best price
–
Fs
45 Hz
Qts
0.27
Vas
98.5 L
BL
12.8 T·m
Xmax
2.8 mm
Sensitivity
96.9 dB
Power
300 W

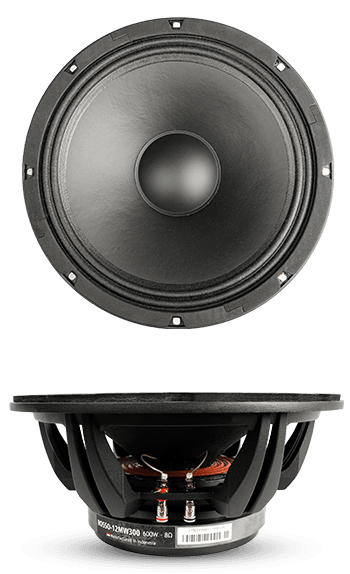

SB AudienceROSSO-12MW300
£106.55Fs48 Hz +7%
Qts0.27 –
Vas85.9 L −13%, better
BL17.4 T·m +36%, better
Xmax6.7 mm +143%, better
Sensitivity97.3 dB –

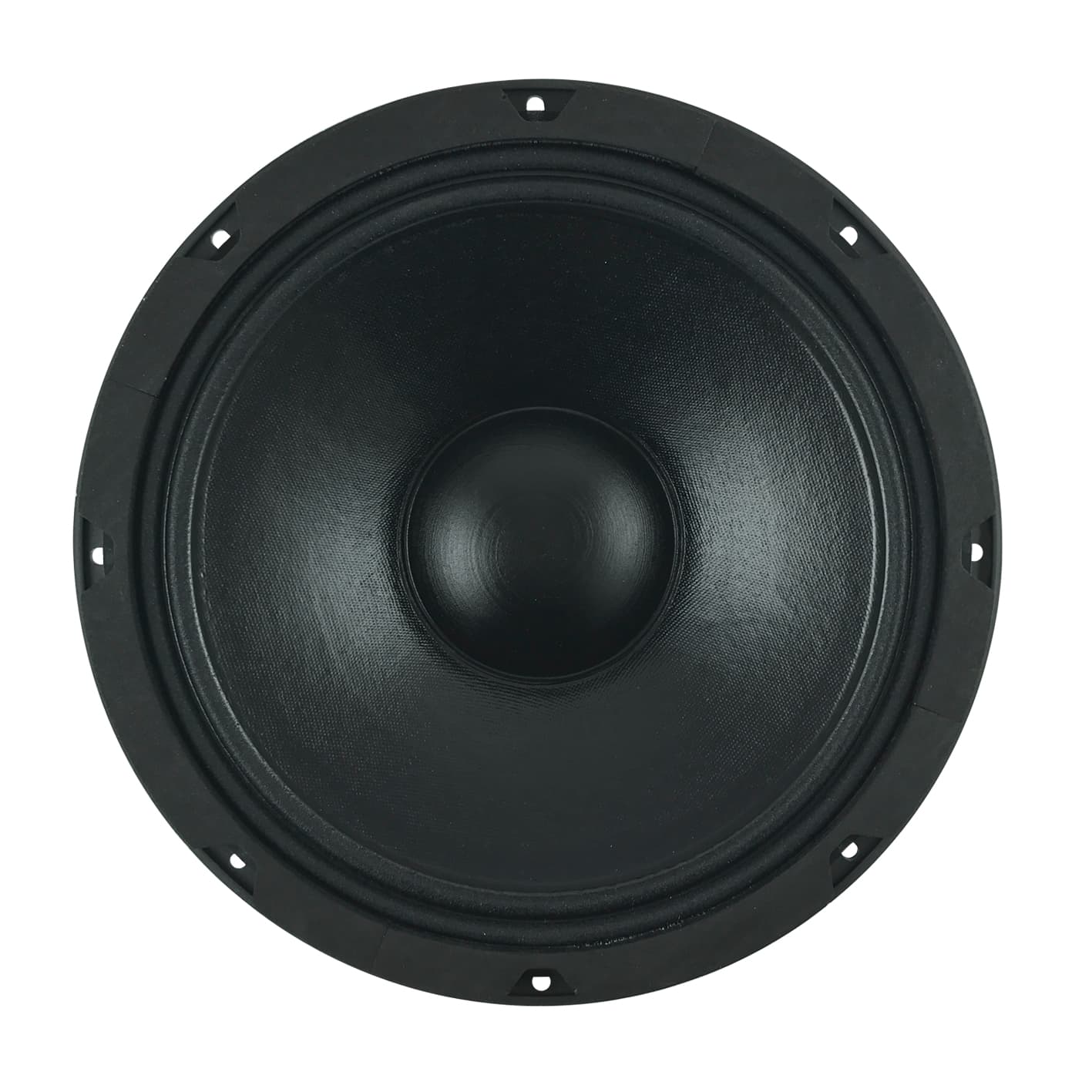

Beyma12WRS400
