Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEighteen Sound 12MB700 16Ω
LF DriverMedia
Overview
LF Driver
Eighteen Sound

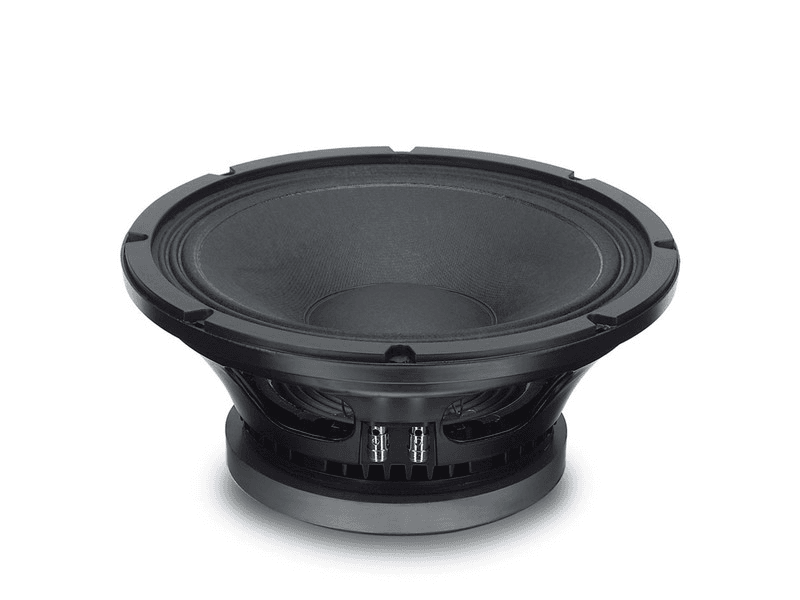

Eighteen Sound 12MB700
Eighteen Sound 12MB700 is a 12" 16 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 46Hz, Qts 0.25, Vas 100L, Xmax 4.5mm, sensitivity 97.8dB, plus 239cm³ Vd and 177 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
16Ω
RMS Power
450W
Sensitivity
97.8dB
100.5dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
177
Vented alignment
Vd
239cm³
T/S Parameters
Valid
Fs46Hz
Qts0.25
Qes0.26
Qms7.3
Vas100.0L
Re9.5Ω
Le1.84mH
BL22.1Tm
Sd531cm²
Mms46g
Xmax4.5mm
SPL98dB
Power450W
Power Nominal450W
Impedance16Ω
F Low60Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.3kg
Diameter315.0mm
Overall Depth147.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
12MB700
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
Oberton
12H4CX72
12"
Xmax4.5mm0%
Qts0.25+1%
BL19.9Tm-10%
Vas74.7L-25%
Qes0.260%
86%
Similarity
£271.01

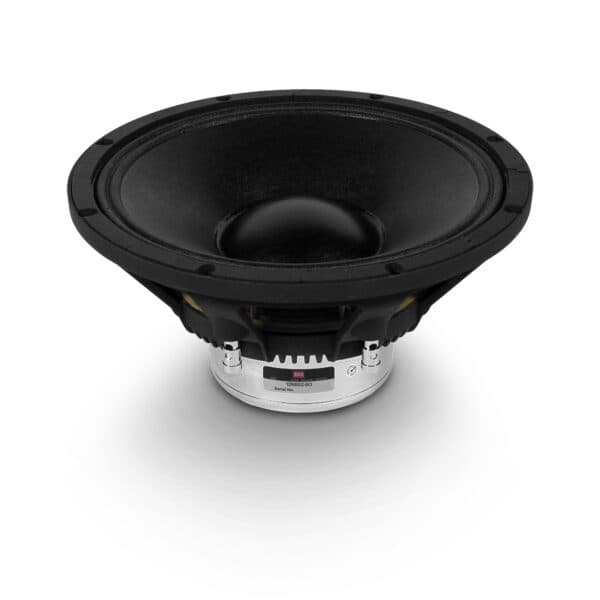

BMS
12N802
12"
Xmax4.5mm0%
Qts0.24-4%
BL22.3Tm+1%
Vas65L-35%
Qes0.25-4%
77%
Similarity
£247.26
BMS
12N620
12"
Xmax5.5mm+22%
Qts0.250%
BL20.6Tm-7%
Vas72.7L-27%
Qes0.260%
76%
Similarity
Eminence
KAPPA PRO-12A
12"
Xmax4.8mm+7%
Qts0.24-4%
BL17.3Tm-22%
Vas121L+21%
Qes0.25-4%
75%
Similarity
£140.76
Oberton
12B400
12"
Xmax5.3mm+17%
Qts0.250%
BL18.4Tm-17%
Vas74.7L-25%
Qes0.26-2%
74%
Similarity

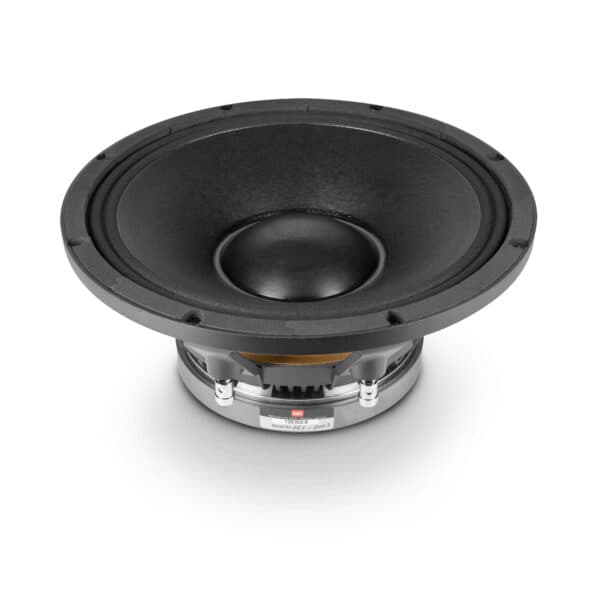

BMS
12S302
12"
Xmax4.5mm0%
Qts0.25+1%
BL15.7Tm-29%
Vas65L-35%
Qes0.27+3%
74%
Similarity
£153.54
B&C
12CLA76
12"
Xmax5.3mm+18%
Qts0.250%
BL20.2Tm-9%
Vas56L-44%
Qes0.260%
73%
Similarity
£210.18
BMS
12N610
12"
Xmax3.5mm-22%
Qts0.24-4%
BL21Tm-5%
Vas70L-30%
Qes0.25-4%
73%
Similarity
£150.85
PRV Audio
12MR1200X
12"
Xmax4.5mm0%
Qts0.21-16%
BL22Tm0%
Vas71.8L-28%
Qes0.21-19%
71%
Similarity
£151.02
B&C
12PLB76
12"
Xmax5mm+11%
Qts0.23-8%
BL18.6Tm-16%
Vas75L-25%
Qes0.24-8%
70%
Similarity
£153.26
Eighteen Sound
12MB650
12"
Xmax5.5mm+22%
Qts0.23-8%
BL19Tm-14%
Vas90L-10%
Qes0.24-8%
69%
Similarity
£365.51
BMS
12CN680
12"
Xmax5.5mm+22%
Qts0.26+4%
BL20.6Tm-7%
Vas58L-42%
Qes0.27+4%
