Eighteen Sound 12ND710 16Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /12ND710

Media

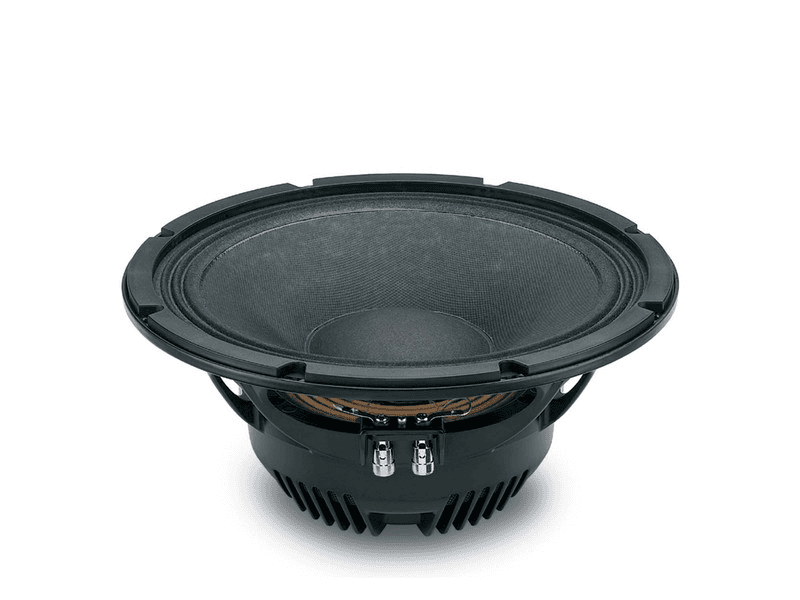

Eighteen Sound 12ND710 12 inch 16 ohm loudspeaker driver

Overview

LF Driver
Eighteen Sound

Eighteen Sound 12ND710

Eighteen Sound 12ND710 is a 12" 16 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 53Hz, Qts 0.29, Vas 85L, Xmax 5mm, sensitivity 98.1dB, plus 265cm³ Vd and 171 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
12"
Impedance
16Ω
RMS Power
450W
Sensitivity
98.1dB
101.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
171
Vented alignment
Vd
265cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
96908376701k2k5k10kHzdBfrequency response
frequency response178 ptsp2medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v2
    178 plotted pointsSource file SHA-256 4c6466995b83…Medium confidence2,570 selected pixels of 2,570
    Manufacturer datasheet, page 2

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 4c6466995b83…Medium confidence4,014 selected pixels of 4,531
    Manufacturer datasheet, page 2

T/S Parameters

Valid
Canonical
Fs53Hz
Qts0.29
Qes0.31
Qms4.0
Vas85.0L
Re9.4Ω
Le0.74mH
BL20.3Tm
Sd530cm²
Mms41g
Xmax5.0mm
SPL98dB
Power450W
Power Nominal450W
Impedance16Ω
F Low61Hz
F High5500Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight4.4kg
Diameter315.0mm
Overall Depth141.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
Eighteen Sound 12ND710 12 inch 16 ohm loudspeaker driver similar-driver reference
Reference
Eighteen Sound
12ND710
12"
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

Dayton Audio PA310-8 12 inch 8 ohm loudspeaker driver similar driver
91%
Similarity
£82.99
Dayton Audio
PA310-8
12"
Xmax5mm0%
Qts0.290%
BL18Tm-11%
Vas91.8L+8%
Qes0.3-3%
Sica 12 C 2.5 CP 12 inch 8 ohm loudspeaker driver similar driver
90%
Similarity
Sica
12 C 2.5 CP
12"
Xmax5mm0%
Qts0.3+3%
BL17.3Tm-15%
Vas84.5L-1%
Qes0.310%
Sica 12 N 3 PL 12 inch 8 ohm loudspeaker driver similar driver
81%
Similarity
£249.48
Sica
12 N 3 PL
12"
Xmax5.5mm+10%
Qts0.3+3%
BL16Tm-21%
Vas87.9L+3%
Qes0.310%
Eighteen Sound 12NCX750 12 inch 8 ohm loudspeaker driver similar driver
81%
Similarity
£426.63
Eighteen Sound
12NCX750
12"
Xmax5.5mm+10%
Qts0.290%
BL17.5Tm-14%
Vas63L-26%
Qes0.310%
Eighteen Sound 12NCX750H 12 inch 8 ohm loudspeaker driver similar driver
81%
Similarity
£444.75
Eighteen Sound
12NCX750H
12"
Xmax5.5mm+10%
Qts0.290%
BL17.5Tm-14%
Vas63L-26%
Qes0.310%
B&C 12FW64 12 inch 8 ohm loudspeaker driver similar driver
80%
Similarity
£136.93
B&C
12FW64
12"
Xmax5mm0%
Qts0.290%
BL15.5Tm-24%
Vas64L-25%
Qes0.32+3%
Oberton 12NCX 12 inch 8 ohm loudspeaker driver similar driver
80%
Similarity
Oberton
12NCX
12"
Xmax5.3mm+5%
Qts0.3+3%
BL17.2Tm-15%
Vas62.9L-26%
Qes0.310%
P.Audio 12NX-76MB 12 inch 8 ohm loudspeaker driver similar driver
79%
Similarity
P.Audio
12NX-76MB
12"
Xmax4.8mm-5%
Qts0.31+7%
BL21.4Tm+5%
Vas50.3L-41%
Qes0.310%
B&C 12CL64 12 inch 8 ohm loudspeaker driver similar driver
77%
Similarity
£79.00
B&C
12CL64
12"
Xmax4.5mm-10%
Qts0.3+3%
BL17.5Tm-14%
Vas64L-25%
Qes0.32+3%
Beyma 12WRS400 12 inch 8 ohm loudspeaker driver similar driver
77%
Similarity
£122.29
Beyma
12WRS400
12"
Xmax6.3mm+26%
Qts0.290%
BL17.4Tm-14%
Vas91L+7%
Qes0.310%
Fane COLOSSUS 12MB 12 inch 8 ohm loudspeaker driver similar driver
76%
Similarity
Fane
COLOSSUS 12MB
12"
Xmax5.5mm+10%
Qts0.29-1%
BL18.3Tm-10%
Vas56L-34%
Qes0.33+7%
PRV Audio 12MB2000FT-NDY 12 inch 8 ohm loudspeaker driver similar driver
76%
Similarity
PRV Audio
12MB2000FT-NDY
12"
Xmax6mm+20%
Qts0.3+3%
BL17.7Tm-13%
Vas71.5L-16%
Qes0.310%
