Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Not enough T/S data
Missing RMS power
Media
Overview
LF Driver
Eighteen Sound
Eighteen Sound 12NCX750
Eighteen Sound 12NCX750 is a 12" 8 ohm LF driver. The validated T/S data includes Fs 58Hz, Qts 0.29, Vas 63L, Xmax 5.5mm, sensitivity 98dB, plus 292cm³ Vd and 187 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £426.63.
Size
12"
Impedance
8Ω
Sensitivity
98.0dB
EBP
187
Vented alignment
Vd
292cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

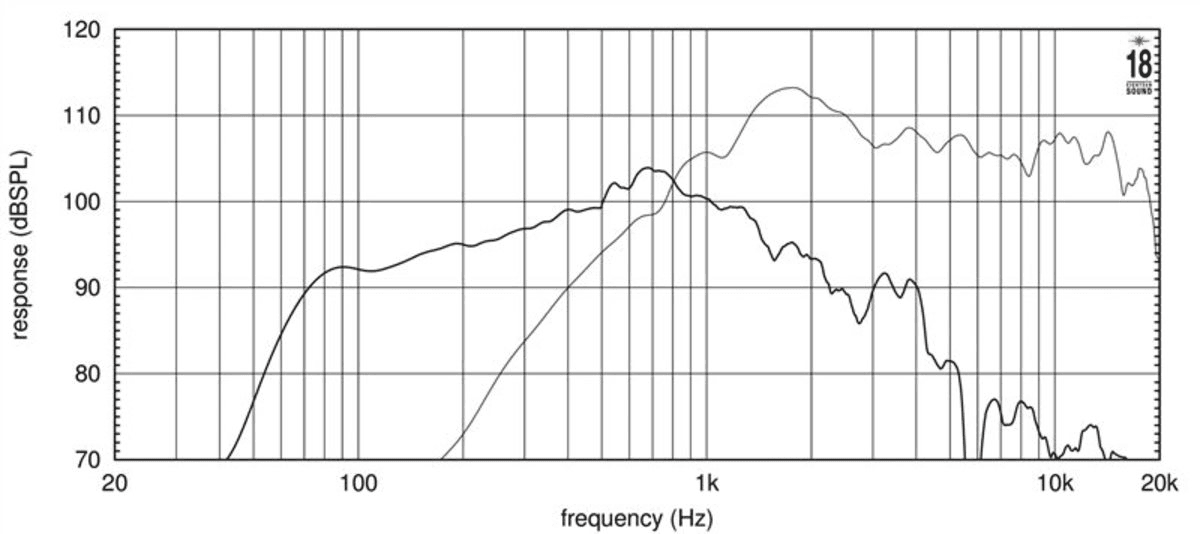

frequency response
Frequency response
240 plotted pointsMedium confidence2,042 selected pixels of 2,586 - Trace datasheet-response-trace-poc/v1

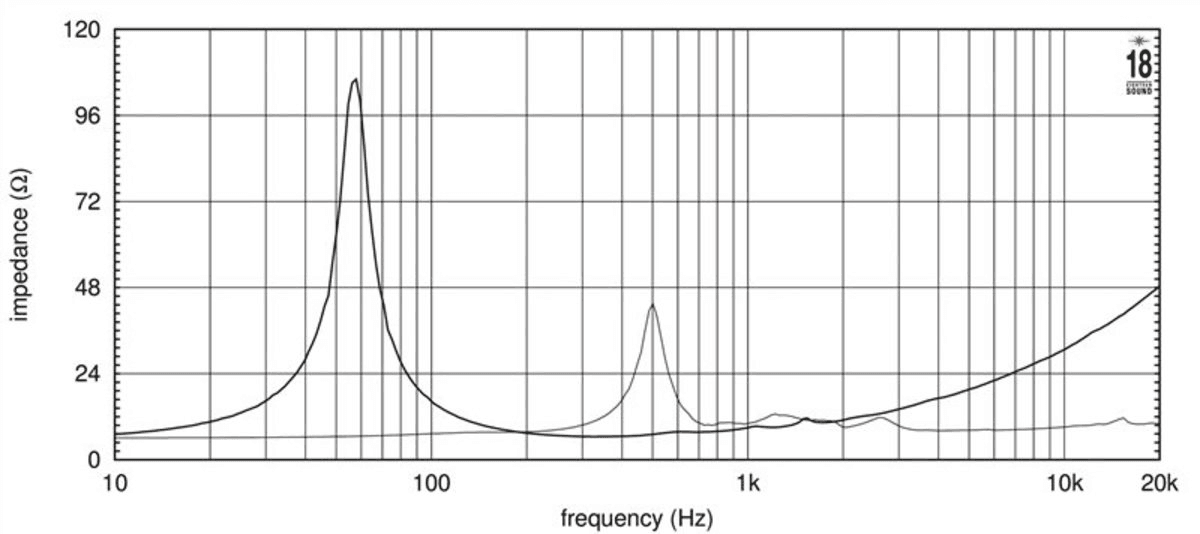

impedance
Impedance response
240 plotted pointsMedium confidence2,310 selected pixels of 2,660
T/S Parameters
Valid
Fs58Hz
Qts0.29
Qes0.31
Qms6.4
Vas63.0L
Re5.4Ω
Le0.62mH
BL17.5Tm
Sd531cm²
Mms48g
Xmax5.5mm
SPL98dB
Impedance8Ω
F Low60Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£426.63
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.5kg
Diameter310.0mm
Overall Depth148.0mm
Cutout Diameter280.0mm
Bolt Circle Diameter295.0mm
