LF Driver
Eighteen Sound

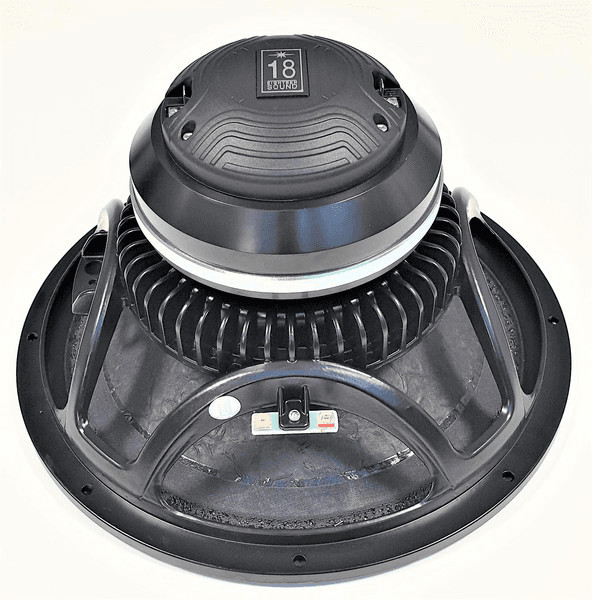

Eighteen Sound 12NCX910
Eighteen Sound 12NCX910 is a 12" 8 ohm LF driver. The validated T/S data includes Fs 57Hz, Qts 0.30, Vas 58L, Xmax 6.9mm, sensitivity 97.4dB, plus 366cm³ Vd and 184 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £436.54.
Size
12"
Impedance
8Ω
Sensitivity
97.4dB
EBP
184
Vented alignment
Vd
366cm³

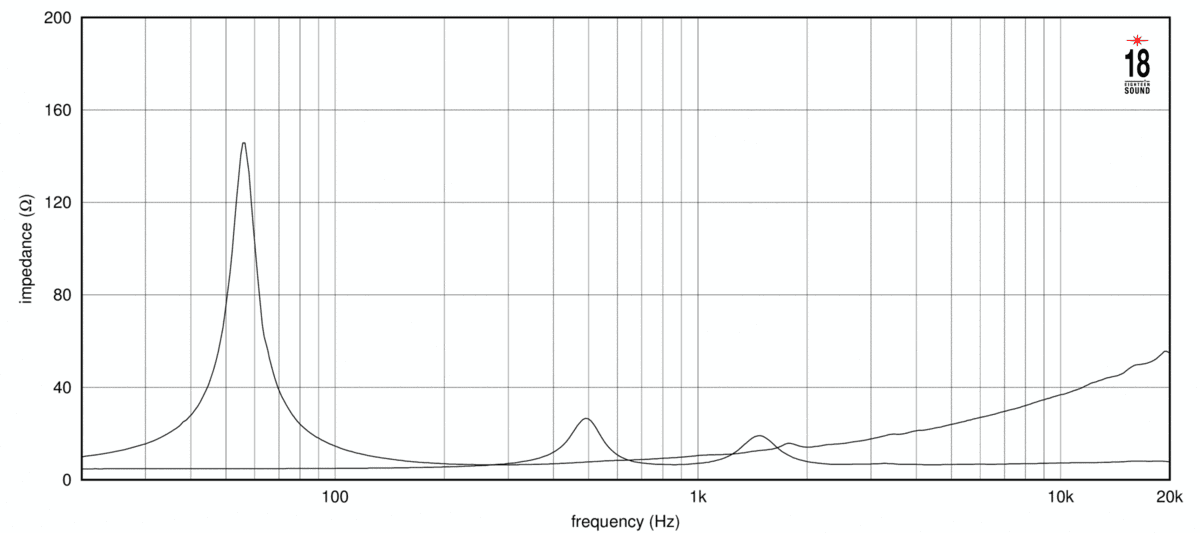

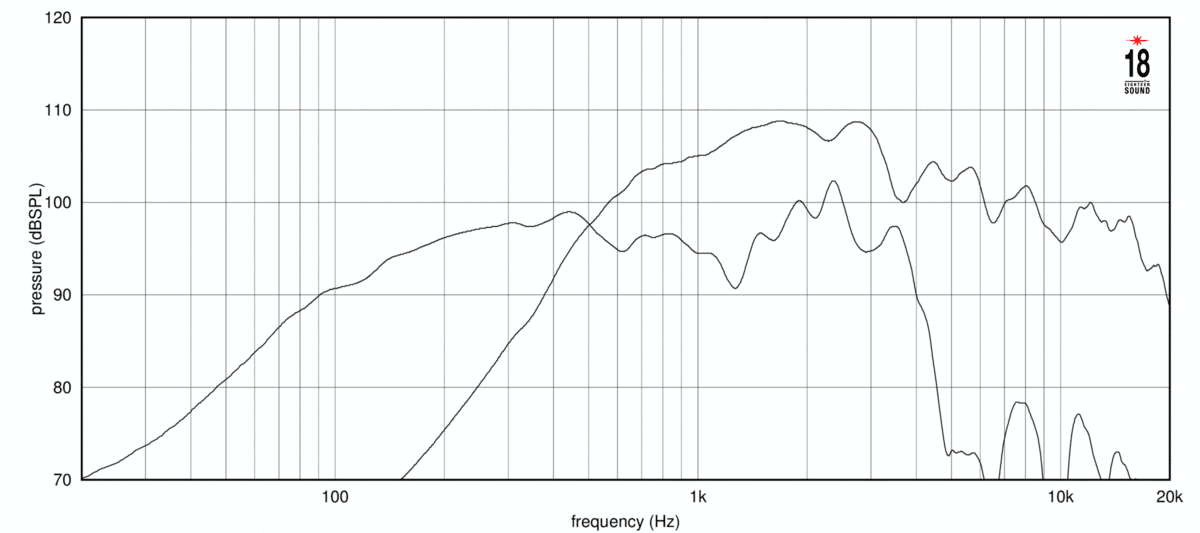

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,189 selected pixels of 1,325
T/S Parameters
Valid
Fs57Hz
Qts0.30
Qes0.31
Qms10.0
Vas58.0L
Re5.3Ω
Le0.78mH
BL18.1Tm
Sd531cm²
Mms53g
Xmax6.9mm
SPL97dB
Impedance8Ω
F Low60Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£436.54
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
Diameter310.0mm
Overall Depth210.0mm
Cutout Diameter283.0mm
Bolt Circle Diameter295.0mm
