LF DriverTSQ1230 series
Celestion
Celestion TSQ1230
Celestion TSQ1230 is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 55Hz, Qts 0.30, Vas 45.2L, Xmax 6.8mm, sensitivity 95.8dB, plus 358cm³ Vd and 175 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.8dB
98.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
175
Vented alignment
Vd
358cm³

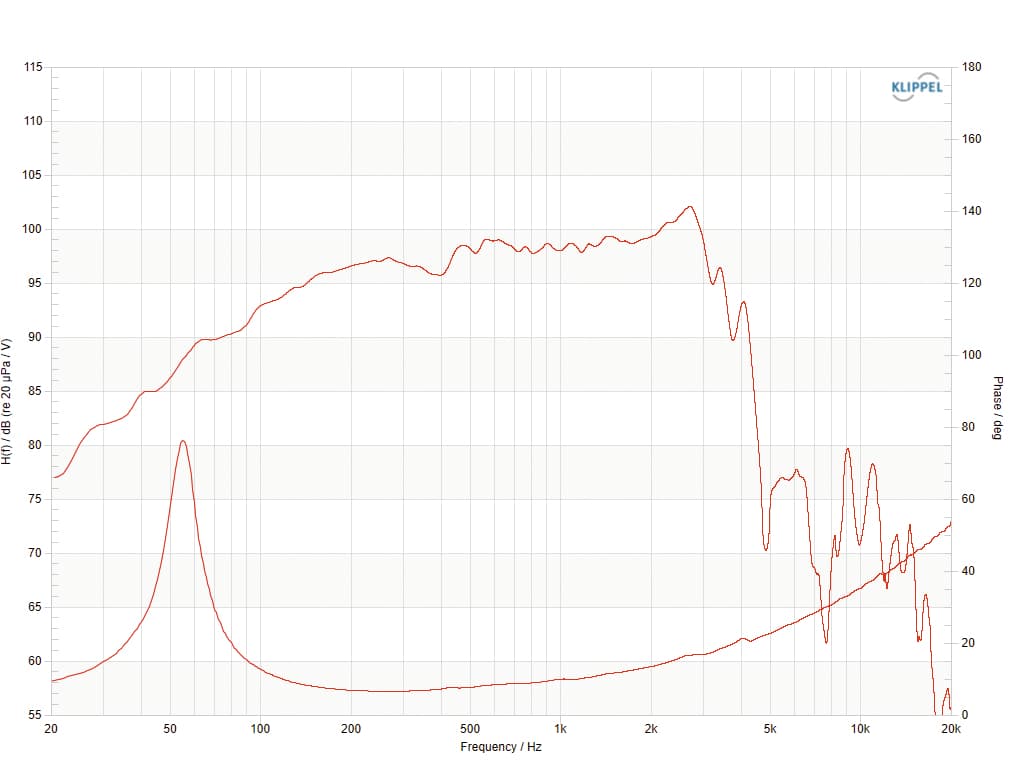

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response107 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
107 plotted pointsMedium confidence111 selected pixels of 225
T/S Parameters
Valid
Fs55Hz
Qts0.30
Qes0.32
Qms8.1
Vas45.2L
Re5.2Ω
Le0.72mH
BL20.5Tm
Sd531cm²
Mms70g
Xmax6.8mm
SPL96dB
Power700W
Impedance8Ω
Voice Coil75mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.9kg
Diameter315.0mm
Overall Depth144.9mm
Cutout Diameter282.0mm
Bolt Circle Diameter300.0mm
