Overview
LF Driver
Sica

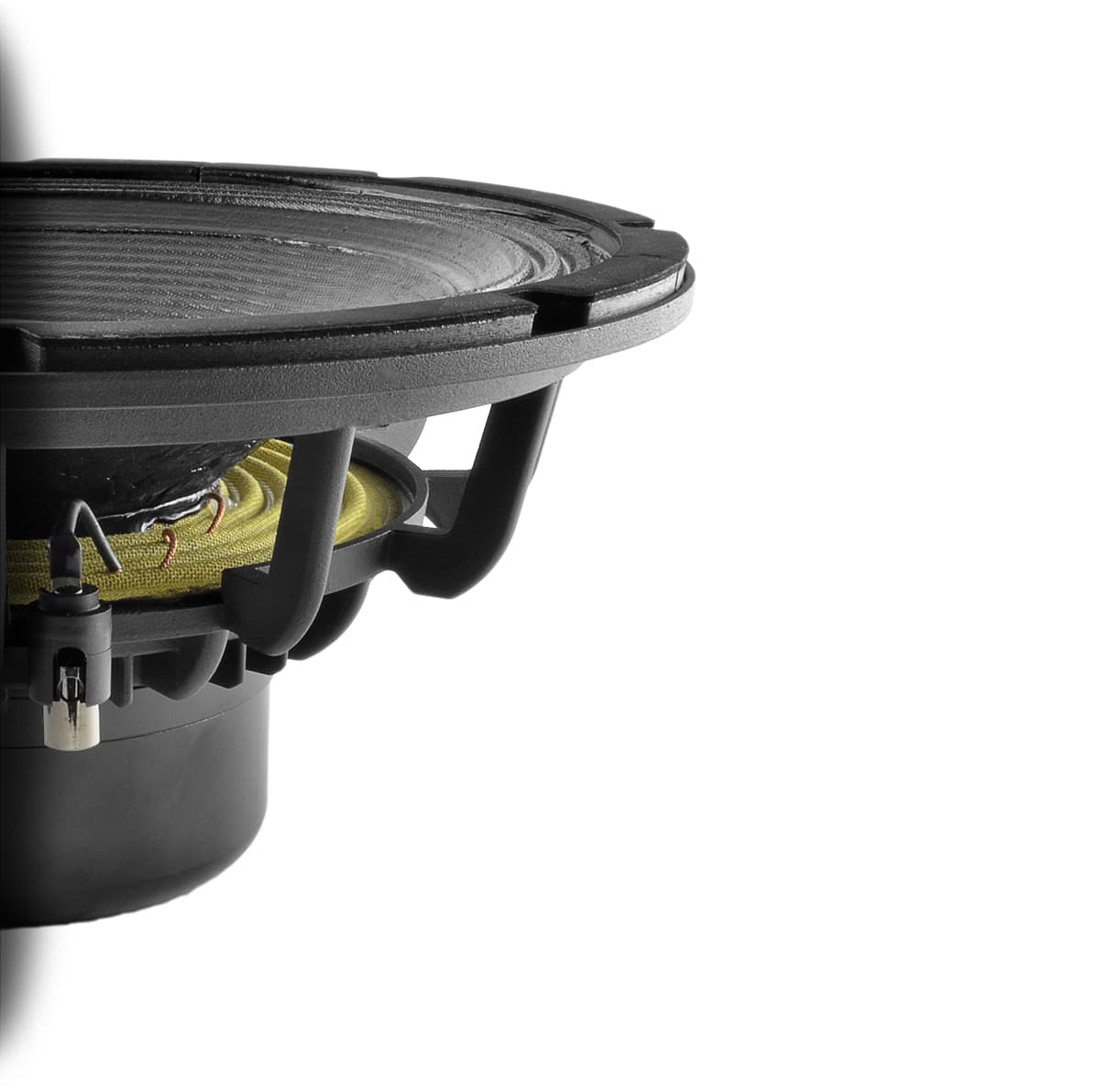

Sica 12 PNS 4
Sica 12 PNS 4 is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 42Hz, Qts 0.31, Vas 50.2L, Xmax 9.5mm, sensitivity 92.6dB, plus 504cm³ Vd and 130 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
92.6dB
94.5dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
130
Vented alignment
Vd
504cm³
T/S Parameters
Valid
Fs42Hz
Qts0.31
Qes0.32
Qms12.6
Vas50.2L
Re5.2Ω
Le1.30mH
BL22.3Tm
Sd531cm²
Mms116g
Xmax9.5mm
SPL93dB
Power1000W
Impedance8Ω
Voice Coil100mm
Flux Density1.21T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.6kg
Diameter320.0mm
Overall Depth154.9mm
Cutout Diameter284.0mm
Bolt Circle Diameter301.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
12 PNS 4
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
Oberton
12NB601
12"
Xmax8.8mm-8%
Qts0.3-2%
BL22.9Tm+3%
Vas38.7L-23%
Qes0.32-2%
85%
Similarity

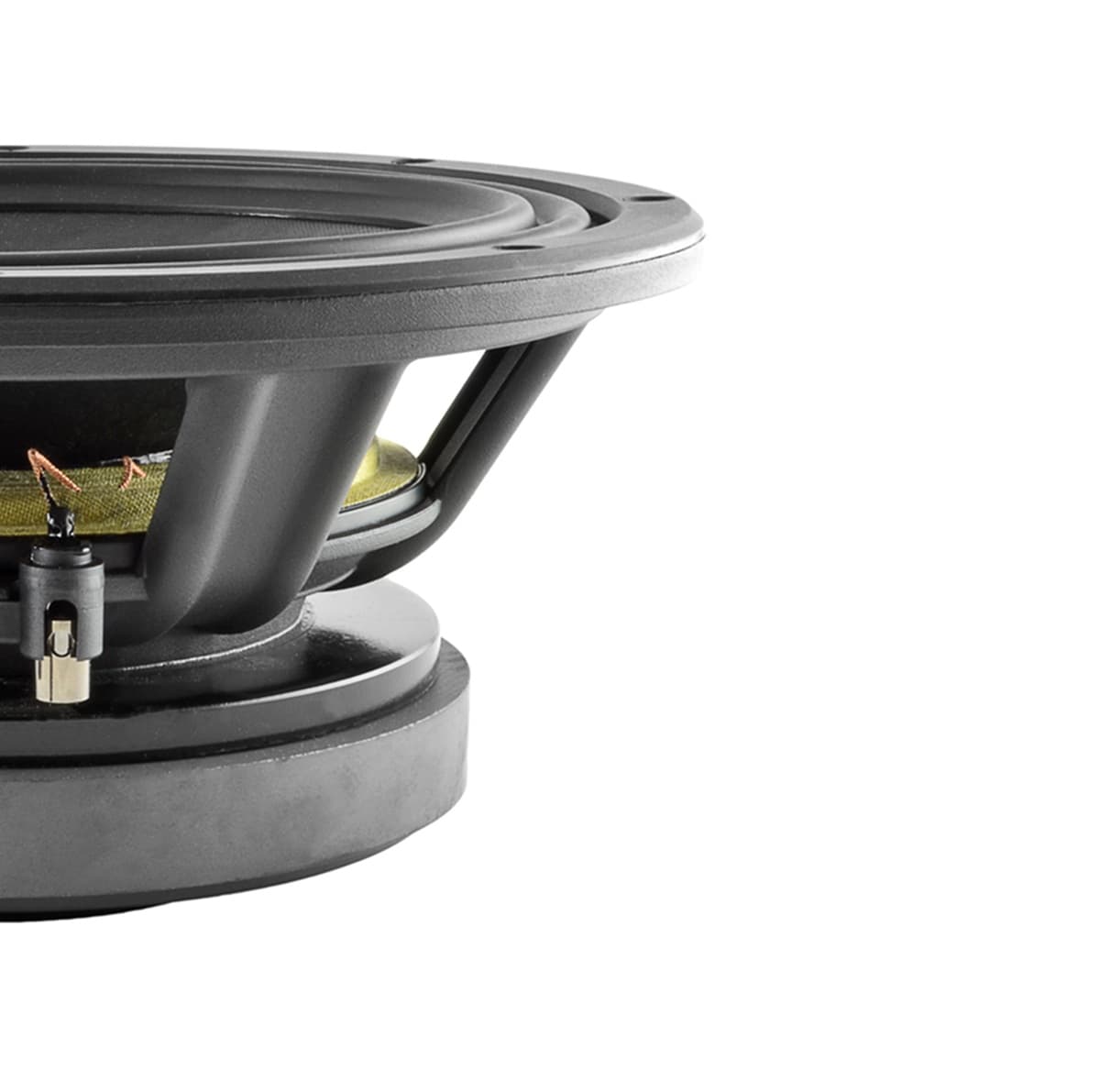

Sica
