B&C 12BG100 8 Ohm woofer specs & UK prices | bits

B&C 12BG100 8Ω

LF Driver

Watch price Simulate

Media

B&C 12BG100 12 inch 8 ohm loudspeaker driver view 1

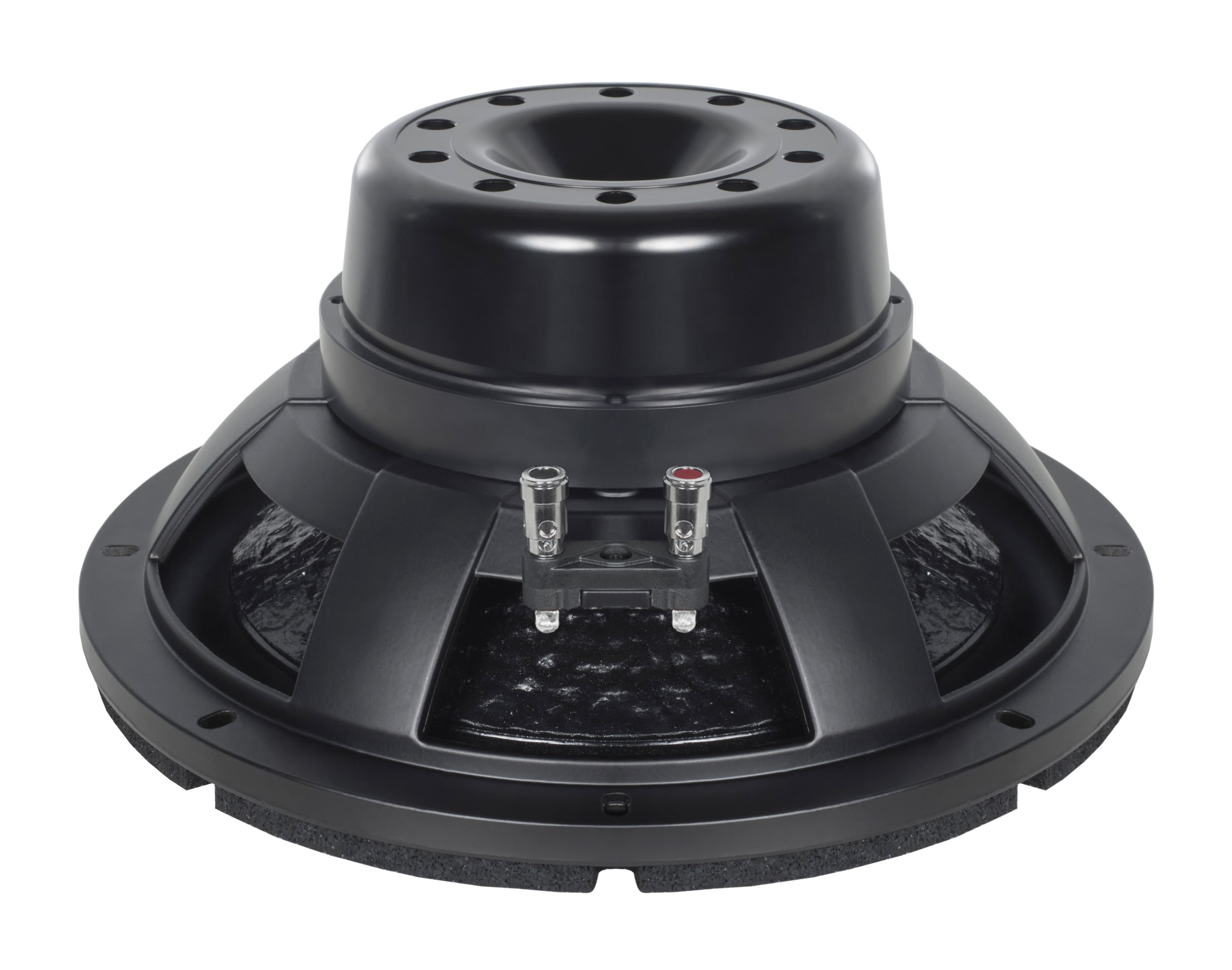

B&C 12BG100 12 inch 8 ohm loudspeaker driver view 2

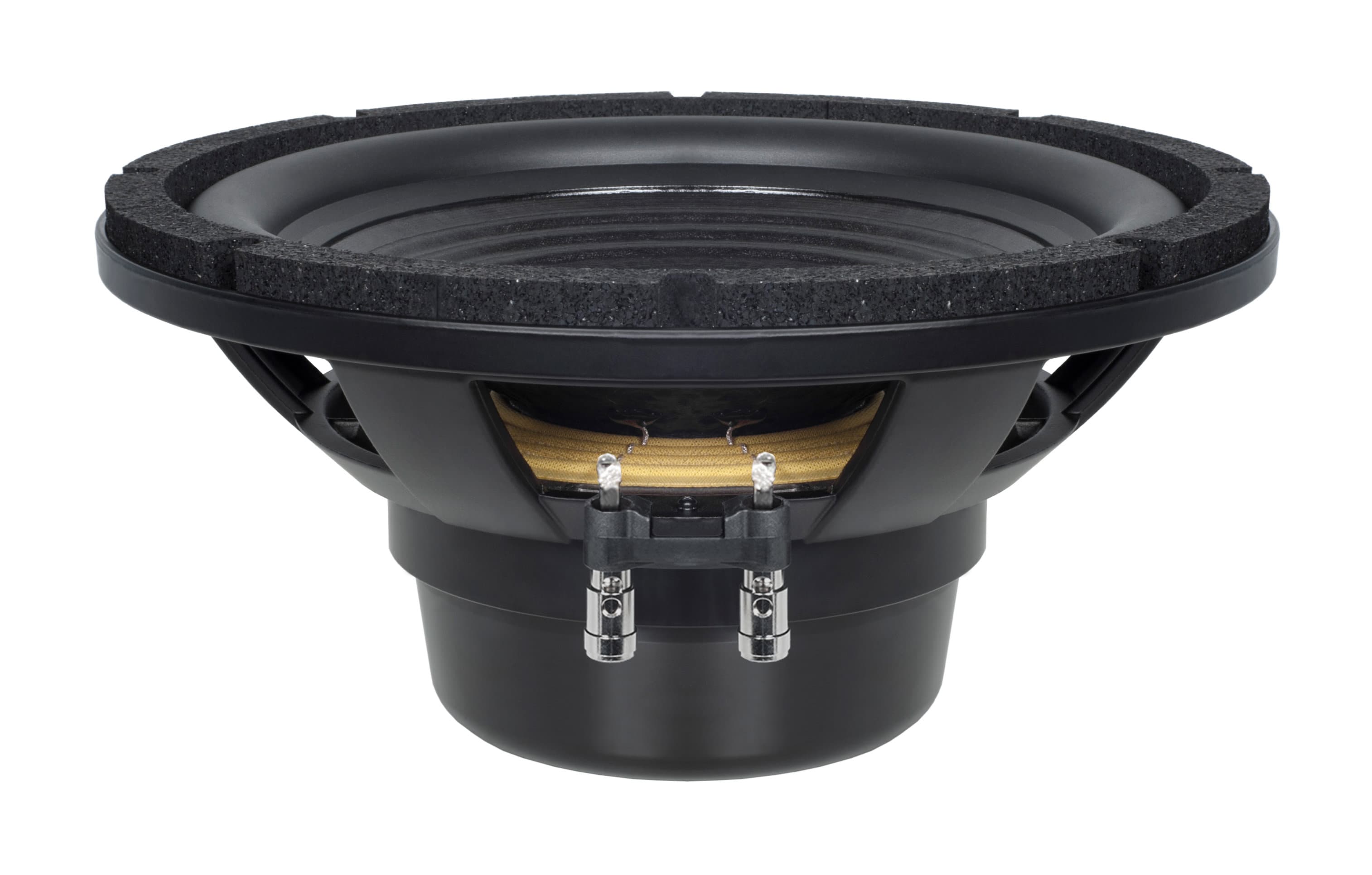

B&C 12BG100 12 inch 8 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF Driver12BG series

B&C 12BG100

B&C 12BG100 is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 39Hz, Qts 0.33, Vas 41L, Xmax 10.5mm, sensitivity 90.4dB, plus 548cm³ Vd and 111 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £281.76.

Size

12"

Impedance

8Ω

RMS Power

1000W

Sensitivity

90.4dB

93.0dBmanufacturer; using T/S-derived value (2.6dB delta).

EBP

111

Vented alignment

V_d

548cm³

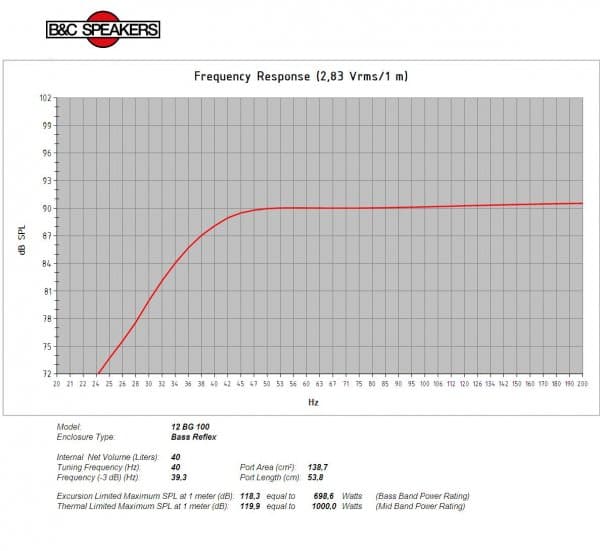

Frequency response

Manufacturer-provided response plots and related charts.

2 images

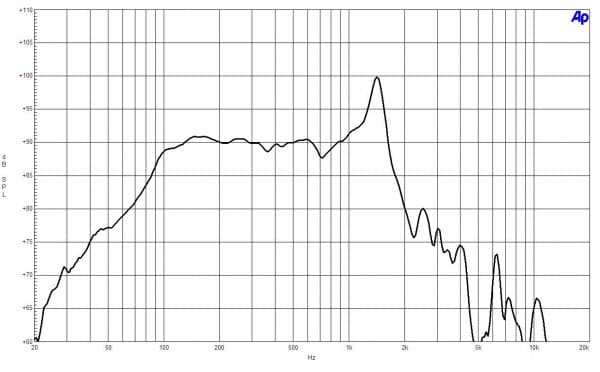

B&C 12BG100 response graph 1

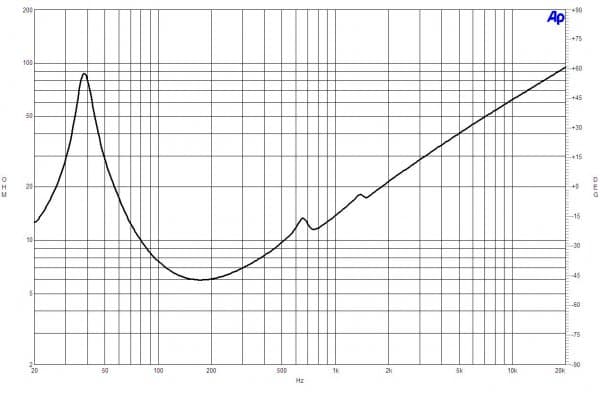

B&C 12BG100 response graph 2

T/S Parameters

Valid

Canonical

Fs39Hz

Qts0.33

Qes0.35

Qms6.8

Vas41.0L

Re5.1Ω

Le1.60mH

BL23.0Tm

Sd522cm²

Mms152g

Xmax10.5mm

SPL90dB

Power1000W

Power Nominal1000W

Impedance8Ω

Min Impedance5.8Ω

F Low40Hz

F High1000Hz

Voice Coil100mm

Flux Density1.15T

What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

£281.76

inc VAT·Vendor hidden

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight8.8kg

Diameter319.0mm

Overall Depth137.0mm

Cutout Diameter281.0mm

Bolt Circle Diameter299.0mm

Additional Manufacturer Specs

Bl23 Tm

Fs39 Hz

Le1.6 mH

Re5.1 Ω

Sd522 cm² (80.9 in²)

Ebp111 Hz

Mms152 g

Qes0.35

Qms6.8

Qts0.33

Vas41 dm³ (1.45 ft³)

η00.7 %

ConeRCK12BG1008

Xmax10.5 mm

Xvar14 mm

SpiderDouble Silicone

Cone ShapeRadial

Pole DesignT-Pole

Winding Depth27 mm (1.05 in)

Surround ShapeRoll

Former MaterialGlass Fibre

Magnet MaterialNeodymium Inside Slug

Nominal Diameter320 mm (12 in)

Winding MaterialCopper

Magnetic Gap Depth11 mm (0.43 in)

Recommended Tuning40 Hz

Bolt Circle Diameter299 mm (11.8 in)

Recommended Enclosure40 dm³ (1.41 ft³)

Woofer Cone TreatmentTWP Waterproof Both Sides

Baffle Cutout Diameter281 mm (11.1 in)

Flange And Gasket Thickness13 mm (0.5 in)

Air Volume Occupied By Driver2.7 dm³ (0.09 ft³)

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

B&C 12BG100 12 inch 8 ohm loudspeaker driver similar-driver reference

Reference

B&C

12BG100

12"

Best current price

£281.76

Compare on

Matches sit inside every range. Size stays fixed automatically.

Q_ts

Q_es

V_as

L

X_max

mm

BL

Tm

5 active T/S params, plus size.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

Beyma 12MCS500 12 inch 8 ohm loudspeaker driver similar driver

52% cheaper£135.46

B&C 12PLB100 12 inch 8 ohm loudspeaker driver similar driver

49% cheaper£143.50

B&C 12FW88 12 inch 8 ohm loudspeaker driver similar driver

42% cheaper£163.69

FaitalPRO 12RS550 12 inch 8 ohm loudspeaker driver similar driver

39% cheaper£172.96

FaitalPRO 12HP1010 12 inch 8 ohm loudspeaker driver similar driver

32% cheaper£191.59

B&C 12PS100 12 inch 8 ohm loudspeaker driver similar driver

31% cheaper£194.77

CIARE 12.00SW 12 inch 4 ohm loudspeaker driver similar driver

29% cheaper£199.00

B&C 12TBX100 12 inch 8 ohm loudspeaker driver similar driver

26% cheaper£209.86

Beyma 12LEX1000FE 12 inch 8 ohm loudspeaker driver similar driver

24% cheaper£214.66

B&C 12NDL88 12 inch 8 ohm loudspeaker driver similar driver

22% cheaper£218.40

Celestion FTR12-4080HDX 12 inch 8 ohm loudspeaker driver similar driver

22% cheaper£219.00

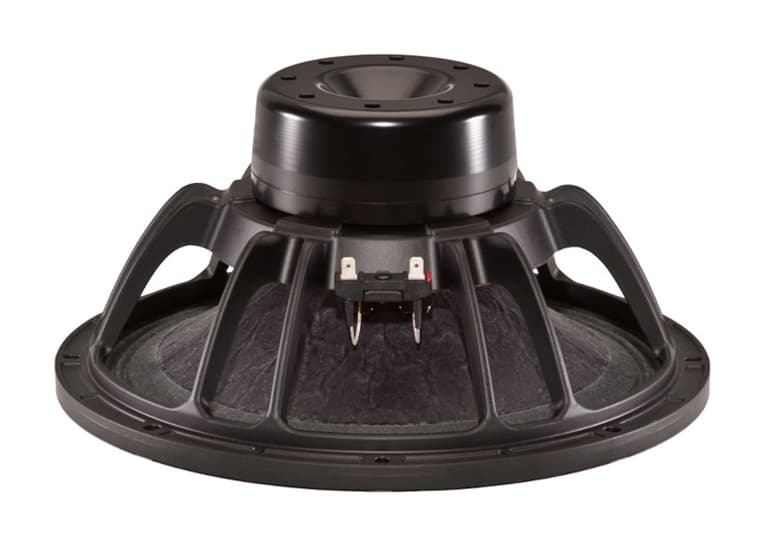

B&C 12NDL88 12 inch 16 ohm loudspeaker driver similar driver
