Overview
LF Driver
PRV Audio
PRV Audio 12W2000
PRV Audio 12W2000 is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 53Hz, Qts 0.37, Vas 38.7L, Xmax 10.3mm, sensitivity 93.9dB, plus 609cm³ Vd and 141 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
93.9dB
EBP
141
Vented alignment
Vd
609cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs53Hz
Qts0.37
Qes0.38
Qms12.3
Vas38.7L
Re5.1Ω
Le1.50mH
BL22.6Tm
Sd594cm²
Mms113g
Xmax10.3mm
SPL94dB
Power1000W
Impedance8Ω
F Low50Hz
F High2200Hz
Xover60Hz
Voice Coil100mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight14.3kg
Diameter315.0mm
Overall Depth163.7mm
Cutout Diameter283.4mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
12W2000
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
£227.46
B&C
12FG100
12"
Xmax10.3mm0%
Qts0.36-3%
BL21.4Tm-6%
Vas49L+27%
Qes0.39+3%
86%
Similarity
£281.76
B&C
12BG100
12"
Xmax10.5mm+2%
Qts0.33-11%
BL23Tm+2%
Vas41L+6%
Qes0.35-8%
84%
Similarity
£172.96
FaitalPRO
12RS550
12"
Xmax9.3mm-10%
Qts0.370%
BL20.5Tm-9%
Vas45.4L+17%
Qes0.39+3%
82%
Similarity
PRV Audio
12W1600
12"
Xmax10.5mm+2%
Qts0.39+5%
BL20.4Tm-10%
Vas47L+21%
Qes0.4+5%
80%
Similarity
Beyma
112LX60V28
12"
Xmax9mm-12%
Qts0.38+3%
BL20Tm-12%
Vas43L+11%
Qes0.4+5%
80%
Similarity
£228.40
Eighteen Sound
12NW530
12"
Xmax8mm-22%
Qts0.370%
BL19.7Tm-13%
Vas36L-7%
Qes0.380%
78%
Similarity
£143.50
B&C
12PLB100
12"
Xmax9mm-12%
Qts0.370%
BL18.4Tm-19%
Vas47L+21%
Qes0.380%
77%
Similarity
£250.08
B&C
12BG76
12"
Xmax9.5mm-7%
Qts0.41+11%
BL22.7Tm0%
Vas32L-17%
Qes0.44+16%
72%
Similarity

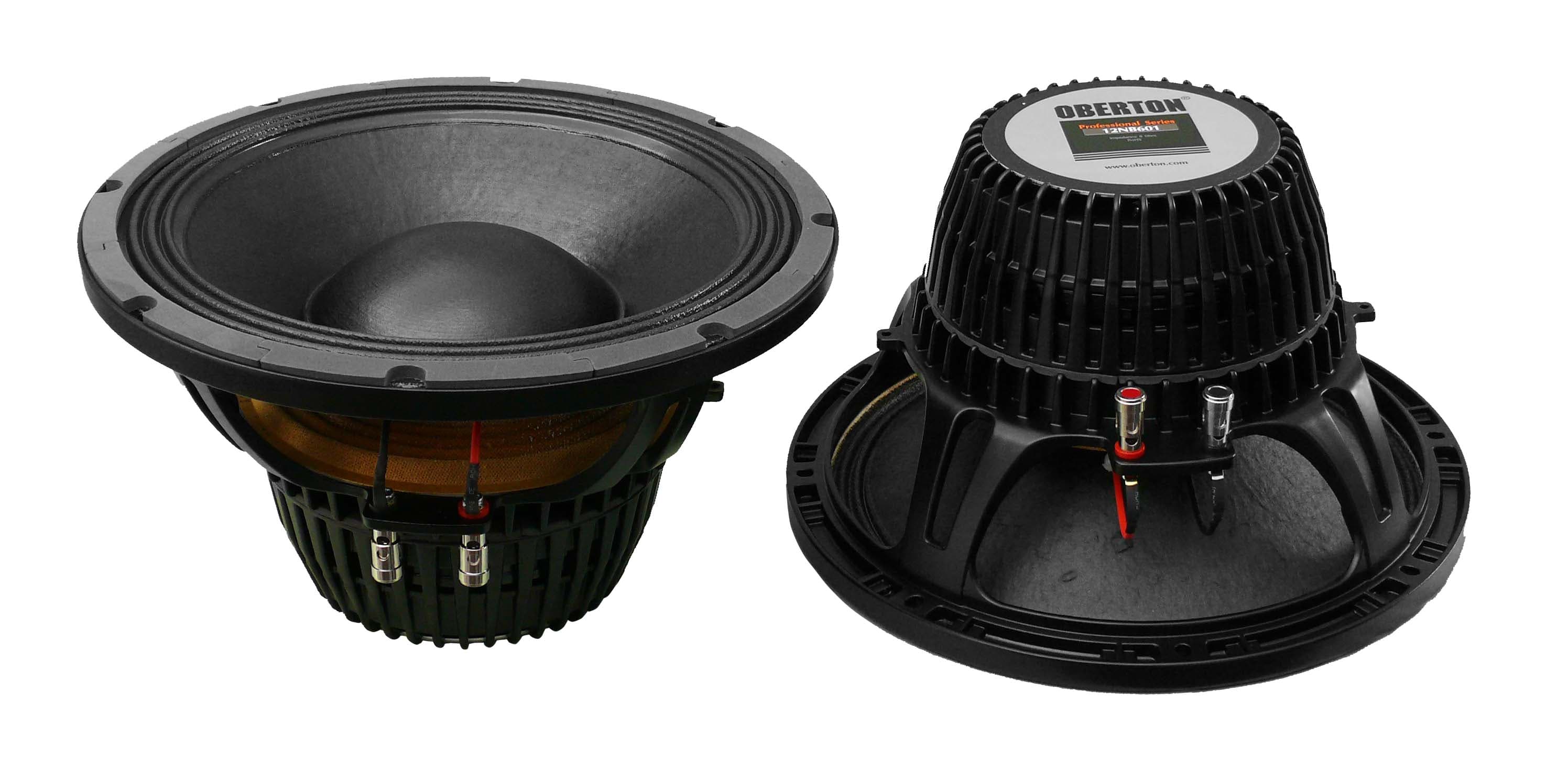

Oberton
