LF Driver
Eighteen Sound
Eighteen Sound 12NW530
Eighteen Sound 12NW530 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 55Hz, Qts 0.37, Vas 36L, Xmax 8mm, sensitivity 94dB, plus 424cm³ Vd and 145 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £228.40.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
94.0dB
96.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
145
Vented alignment
Vd
424cm³

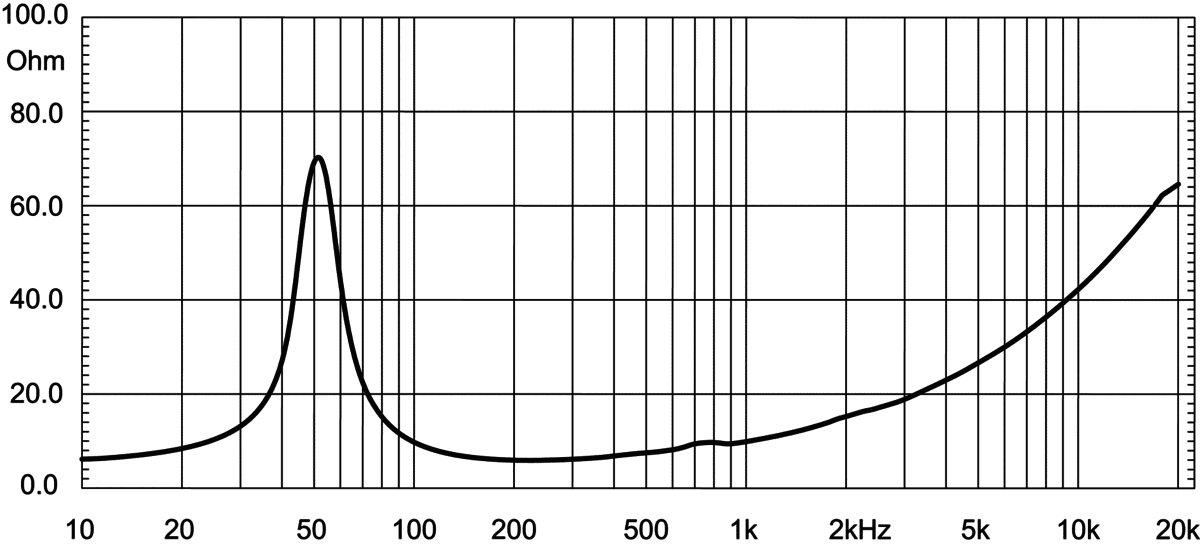

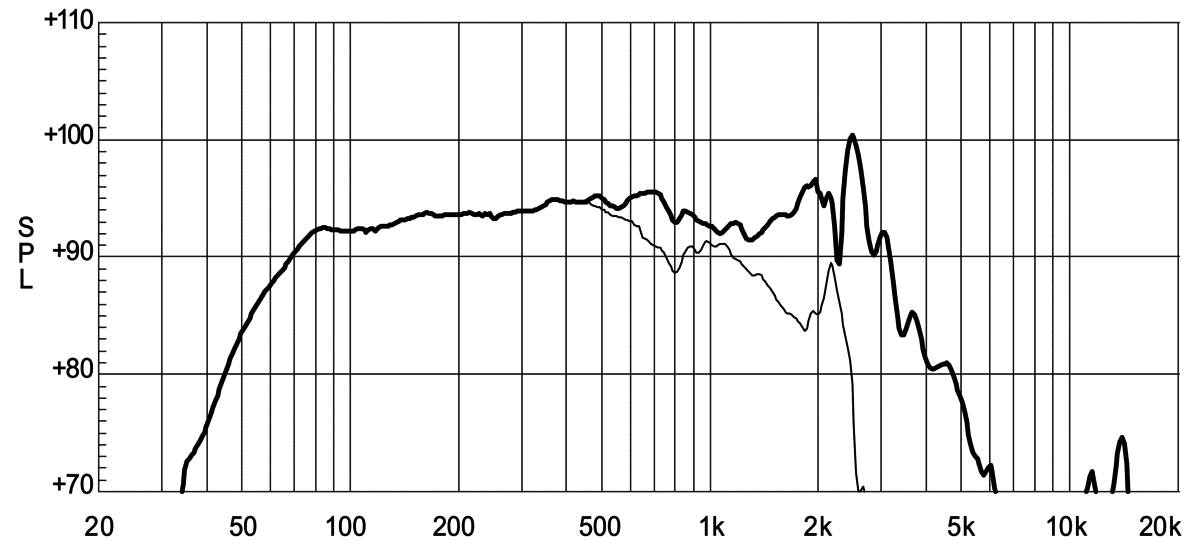

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,312 selected pixels of 1,312
T/S Parameters
Valid
Fs55Hz
Qts0.37
Qes0.38
Qms9.7
Vas36.0L
Re4.9Ω
Le0.90mH
BL19.7Tm
Sd530cm²
Mms93g
Xmax8.0mm
SPL94dB
Power500W
Power Nominal500W
Impedance8Ω
F Low48Hz
F High3200Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£228.40
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter315.0mm
Overall Depth136.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm
