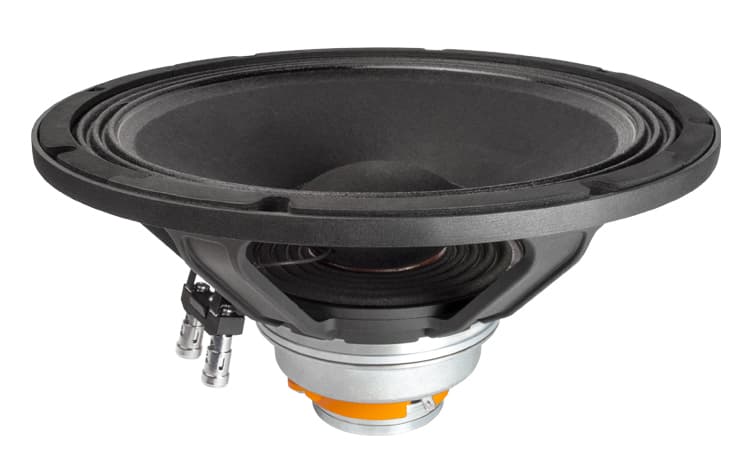

FaitalPRO 12HX240
FaitalPRO 12HX240 is a 12" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 56Hz, Qts 0.37, Vas 61.1L, Xmax 7.4mm, sensitivity 96.5dB, plus 397cm³ Vd and 147 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £308.45.
Size
12"
Impedance
8Ω
RMS Power
250W
Sensitivity
96.5dB
EBP
147
Vented alignment
Vd
397cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees164 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
164 plotted pointsMedium confidence459 selected pixels of 1,130 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,422 selected pixels of 2,519
T/S Parameters
Valid
Fs56Hz
Qts0.37
Qes0.38
Qms11.3
Vas61.1L
Re5.3Ω
Le0.45mH
BL16.0Tm
Sd539cm²
Mms54g
Xmax7.4mm
SPL97dB
Power250W
Impedance8Ω
F Low55Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£308.45
inc VAT
Back order
Best current price
Updated 11 Sept 2026
bluearan
£308.45
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.2kg
Diameter316.0mm
Overall Depth162.0mm
Cutout Diameter280.0mm
Bolt Circle Diameter298.5mm
