Overview
LF DriverOMEGA PRO series
Eminence

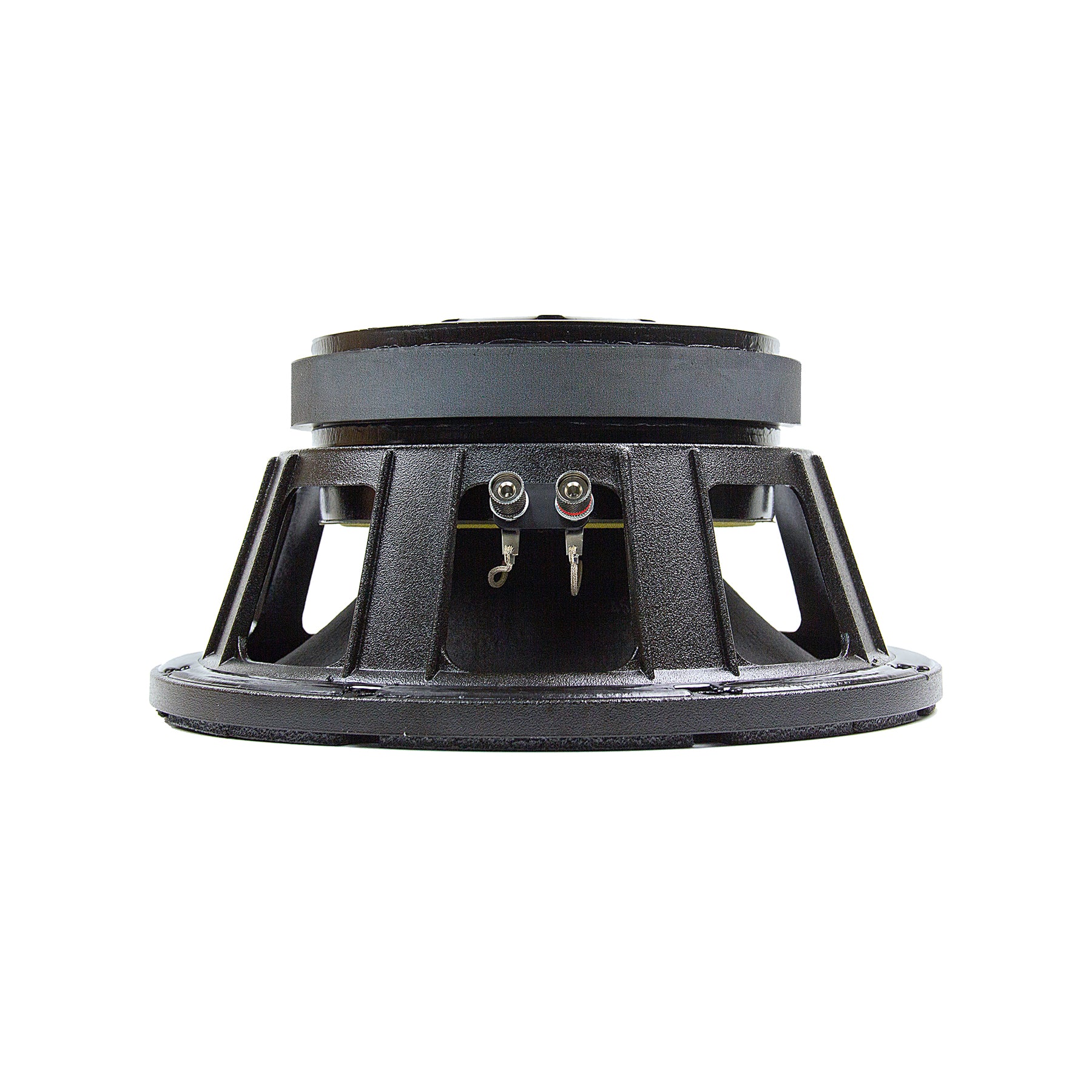

Eminence OMEGA PRO-12-2KW-8
Eminence OMEGA PRO-12-2KW-8 is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 48Hz, Qts 0.39, Vas 49.5L, Xmax 7.1mm, sensitivity 93.4dB, plus 387cm³ Vd and 120 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £172.25.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
93.4dB
EBP
120
Vented alignment
Vd
387cm³
T/S Parameters
Valid
Fs48Hz
Qts0.39
Qes0.40
Qms14.9
Vas49.5L
Re6.0Ω
Le1.13mH
BL20.4Tm
Sd545cm²
Mms92g
Xmax7.1mm
SPL93dB
Power1000W
Impedance8Ω
F Low42Hz
F High1000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£172.25
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.9kg
Diameter314.5mm
Overall Depth153.4mm
Cutout Diameter280.9mm
Bolt Circle Diameter297.2mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
OMEGA PRO-12-2KW-8
12"
Best current price
£172.25
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
39%
Similarity
54% cheaper£80.00
CIARE
FXI12
12"
Lower price
Xmax5mm-30%
Qts0.44+13%
BL13.9Tm-32%
Vas70L+41%
Qes0.49+22%
56%
Similarity
46% cheaper£93.62
Celestion
TF1225E
12"
Lower price
Xmax5.3mm-26%
Qts0.33-15%
BL17.7Tm-13%
Vas67.7L+37%
Qes0.37-8%
75%
Similarity
21% cheaper£135.46
Beyma
12MCS500
12"
Lower price
Xmax8mm+13%
Qts0.36-8%
BL17.6Tm-14%
Vas57L+15%
Qes0.38-5%
64%
Similarity
19% cheaper£140.00
Celestion
FTR12-3070C
12"
Lower price
Xmax5.5mm-23%
Qts0.32-18%
BL18.6Tm-9%
Vas43.7L-12%
Qes0.36-10%
76%
Similarity
17% cheaper£142.23
PRV Audio
12MR2000
12"
Lower price
Xmax6.6mm-7%
Qts0.33-15%
BL21.3Tm+4%
Vas52.5L+6%
Qes0.34-15%
73%
Similarity
17% cheaper£143.50
B&C
12PLB100
12"
Lower price
Xmax9mm+27%
Qts0.37-5%
BL18.4Tm-10%
Vas47L-5%
Qes0.38-5%
85%
Similarity
16% cheaper£145.00
Celestion
CF1230BMB
12"
Lower price
Xmax7mm-1%
Qts0.38-2%
BL18.4Tm-10%
Vas60.7L+22%
Qes0.42+4%
73%
Similarity
5% cheaper£163.69
B&C
12FW88
12"
Lower price
Xmax8mm+13%
Qts0.33-15%
BL19.5Tm-4%
Vas45.7L-8%
Qes0.35-13%
78%
Similarity
4% more£179.00
Eighteen Sound
12W700
12"
Higher price
Xmax6.5mm-8%
Qts0.36-8%
BL17.7Tm-13%
Vas55L+11%
Qes0.37-8%
89%
Similarity
4% more£179.95
SB Audience
NERO-12MWN700D
12"
Higher price
Xmax7.3mm+3%
Qts0.38-3%
BL17.9Tm-12%
Vas52.5L+6%
Qes0.40%
73%
Similarity
17% more£202.15
PRV Audio
12MR2000-NDY
12"
Higher price
Xmax6.2mm-13%
Qts0.34-13%
BL22.8Tm+12%
Vas48.2L-3%
Qes0.35-13%
61%
Similarity
24% more£213.97
Lavoce
CAF123.00T
12"
Higher price
Xmax6mm-15%
Qts0.36-8%
BL15.2Tm-25%
Vas71.4L+44%
Qes0.39-3%
