Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespFaitalPRO 12RS550 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverRS series
FaitalPRO

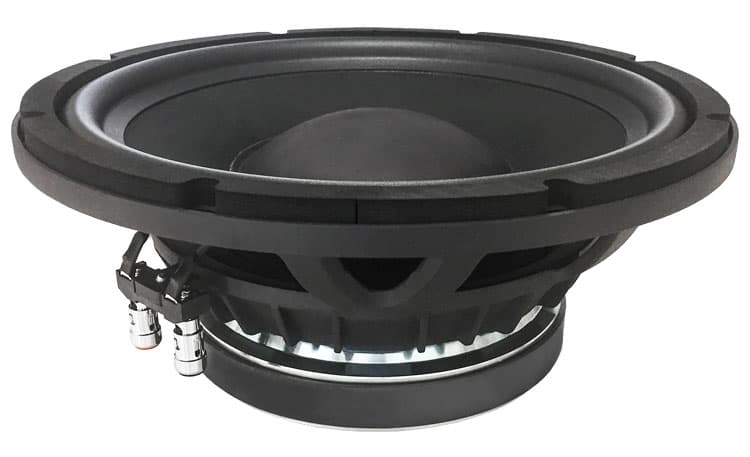

FaitalPRO 12RS550
FaitalPRO 12RS550 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 42Hz, Qts 0.37, Vas 45.4L, Xmax 9.3mm, sensitivity 91.4dB, plus 488cm³ Vd and 108 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £172.96.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
91.4dB
93.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
108
Vented alignment
Vd
488cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees235 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
235 plotted pointsMedium confidence912 selected pixels of 1,187 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,235 selected pixels of 1,235 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,492 selected pixels of 1,492
T/S Parameters
Valid
Fs42Hz
Qts0.37
Qes0.39
Qms6.9
Vas45.4L
Re5.1Ω
Le1.50mH
BL20.5Tm
Sd528cm²
Mms123g
Xmax9.3mm
SPL91dB
Power500W
Impedance8Ω
F Low45Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£172.96
inc VAT
Back order
Best current price
Updated 11 Sept 2026
bluearan
£172.96
inc VAT·approx 3 months
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.1kg
Diameter316.0mm
Overall Depth145.1mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.5mm
