LF Driver12FW series
B&C

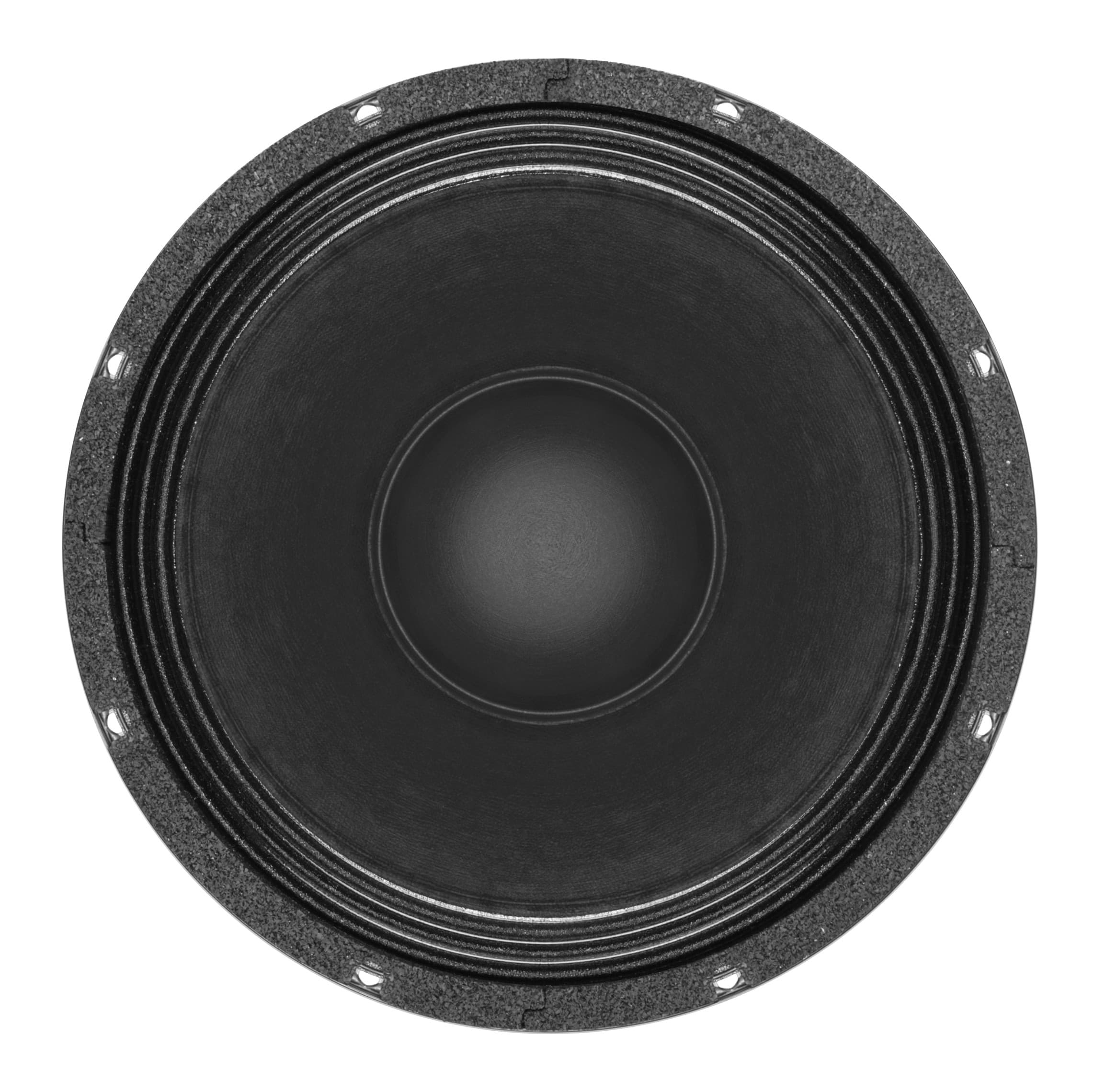

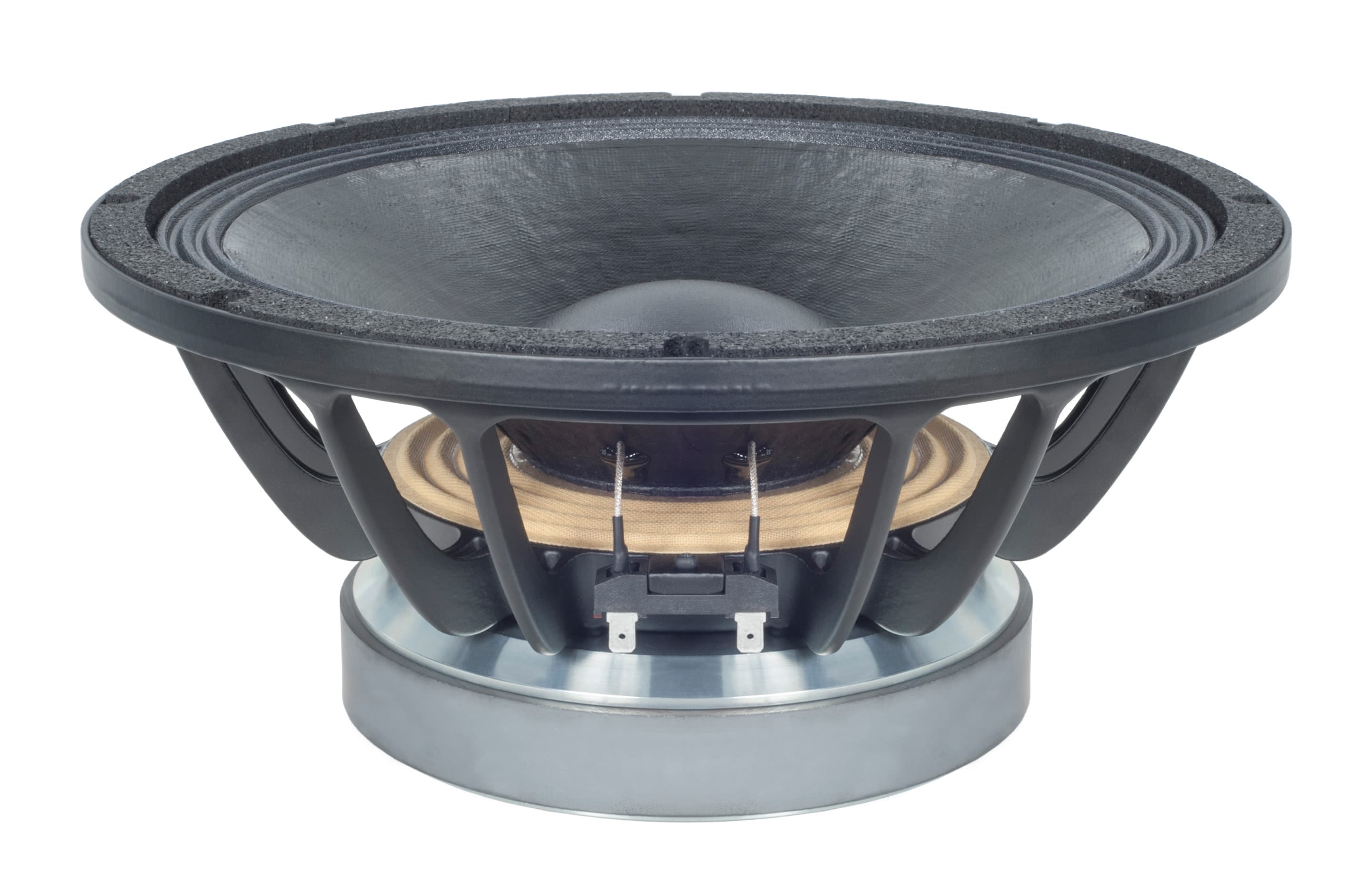

B&C 12FW88
B&C 12FW88 is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 53Hz, Qts 0.33, Vas 45.7L, Xmax 8mm, sensitivity 94.9dB, plus 425cm³ Vd and 151 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £163.69.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
94.9dB
97.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
151
Vented alignment
Vd
425cm³

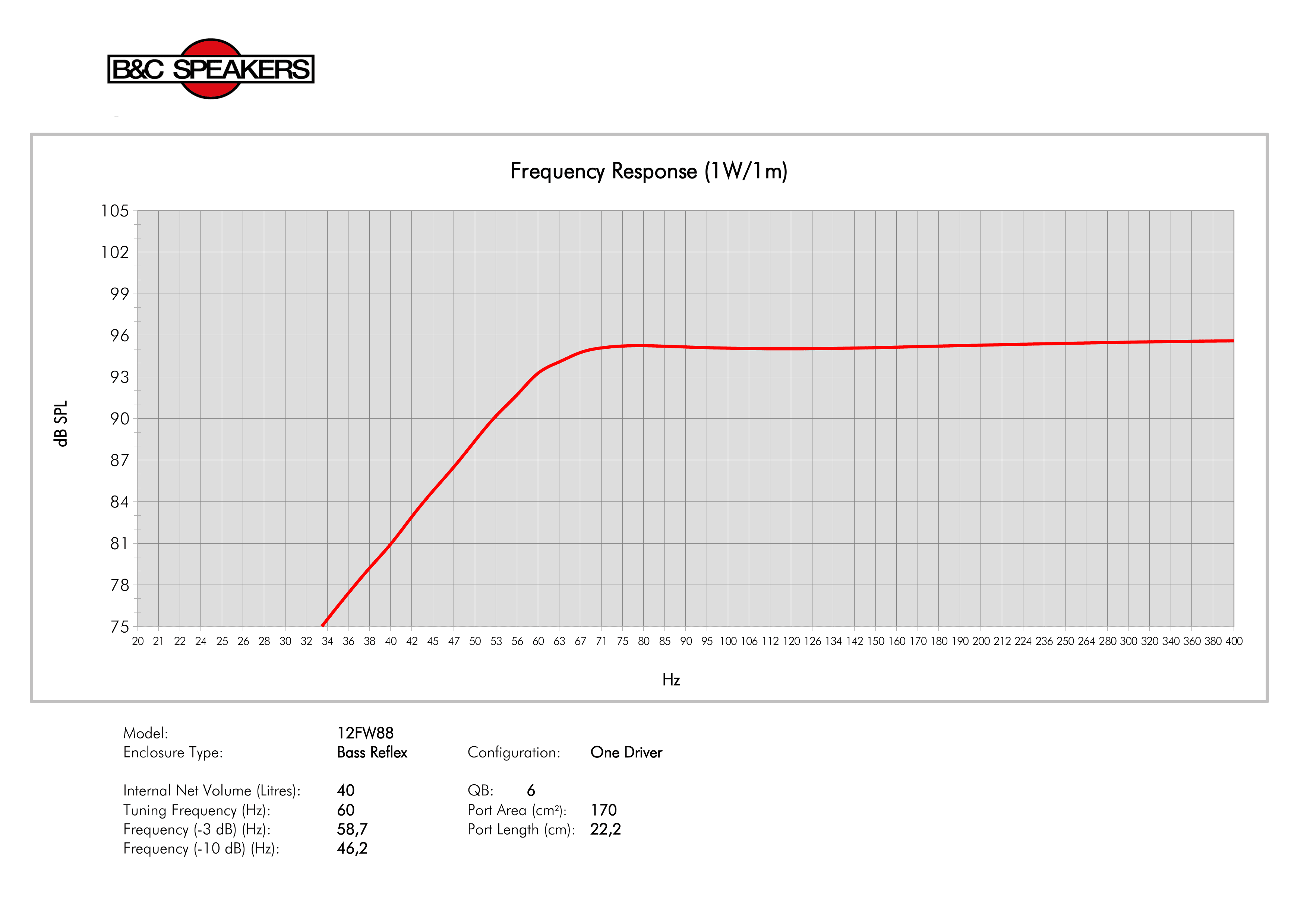

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs53Hz
Qts0.33
Qes0.35
Qms7.7
Vas45.7L
Re5.1Ω
Le0.90mH
BL19.5Tm
Sd531cm²
Mms76g
Xmax8.0mm
SPL95dB
Power700W
Power Nominal700W
Impedance8Ω
Min Impedance6.3Ω
F Low50Hz
F High3000Hz
Voice Coil88mm
Flux Density1.04T
Pricing & availability
Price definitionsPrice movement
Best current price
£163.69
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.3kg
Diameter315.0mm
Overall Depth145.0mm
Cutout Diameter285.0mm
Bolt Circle Diameter298.0mm
Additional Manufacturer Specs
Bl19.5 Tm
Fs53 Hz
Le0.9 mH
Re5.1 Ω
Sd531 cm² (82.31 in²)
Ebp151 Hz
Mms76.4 g
Qes0.35
Qms7.7
Qts0.33
Vas45.7 dm³ (1.61 ft³)
η02.05 %
ConeRCK12FW888
Xmax8 mm
Xvar8.6 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth21.5 mm (0.85 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter320 mm (12 in)
Winding MaterialAluminium
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning65 Hz
Bolt Circle Diameter298 mm (11.73 in)
Recommended Enclosure40 dm³ (1.41 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter285 mm (11.22 in)
Flange And Gasket Thickness12 mm (0.49 in)
Air Volume Occupied By Driver2.5 dm³ (0.09 ft³)
