LF Driver
BMS
BMS 12N630
BMS 12N630 is a 12" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 29Hz, Qts 0.33, Vas 85.5L, Xmax 8mm, sensitivity 89.6dB, plus 398cm³ Vd and 82 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
600W
Sensitivity
89.6dB
96.0dBmanufacturer; using T/S-derived value (6.4dB delta).
EBP
82
Either alignment
Vd
398cm³
T/S Parameters
Valid
Fs29Hz
Qts0.33
Qes0.35
Qms6.2
Vas85.5L
Re6.0Ω
Le0.68mH
BL19.8Tm
Sd498cm²
Mms127g
Xmax8.0mm
SPL90dB
Power600W
Impedance8Ω
F Low25Hz
F High300Hz
Voice Coil76mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

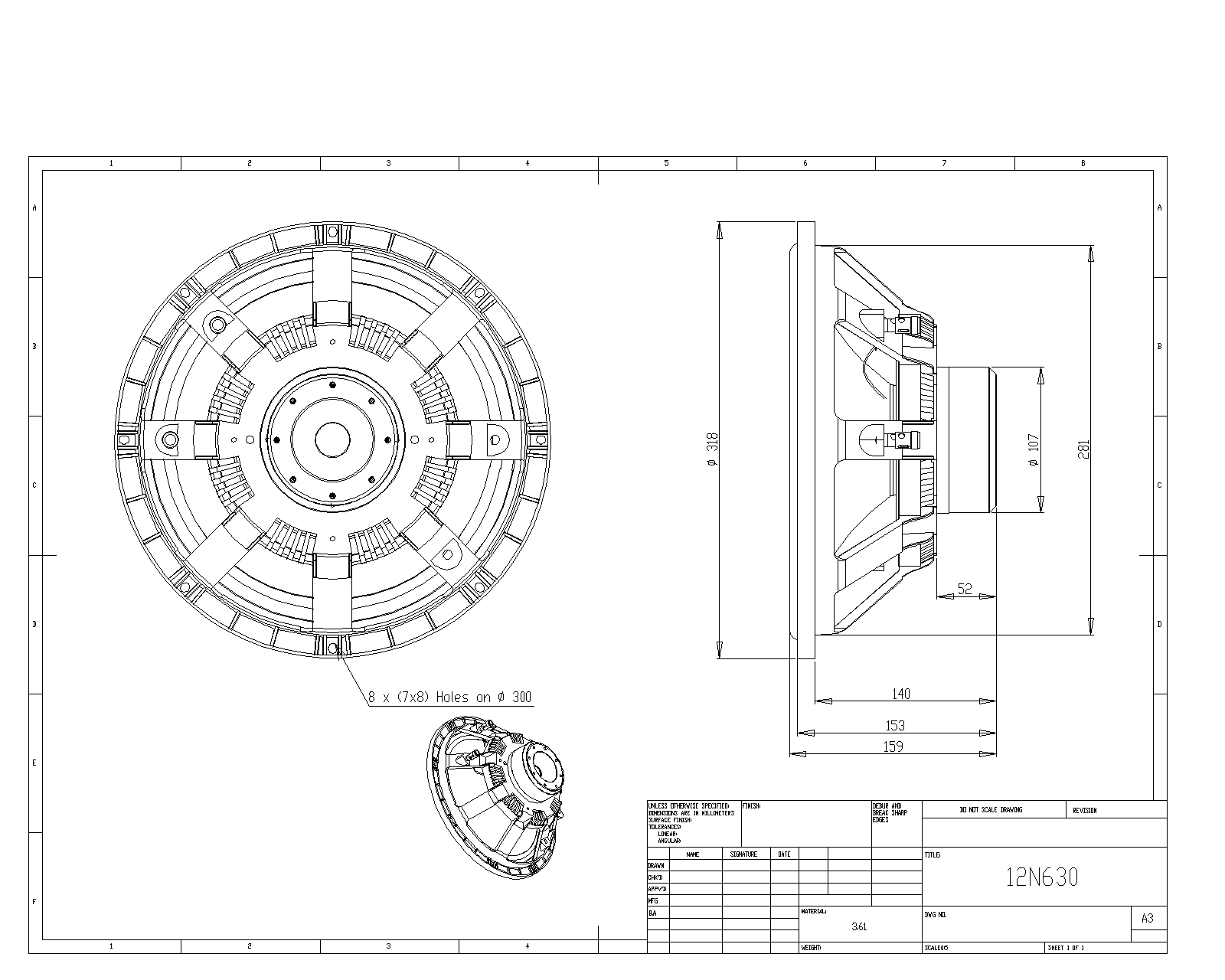

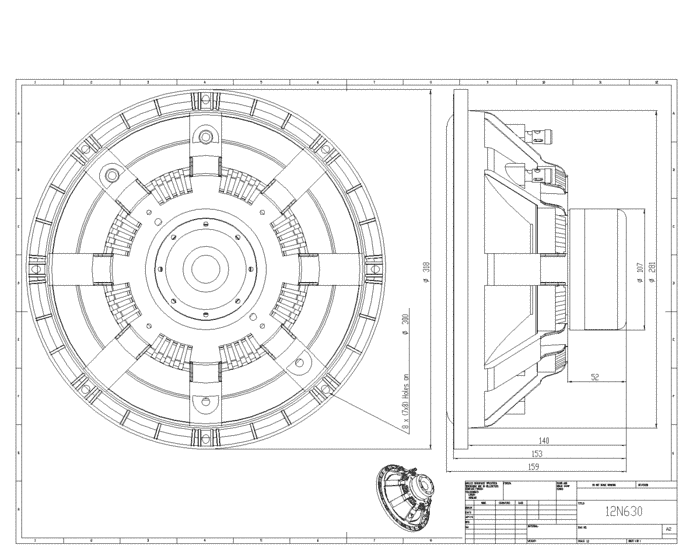

Dimensions & Physical
Weight4.1kg
Diameter318.0mm
Overall Depth159.0mm
Cutout Diameter284.0mm
Bolt Circle Diameter300.0mm
