Overview
LF DriverFH series
FaitalPRO

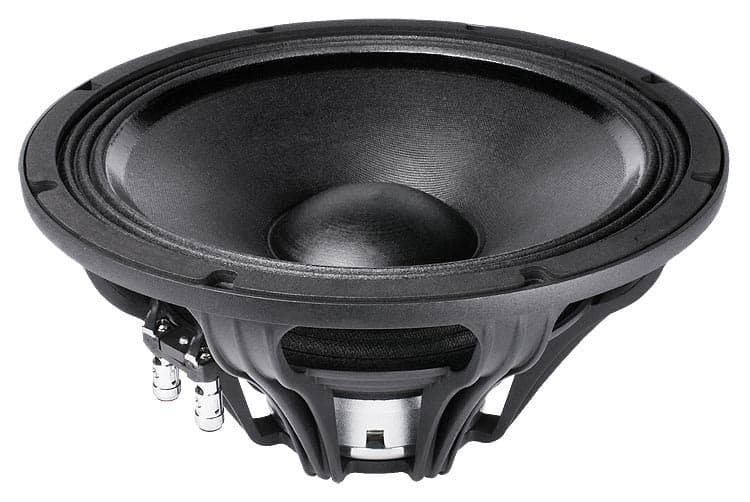

FaitalPRO 12FH520
FaitalPRO 12FH520 is a 12" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 50Hz, Qts 0.29, Vas 73.7L, Xmax 7.3mm, sensitivity 96.9dB, plus 392cm³ Vd and 167 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £194.30.
Size
12"
Impedance
8Ω
RMS Power
600W
Sensitivity
96.9dB
98.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
167
Vented alignment
Vd
392cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees164 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
164 plotted pointsMedium confidence455 selected pixels of 1,009 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence819 selected pixels of 1,190 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,449 selected pixels of 1,449
T/S Parameters
Valid
Fs50Hz
Qts0.29
Qes0.30
Qms11.1
Vas73.7L
Re5.1Ω
Le0.74mH
BL17.3Tm
Sd540cm²
Mms56g
Xmax7.3mm
SPL97dB
Power600W
Impedance8Ω
F Low50Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
4 vendorsbluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£197.29
inc VAT
2 in stock
leanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£197.29
inc VAT
Back order
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£257.71
inc VAT
Out of stock
partsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£326.18
inc VAT
7 in stock
Best current price
Updated 17 May 2026
leanbusiness
£194.30
Avg £239.26£44.96 below avg (-18.8%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.2kg
Diameter316.0mm
Overall Depth155.8mm
Cutout Diameter284.0mm
Bolt Circle Diameter298.5mm
