SB AudienceROSSO-12MW300
£106.55 · 39% less, betterFs48 Hz +7%
Qts0.27 +4%
Vas85.9 L +16%, worse
BL17.4 T·m −8%
Xmax6.7 mm −11%, worse
Sensitivity97.3 dB +1.3
12-inch LF driver · FH series · 500 W
FaitalPRO 12FH530 8Ω
45–3150 Hz
£180.61
SteadyLean Business · All 6 offers
- Fs
- 45Hz
- Xmax
- 7.5mm
- SPL
- 96dB
- Pe
- 500W
- BL
- 18.9T·m
- Vd
- 400cm³
- Qts
- 0.26
- Vas
- 74L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
167 plotted pointsMedium confidence431 selected pixels of 1,061 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence885 selected pixels of 1,207 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,409 selected pixels of 1,409

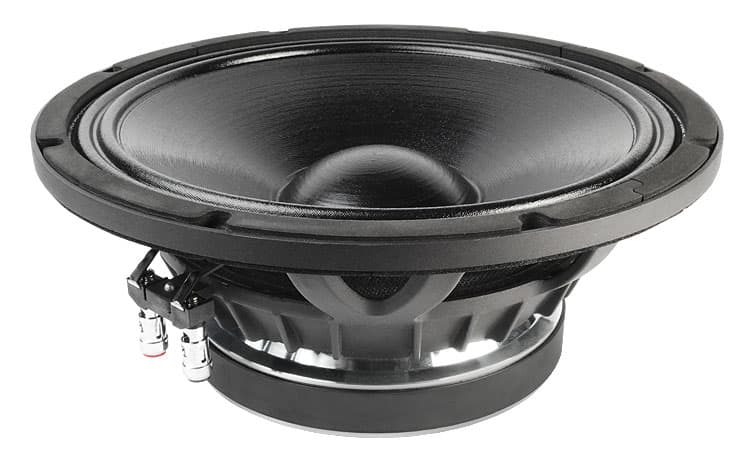

FaitalPRO 12FH530 is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.26, Vas 74.1 L, Xmax 7.5 mm, sensitivity 96 dB, plus 400 cm³ Vd and 167 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £175.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 6.4
- Vas
- 74.1L
- Re
- 5.1Ω
- Le
- 0.80mH
Motor and cone
- BL
- 18.9T·m
- Sd
- 533cm²
- Mms
- 67g
- Xmax
- 7.5mm
- Vd †
- 400cm³
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 98dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 45–3150Hz
- EBP †
- 167 · Leans vented
Size and mounting
- Diameter
- 316mm
- Cutout
- 282mm
- Bolt circle
- 298.5mm
- Depth
- 140mm
- Weight
- 7.9kg
Other published values
- Cms
- 0.19mm/N
- Rms
- 3kg/s
- Power Program
- 1000
Sensitivity shows 96.0 dB, calculated from the T/S values. FaitalPRO publishes 98.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 12″
- BL
- 18.9T·m
- Fs
- 45Hz
- Le
- 0.80mH
- Re
- 5.1Ω
- Sd
- 533cm²
- Cms
- 0.19mm/N
- Mms
- 67g
- Qes
- 0.27
- Qms
- 6.4
- Qts
- 0.26
- Rms
- 3kg/s
- SPL
- 96dB
- Vas
- 74.1L
- Xmax
- 7.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 45Hz
- Power Program
- 1000
- Calculated sensitivity †
- 96dB
- High limit
- 3150Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 7.9kg
- Diameter
- 316mm
- Depth
- 140mm
- Cutout
- 282mm
- Bolt circle
- 298.5mm
02
Compare
Same-size drivers, compared with the 12FH530. Clear differences are green when better and red when worse.
This driver12FH530
Best price
£175.00
Fs
45 Hz
Qts
0.26
Vas
74.1 L
BL
18.9 T·m
Xmax
7.5 mm
Sensitivity
96 dB
Power
500 W
RCFMB12G301
£142.33 · 19% less, betterFs53 Hz +18%, worse
Qts0.27 +4%
Vas72 L –
BL17 T·m −10%, worse
Xmax6 mm −20%, worse
Sensitivity97.9 dB +1.9
Beyma12WR400
£142.43 · 19% less, betterFs42 Hz −7%
Qts0.27 +4%
Vas91 L +23%, worse
BL18 T·m −5%
Xmax6.3 mm −16%, worse
Sensitivity95.8 dB –
Beyma12G40
£153.72 · 12% less, betterFs44 Hz –
Qts0.30 +15%, worse
Vas81 L +9%
BL18.4 T·m –
Xmax7 mm −7%
Sensitivity95.6 dB –
LavoceWAN123.00
£163.28 · 7% less, betterFs49 Hz +9%
Qts0.27 +4%
Vas68.8 L −7%
BL17.9 T·m −5%
Xmax6.9 mm −8%
Sensitivity96.6 dB +0.6
FaitalPRO12FH510
£163.54 · 7% less, betterFs45 Hz –
Qts0.24 −8%
Vas81.3 L +10%
BL18.9 T·m –
Xmax7.5 mm –
Sensitivity96.7 dB +0.7
Eighteen Sound12W750
£166.62 · 5% lessFs49 Hz +9%
Qts0.28 +8%
Vas73 L –
BL18 T·m −5%
Xmax8 mm +7%
Sensitivity96.6 dB +0.6
Beyma12MCB700
£174.16 · Same priceFs51 Hz +13%, worse
Qts0.27 +4%
Vas59.5 L −20%, better
BL20.4 T·m +8%
Xmax7 mm −7%
Sensitivity96.4 dB –
FaitalPRO12FH500
£180.28 · 3% moreFs45 Hz –
Qts0.25 −4%
Vas87.3 L +18%, worse
BL17.5 T·m −7%
Xmax7.5 mm –
Sensitivity96.9 dB +0.9
RCFMB12N301
£183.23 · 5% moreFs54 Hz +20%, worse
Qts0.24 −8%
Vas71 L −4%
BL19 T·m –
Xmax6 mm −20%, worse
Sensitivity98.4 dB +2.4, better
RCFMB12X351
£187.93 · 7% more, worseFs55 Hz +22%, worse
Qts0.26 –
Vas46 L −38%, better
BL22.5 T·m +19%, better
Xmax7 mm −7%
Sensitivity96.6 dB +0.6
FaitalPRO12FH520
£197.29 · 13% more, worseFs50 Hz +11%, worse
Qts0.29 +12%, worse
Vas73.7 L –
BL17.3 T·m −8%
Xmax7.3 mm −3%
Sensitivity96.9 dB +0.9
B&C12NDL88
£208.49 · 19% more, worseFs51 Hz +13%, worse
Qts0.27 +4%
Vas52 L −30%, better
BL19.9 T·m +5%
Xmax8 mm +7%
Sensitivity95.8 dB –
Beyma12MC700ND
£209.29 · 20% more, worseFs51 Hz +13%, worse
Qts0.24 −8%
Vas58 L −22%, better
BL21.6 T·m +14%, better
Xmax7 mm −7%
Sensitivity96.7 dB +0.7
Eighteen Sound12ND830
£240.31 · 37% more, worseFs55 Hz +22%, worse
Qts0.28 +8%
Vas72 L –
BL17.6 T·m −7%
Xmax6.5 mm −13%, worse
Sensitivity98 dB +2, better
BMS12N620
£247.26 · 41% more, worseFs45 Hz –
Qts0.25 −4%
Vas72.7 L –
BL20.6 T·m +9%
Xmax5.5 mm −27%, worse
Sensitivity96 dB –
Beyma12P1000ND
£318.29 · 82% more, worseFs47 Hz +4%
Qts0.26 –
Vas49 L −34%, better
BL23.5 T·m +24%, better
Xmax8 mm +7%
Sensitivity94.8 dB −1.2
Sica12 S 4 PL
£334.09 · 91% more, worseFs40 Hz −10%, better
Qts0.25 −4%
Vas57 L −23%, better
BL23.5 T·m +24%, better
Xmax7.5 mm –
Sensitivity93.6 dB −2.4, worse
Scanspeak32W/8878T11
£644.69 · 268% more, worseFs21 Hz −53%, better
Qts0.26 –
Vas235 L +217%, worse
BL16.5 T·m −13%, worse
Xmax7.5 mm –
Sensitivity90.9 dB −5.1, worse
LavoceNBASS12-30
No current priceFs46 Hz –
Qts0.26 –
Vas68.6 L −7%
BL19.5 T·m +3%
Xmax6.6 mm −12%, worse
Sensitivity96 dB –
No photo
PHL Audio4031
No current priceFs44 Hz –
Qts0.27 +4%
Vas70 L −6%
BL20.5 T·m +8%
Xmax7.5 mm –
Sensitivity95.2 dB −0.8
No photo
PHL Audio4031NDU
No current priceFs44 Hz –
Qts0.27 +4%
Vas70 L −6%
BL20.5 T·m +8%
Xmax7.5 mm –
Sensitivity95.2 dB −0.8
Oberton12B450
No current priceFs46 Hz –
Qts0.23 −10%
Vas71.8 L −3%
BL19.3 T·m –
Xmax7.8 mm +3%
Sensitivity96.7 dB +0.7
Oberton12B401
No current priceFs47 Hz +4%
Qts0.24 −6%
Vas69.6 L −6%
BL19.9 T·m +6%
Xmax6.8 mm −10%, worse
Sensitivity96.5 dB +0.5
Oberton12MB35
No current priceFs51 Hz +14%, worse
Qts0.27 –
Vas50.1 L −32%, better
BL20.5 T·m +8%
Xmax6.8 mm −10%, worse
Sensitivity96 dB –
BMS12N804
No current priceFs39 Hz −13%, better
Qts0.29 +12%, worse
Vas71 L −4%
BL20.4 T·m +8%
Xmax8 mm +7%
Sensitivity93.4 dB −2.6, worse
Oberton12B400
No current priceFs50 Hz +12%, worse
Qts0.25 −4%
Vas74.7 L –
BL18.4 T·m –
Xmax5.3 mm −30%, worse
Sensitivity97.8 dB +1.8
Oberton12H4CX72
No current priceFs50 Hz +11%, worse
Qts0.25 −3%
Vas74.7 L –
BL19.9 T·m +5%
Xmax4.5 mm −40%, worse
Sensitivity97.6 dB +1.6
No photo
PHL Audio4071-1
No current priceFs47 Hz +4%
Qts0.24 −8%
Vas57.8 L −22%, better
BL20.6 T·m +9%
Xmax6.5 mm −13%, worse
Sensitivity95.7 dB –
Beyma12CXA400FE
No current priceFs42 Hz −7%
Qts0.25 −4%
Vas94 L +27%, worse
BL19.8 T·m +5%
Xmax6 mm −20%, worse
Sensitivity96.3 dB –
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £180.61, the lowest price | Stock not listed | Visit shop at Lean Business | |
Blue Aran 9-11 weeks | £180.61 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Audio | £180.61 | Back order | Visit shop at Lean Audio | |
Audio Video Parts Import VAT and duty may apply | £185.99 | 3.0% above the lowest price | Special order | Visit shop at Audio Video Parts |
Best price over time
Tracked since 1 Apr
