Overview
LF Driver
Sica

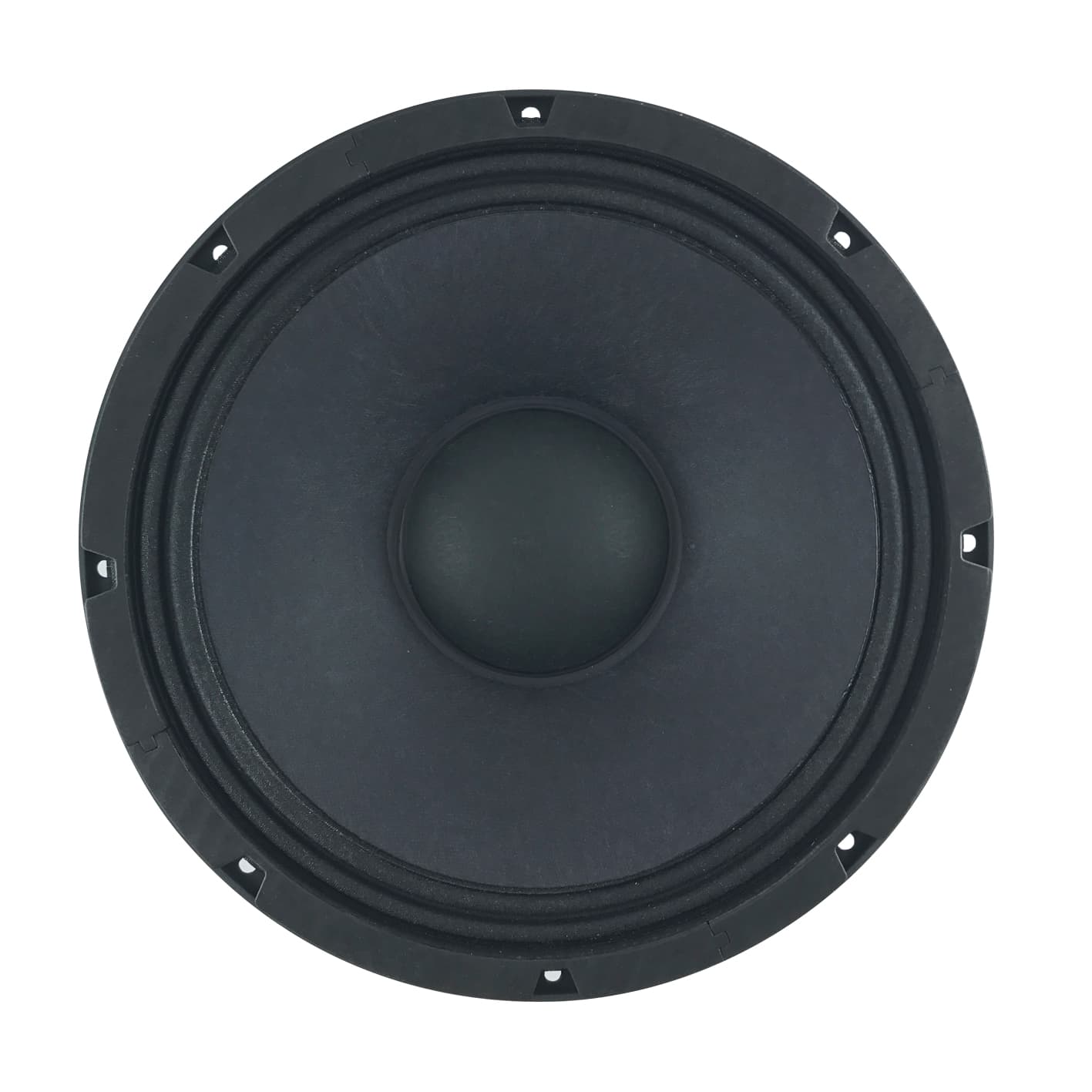

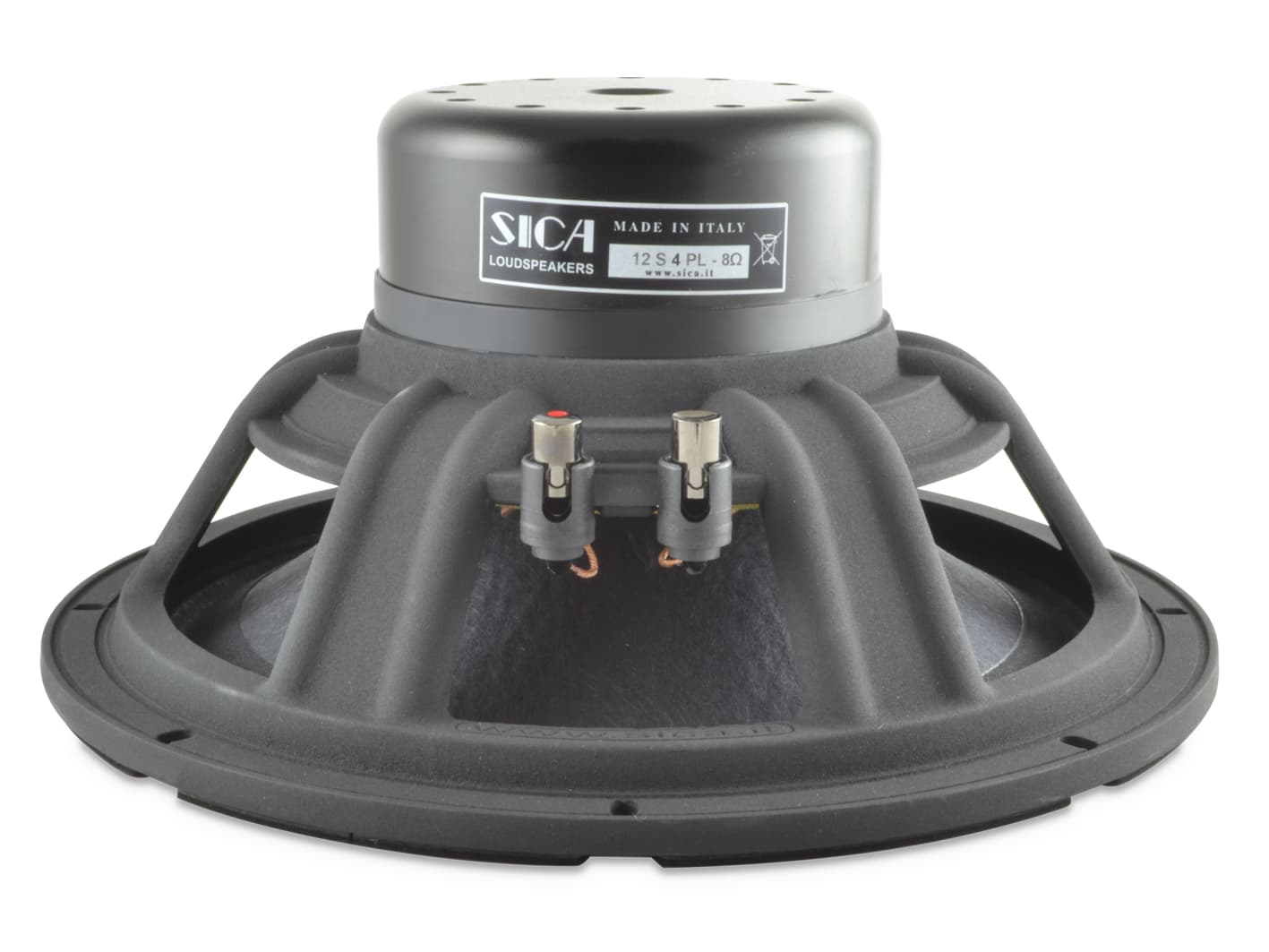

Sica 12 S 4 PL
Sica 12 S 4 PL is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 40Hz, Qts 0.25, Vas 57L, Xmax 7.5mm, sensitivity 93.6dB, plus 398cm³ Vd and 155 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
93.6dB
95.5dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
155
Vented alignment
Vd
398cm³
T/S Parameters
Valid
Fs40Hz
Qts0.25
Qes0.26
Qms4.5
Vas57.0L
Re5.2Ω
Le1.15mH
BL23.5Tm
Sd531cm²
Mms109g
Xmax7.5mm
SPL94dB
Power1000W
Impedance8Ω
Voice Coil100mm
Flux Density1.21T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.6kg
Diameter320.0mm
Overall Depth154.8mm
Cutout Diameter284.0mm
Bolt Circle Diameter301.0mm
