Overview
LF Driver
Sica

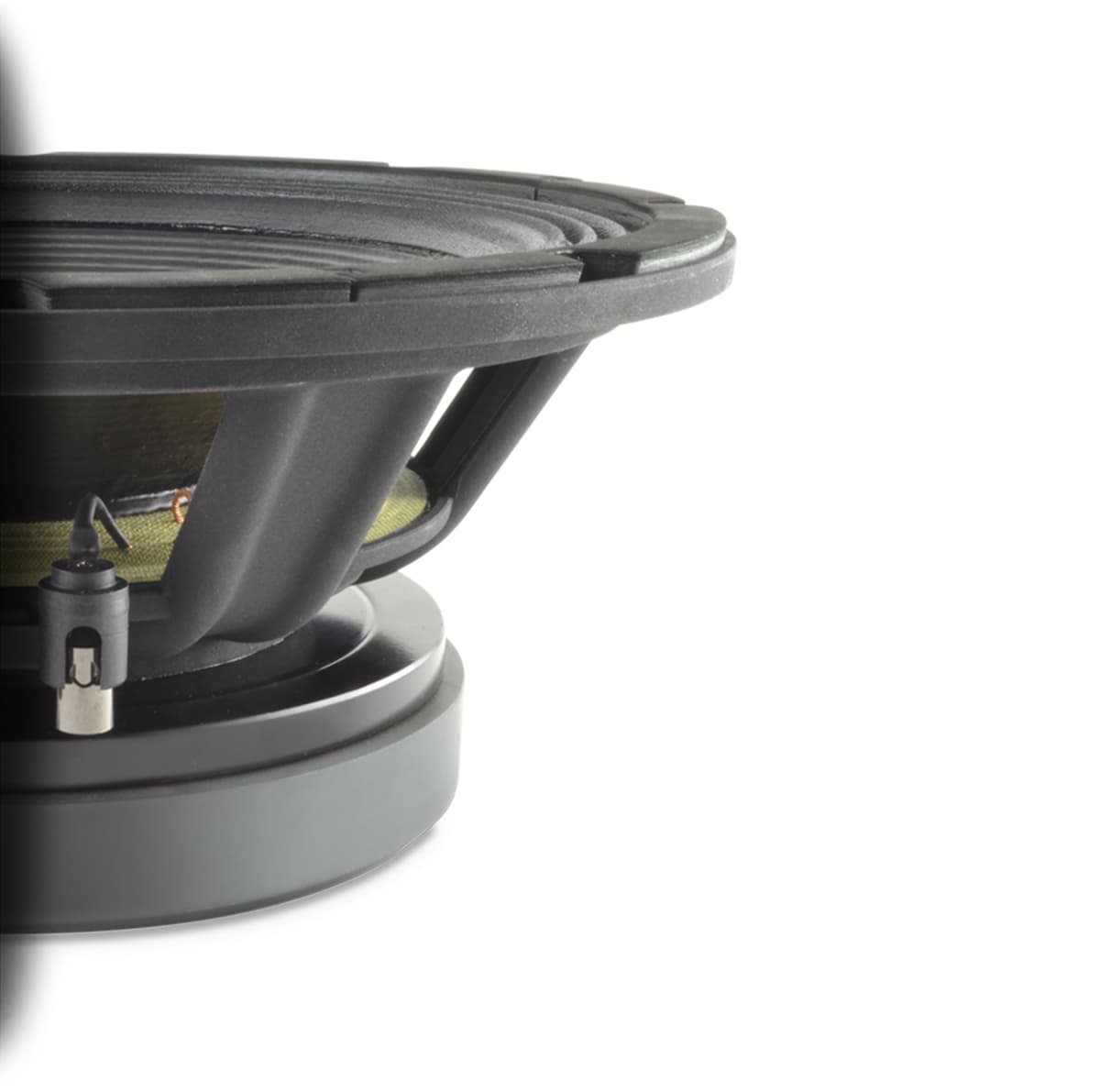

Sica 12 PFS 4
Sica 12 PFS 4 is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 39Hz, Qts 0.26, Vas 55.6L, Xmax 9mm, sensitivity 92.9dB, plus 478cm³ Vd and 144 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
92.9dB
94.8dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
144
Vented alignment
Vd
478cm³
T/S Parameters
Valid
Fs39Hz
Qts0.26
Qes0.27
Qms4.6
Vas55.6L
Re5.2Ω
Le1.76mH
BL23.9Tm
Sd531cm²
Mms120g
Xmax9.0mm
SPL93dB
Power1000W
Impedance8Ω
Voice Coil100mm
Flux Density1.08T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.5kg
Diameter320.0mm
Overall Depth153.3mm
Cutout Diameter284.0mm
Bolt Circle Diameter301.0mm
