Overview
LF Driver
PRV Audio
PRV Audio 12MR2000X
PRV Audio 12MR2000X is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 65Hz, Qts 0.28, Vas 39.6L, Xmax 6.6mm, sensitivity 97.9dB, plus 378cm³ Vd and 231 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
97.9dB
100.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
231
Vented alignment
Vd
378cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs65Hz
Qts0.28
Qes0.28
Qms17.2
Vas39.6L
Re5.4Ω
Le0.43mH
BL23.2Tm
Sd573cm²
Mms70g
Xmax6.6mm
SPL98dB
Power1000W
Impedance8Ω
F Low100Hz
F High5300Hz
Xover160Hz
Voice Coil100mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.1kg
Diameter312.0mm
Overall Depth126.0mm
Cutout Diameter283.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
12MR2000X
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
£187.93
RCF
MB12X351
12"
Xmax7mm+6%
Qts0.26-7%
BL22.5Tm-3%
Vas46L+16%
Qes0.27-4%
84%
Similarity
£189.95

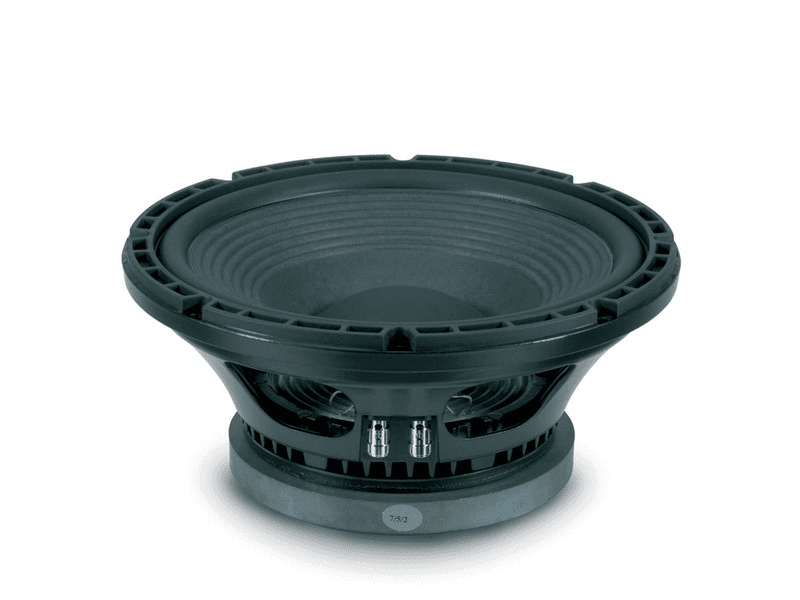

Eighteen Sound
12LW800
12"
Xmax6.5mm-2%
Qts0.29+4%
BL21.3Tm-8%
Vas48L+21%
Qes0.3+7%
82%
Similarity
Sica
12 K 4 PL
12"
Xmax7mm+6%
Qts0.25-11%
BL22.9Tm-1%
Vas47.4L+20%
Qes0.27-4%
82%
Similarity
£136.98
Oberton
12MB35
12"
Xmax6.8mm+2%
Qts0.27-5%
BL20.5Tm-12%
Vas50.1L+26%
Qes0.27-3%
79%
Similarity
£224.62
PRV Audio
12MR2000X-NDY
12"
Xmax6.1mm-8%
Qts0.31+11%
BL22.7Tm-2%
Vas35.9L-9%
Qes0.32+14%
79%
Similarity
Celestion
TSQ1230
12"
Xmax6.8mm+2%
Qts0.3+8%
BL20.5Tm-12%
Vas45.2L+14%
Qes0.32+12%
78%
Similarity
£194.77
B&C
12PS100
12"
Xmax8mm+21%
Qts0.27-4%
BL22.5Tm-3%
Vas47L+19%
Qes0.29+4%
75%
Similarity
Beyma
112P10ND8
12"
Xmax8mm+21%
Qts0.26-7%
BL23.5Tm+1%
Vas49L+24%
Qes0.27-4%
73%
Similarity
£174.16
Beyma
12MCB700
12"
Xmax7mm+6%
Qts0.27-4%
BL20.4Tm-12%
Vas59.5L+50%
Qes0.29+4%
69%
Similarity
£218.40
B&C
12NDL88
12"
Xmax8mm+21%
Qts0.27-4%
BL19.9Tm-14%
Vas52L+31%
Qes0.29+4%
68%
Similarity
£217.96
Beyma
12MC700ND
12"
Xmax7mm+6%
Qts0.24-14%
BL21.6Tm-7%
Vas58L+46%
Qes0.26-7%
66%
Similarity
CIARE
PWA12.75
12"
Xmax5.8mm-12%
Qts0.3+7%
BL19.6Tm-15%
Vas52L+31%
Qes0.32+14%
