LF DriverHP series
FaitalPRO

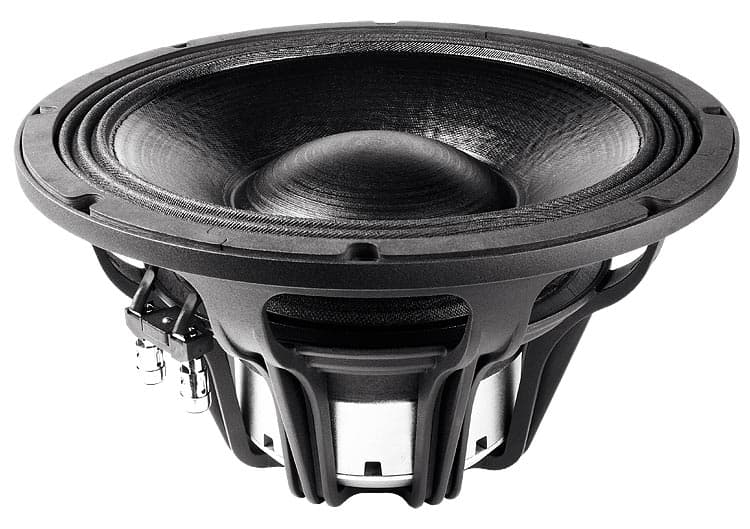

FaitalPRO 12HP1060
FaitalPRO 12HP1060 is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 45Hz, Qts 0.28, Vas 36.9L, Xmax 12.4mm, sensitivity 92.7dB, plus 645cm³ Vd and 155 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £260.09.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
92.7dB
95.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
155
Vented alignment
Vd
645cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees240 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence1,042 selected pixels of 1,311 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,388 selected pixels of 1,763 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,458 selected pixels of 1,467
T/S Parameters
Valid
Fs45Hz
Qts0.28
Qes0.29
Qms12.1
Vas36.9L
Re5.0Ω
Le1.38mH
BL24.8Tm
Sd518cm²
Mms127g
Xmax12.4mm
SPL93dB
Power1000W
Impedance8Ω
F Low45Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£260.09
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.6kg
Diameter316.0mm
Overall Depth168.8mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
12HP1060
12"
Best current price
£260.09
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
39%
Similarity
26% cheaper£191.59
FaitalPRO
12HP1010
12"
Lower price
Xmax9.3mm-26%
Qts0.34+21%
BL19.8Tm-20%
Vas56.5L+53%
Qes0.35+21%
64%
Similarity
23% cheaper£199.00
CIARE
12.00SW
12"
Lower price
Xmax13.5mm+8%
Qts0.29+4%
BL19.5Tm-21%
Vas55L+49%
Qes0.33+14%
51%
Similarity
22% cheaper£203.33
CIARE
12.00SW
12"
Lower price
Xmax14mm+12%
Qts0.34+21%
BL25.3Tm+2%
Vas59L+60%
Qes0.36+24%
75%
Similarity
19% cheaper£209.86
B&C
12TBX100
12"
Lower price
Xmax9mm-28%
Qts0.26-7%
BL25.5Tm+3%
Vas37.5L+2%
Qes0.27-7%
59%
Similarity
19% cheaper£209.86
B&C
12TBX100
12"
Lower price
Xmax9mm-28%
Qts0.23-18%
BL22.9Tm-8%
Vas41.1L+11%
Qes0.24-17%
83%
Similarity
17% cheaper£214.66
Beyma
12LEX1000FE
12"
Lower price
Xmax11mm-12%
Qts0.3+7%
BL24.6Tm-1%
Vas38.4L+4%
Qes0.32+10%
91%
Similarity
13% cheaper£225.74
FaitalPRO
12HP1030
12"
Lower price
Xmax12.4mm0%
Qts0.3+7%
BL24.3Tm-2%
Vas35.9L-3%
Qes0.31+7%
47%
Similarity
13% cheaper£227.46
B&C
12FG100
12"
Lower price
Xmax10.3mm-17%
Qts0.32+14%
BL17.2Tm-30%
Vas53L+44%
Qes0.34+17%
79%
Similarity
8% cheaper£240.05
FaitalPRO
12HP1020
12"
Lower price
Xmax9mm-28%
Qts0.27-4%
BL24.3Tm-2%
Vas38.6L+5%
Qes0.28-3%
56%
Similarity
5% cheaper£247.00
B&C
12NBX100
12"
Lower price
Xmax10mm-20%
Qts0.22-21%
BL23Tm-7%
Vas46.5L+26%
Qes0.23-21%
56%
Similarity
5% cheaper£247.00
B&C
12NBX100
12"
Lower price
Xmax10mm-20%
Qts0.22-21%
BL25.6Tm+3%
Vas51L+38%
Qes0.24-17%
67%
Similarity
5% cheaper£247.20
FaitalPRO
12FX600
12"
Lower price
Xmax9.9mm-20%
Qts0.24-14%
BL25.3Tm+2%
Vas44.4L+20%
Qes0.25-14%
