LF DriverRS series
FaitalPRO

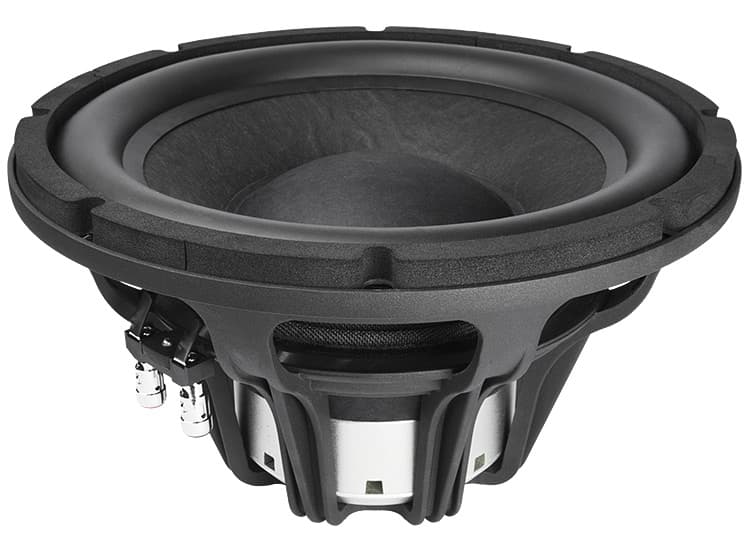

FaitalPRO 12RS1066
FaitalPRO 12RS1066 is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 42Hz, Qts 0.33, Vas 31.5L, Xmax 12.4mm, sensitivity 90.4dB, plus 618cm³ Vd and 124 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £269.89.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
90.4dB
93.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
124
Vented alignment
Vd
618cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees159 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
159 plotted pointsMedium confidence524 selected pixels of 1,086 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,211 selected pixels of 1,686 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,536 selected pixels of 1,546
T/S Parameters
Valid
Fs42Hz
Qts0.33
Qes0.34
Qms13.9
Vas31.5L
Re5.0Ω
Le1.35mH
BL24.8Tm
Sd496cm²
Mms157g
Xmax12.4mm
SPL90dB
Power1000W
Impedance8Ω
F Low45Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£269.89
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.6kg
Diameter316.0mm
Overall Depth176.5mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.5mm
