LF DriverRS series
FaitalPRO

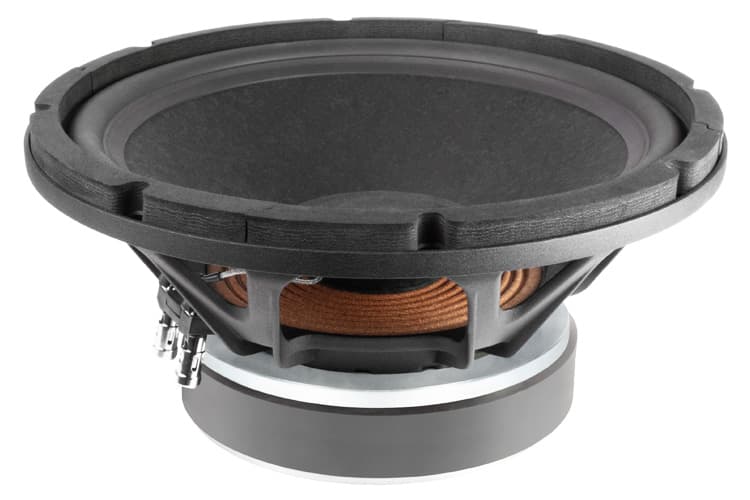

FaitalPRO 12RS430
FaitalPRO 12RS430 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 30Hz, Qts 0.35, Vas 131.2L, Xmax 13.6mm, sensitivity 92dB, plus 749cm³ Vd and 83 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £168.40.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
92.0dB
93.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
83
Either alignment
Vd
749cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees225 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
225 plotted pointsMedium confidence741 selected pixels of 1,023 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,183 selected pixels of 1,183 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,465 selected pixels of 1,465
T/S Parameters
Valid
Fs30Hz
Qts0.35
Qes0.36
Qms10.0
Vas131.2L
Re6.8Ω
Le0.78mH
BL18.0Tm
Sd552cm²
Mms91g
Xmax13.6mm
SPL92dB
Power400W
Impedance8Ω
F Low30Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£168.40
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.0kg
Diameter316.0mm
Overall Depth157.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
12RS430
12"
Best current price
£168.40
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
15% more£193.80

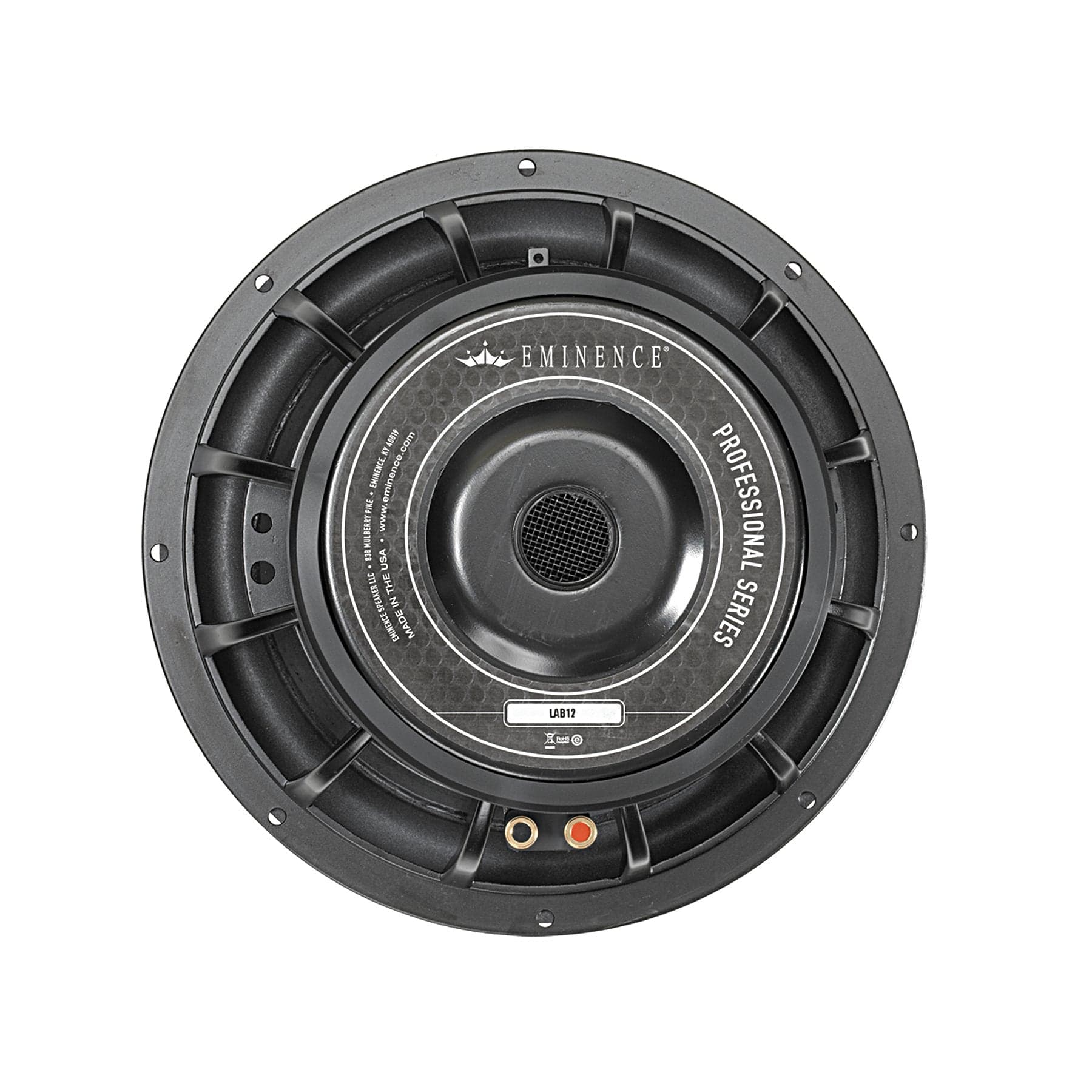

Eminence
LAB 12C
12"
Higher price
Xmax13mm-4%
Qts0.33-6%
BL13.4Tm-26%
Vas128.3L-2%
Qes0.34-6%
65%
Similarity
18% more£199.00
CIARE
12.00SW
12"
Higher price
Xmax13.5mm-1%
Qts0.29-17%
BL19.5Tm+8%
Vas55L-58%
Qes0.33-8%
48%
Similarity
27% more£213.05
BMS
12S305
12"
Higher price
Xmax11mm-19%
Qts0.27-24%
BL20.1Tm+12%
Vas82L-37%
Qes0.28-23%
79%
Similarity
34% more£225.00
Eminence
LAB 12
12"
Higher price
Xmax13mm-4%
Qts0.38+9%
BL15Tm-17%
Vas125.2L-5%
Qes0.39+8%
60%
Similarity
35% more£227.46
B&C
12FG100
12"
Higher price
Xmax10.3mm-24%
Qts0.32-9%
BL17.2Tm-4%
Vas53L-60%
Qes0.34-6%
59%
Similarity
287% more£651.95
Scanspeak
32W/4878T00
12"
Higher price
Xmax14mm+3%
Qts0.32-9%
BL12.5Tm-31%
Vas204L+55%
Qes0.33-8%
67%
Similarity
Oberton
12NSW600
12"
Xmax14.3mm+5%
Qts0.32-10%
BL20.2Tm+12%
Vas62.3L-52%
Qes0.33-8%
67%
Similarity
CIARE
CSD124-22
12"
Xmax13mm-4%
Qts0.3-14%
BL18.2Tm+1%
Vas54L-59%
Qes0.32-11%
66%
Similarity
Oberton
12B45V
12"
Xmax10.5mm-23%
Qts0.35+1%
BL16.6Tm-8%
Vas58.5L-55%
Qes0.37+3%
62%
Similarity
Dayton Audio
RSS315HO-4
12"
Xmax12.3mm-9%
Qts0.31-11%
BL20Tm+11%
Vas53.7L-59%
Qes0.33-8%
60%
Similarity
Celestion
FTR12-4080DL
12"
Xmax13.6mm0%
Qts0.3-13%
BL24.1Tm+34%
Vas68.6L-48%
Qes0.34-4%
60%
Similarity
Monacor
FTR12-4080DL/8
12"
Xmax13.6mm0%
Qts0.3-13%
BL24.1Tm+34%
Vas68.6L-48%
Qes0.34-4%
