Oberton 12NSW600 8Ω
8 Ω · 35–1000 Hz
No current price
- Fs
- 42Hz
- Xmax
- 14.3mm
- SPL
- 94dB
- Pe
- 600W
- BL
- 20.2T·m
- Vd
- 733cm³
- Qts
- 0.32
- Vas
- 62L

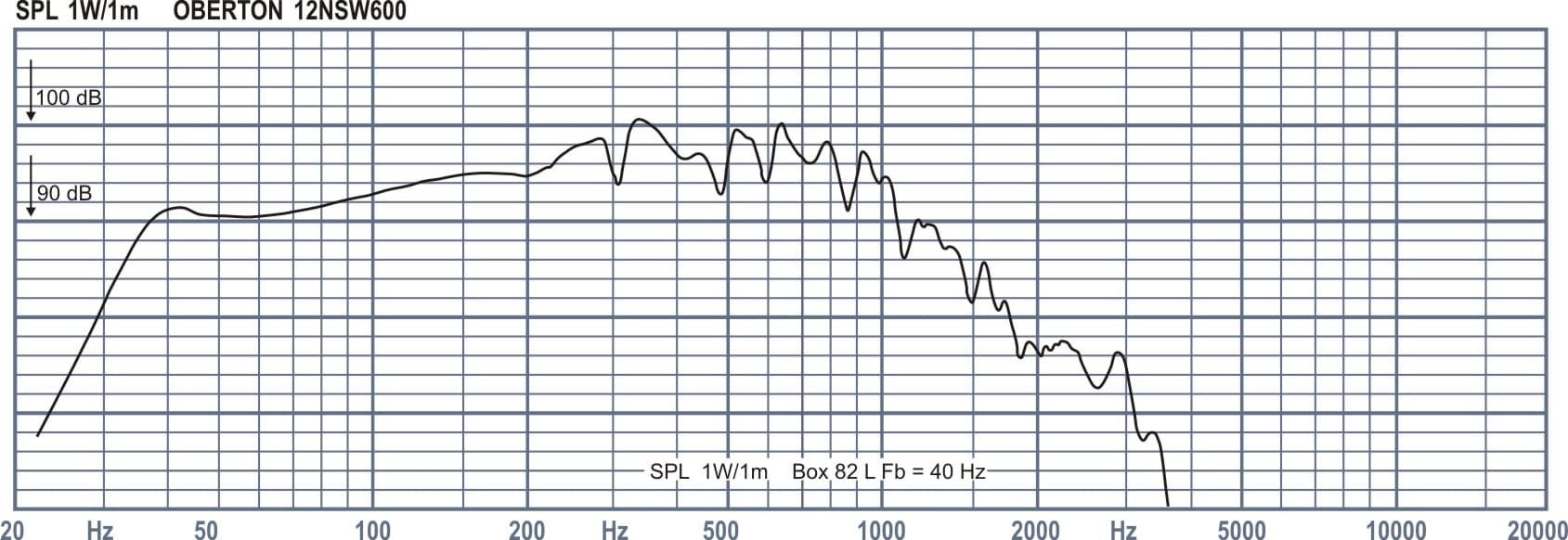

Published graphs
Oberton 12NSW600 is a 12-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 42 Hz, Qts 0.32, Vas 62.3 L, Xmax 14.3 mm, sensitivity 93.5 dB, plus 733 cm³ Vd and 127 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 42Hz
- Qts
- 0.32
- Qes
- 0.33
- Qms
- 7.3
- Vas
- 62.3L
- Re
- 6Ω
- Le
- 0.63mH
Motor and cone
- BL
- 20.2T·m
- Sd
- 515cm²
- Mms
- 85g
- Xmax
- 14.3mm
- Vd †
- 733cm³
- Voice coil
- 77mm
- Flux density
- 1.20T
Power and response
- Sensitivity †
- 93.5dB
- Manufacturer sensitivity
- 40dB
- Power
- 600W
- Impedance
- 8Ω
- Min. impedance
- 7.7Ω
- Range
- 35–1000Hz
- EBP †
- 127 · Leans vented

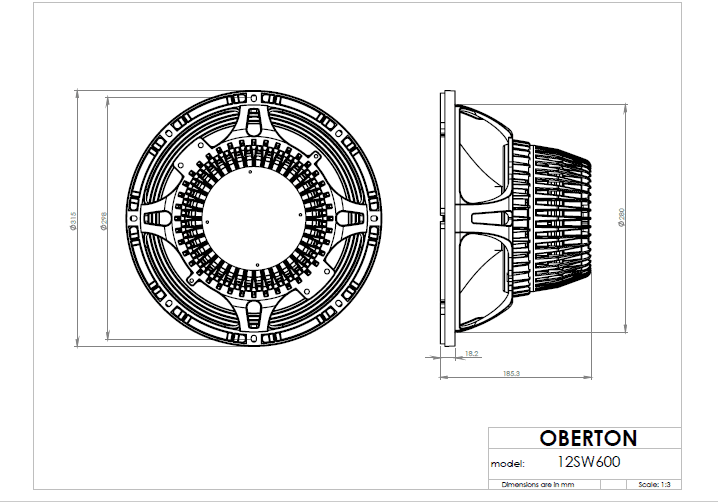

Size and mounting
- Diameter
- 315mm
- Cutout
- 280mm
- Bolt circle
- 298mm
- Depth
- 185.5mm
- Weight
- 6.7kg
Other published values
- Cms
- 0.17mm/N
- Power Program
- 1200
Sensitivity shows 93.5 dB, calculated from the T/S values. Oberton publishes 40.0 dB, 53.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 12″
- BL
- 20.2T·m
- Fs
- 42Hz
- Le
- 0.63mH
- Re
- 6Ω
- Sd
- 515cm²
- Cms
- 0.17mm/N
- Mms
- 85g
- Qes
- 0.33
- Qms
- 7.3
- Qts
- 0.32
- SPL
- 93.5dB
- Vas
- 62.3L
- Xmax
- 14.3mm
- Power
- 600W
- Impedance
- 8Ω
- Flux density
- 1.20T
- Sensitivity
- 40dB
- Low limit
- 35Hz
- Power Program
- 1200
- Calculated sensitivity †
- 93.5dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 40dB
- Min. impedance
- 7.7Ω
- Voice coil
- 77mm
- Weight
- 6.7kg
- Diameter
- 315mm
- Depth
- 185.5mm
- Cutout
- 280mm
- Bolt circle
- 298mm
