LF DriverCSD series
CIARE
CIARE CSD124-22
CIARE CSD124-22 is a 12" 2 ohm LF driver rated at 2000W RMS. The validated T/S data includes Fs 34Hz, Qts 0.30, Vas 54L, Xmax 13mm, sensitivity 90.2dB, plus 638cm³ Vd and 106 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
2Ω
RMS Power
2000W
Sensitivity
90.2dB
93.4dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
106
Vented alignment
Vd
638cm³
T/S Parameters
Valid
Fs34Hz
Qts0.30
Qes0.32
Qms5.0
Vas54.0L
Re3.3Ω
Le0.92mH
BL18.2Tm
Sd491cm²
Mms146g
Xmax13.0mm
SPL90dB
Power2000W
Power Nominal1000W
Impedance2Ω
F Low30Hz
F High200Hz
Voice Coil102mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight14.1kg
Diameter315.0mm
Overall Depth180.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter295.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CSD124-22
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£199.00
CIARE
12.00SW
12"
Xmax13.5mm+4%
Qts0.29-3%
BL19.5Tm+7%
Vas55L+2%
Qes0.33+3%
89%
Similarity
Dayton Audio
RSS315HO-4
12"
Xmax12.3mm-5%
Qts0.31+3%
BL20Tm+10%
Vas53.7L-1%
Qes0.33+3%
80%
Similarity
Oberton
12NSW600
12"
Xmax14.3mm+10%
Qts0.32+5%
BL20.2Tm+11%
Vas62.3L+15%
Qes0.33+3%
79%
Similarity
£227.46
B&C
12FG100
12"
Xmax10.3mm-21%
Qts0.32+7%
BL17.2Tm-5%
Vas53L-2%
Qes0.34+6%
71%
Similarity
£225.74
FaitalPRO
12HP1030
12"
Xmax12.4mm-4%
Qts0.30%
BL24.3Tm+33%
Vas35.9L-34%
Qes0.31-3%
71%
Similarity
Celestion
FTR12-4080DL
12"
Xmax13.6mm+5%
Qts0.3+1%
BL24.1Tm+32%
Vas68.6L+27%
Qes0.34+8%
71%
Similarity
Monacor
FTR12-4080DL/8
12"
Xmax13.6mm+5%
Qts0.3+1%
BL24.1Tm+32%
Vas68.6L+27%
Qes0.34+8%
67%
Similarity
Eighteen Sound
12NLW9410
12"
Xmax11mm-15%
Qts0.26-13%
BL21.7Tm+19%
Vas55L+2%
Qes0.27-16%
66%
Similarity
£191.59
FaitalPRO
12HP1010
12"
Xmax9.3mm-29%
Qts0.34+13%
BL19.8Tm+9%
Vas56.5L+5%
Qes0.35+9%
65%
Similarity

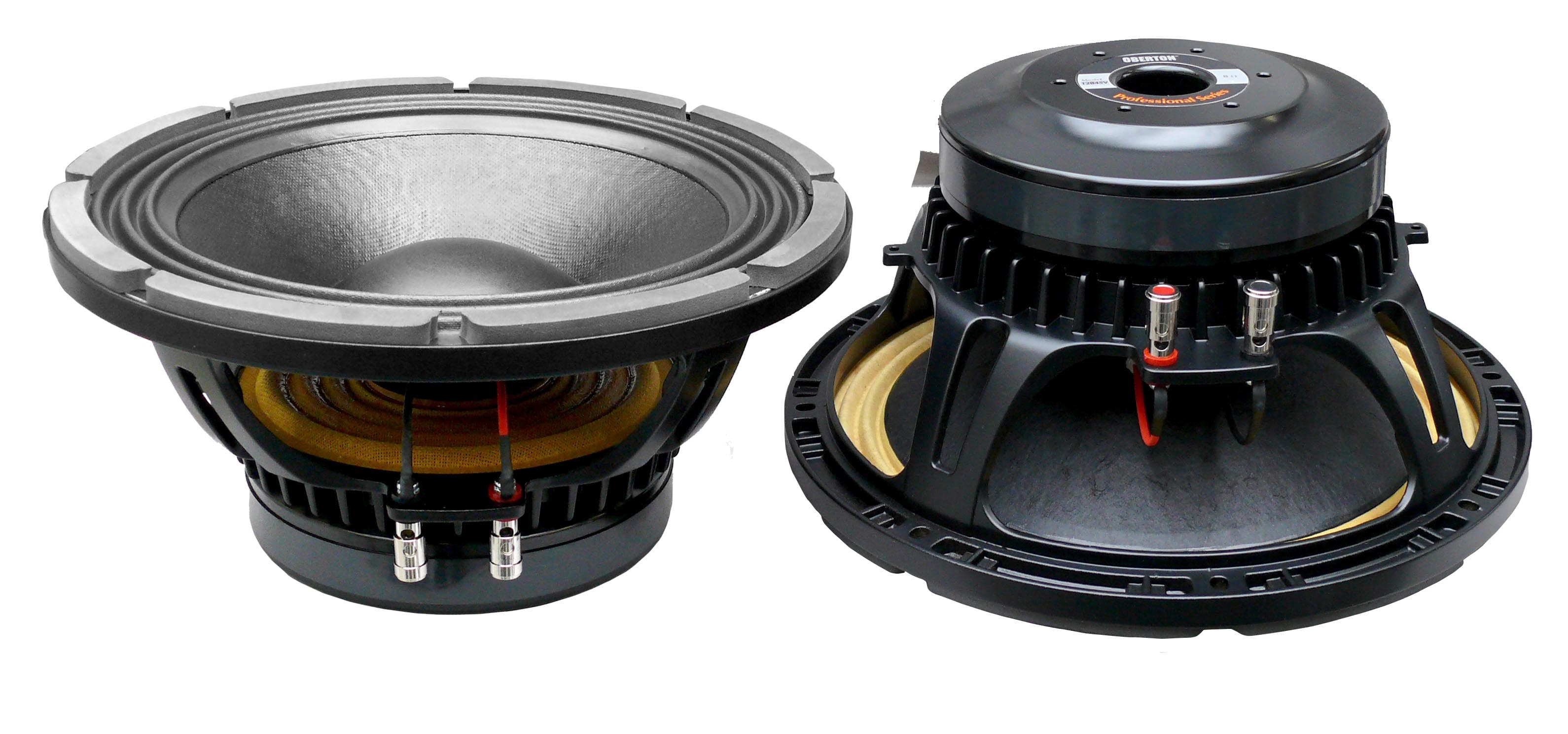

Oberton
