Overview
LF Driver12HCX series
Oberton
Oberton 12HCX
Oberton 12HCX is a 12" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 53Hz, Qts 0.33, Vas 55.5L, Xmax 5.3mm, sensitivity 95.6dB, plus 270cm³ Vd and 149 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
350W
Sensitivity
95.6dB
EBP
149
Vented alignment
Vd
270cm³
T/S Parameters
Valid
Fs53Hz
Qts0.33
Qes0.35
Qms5.8
Vas55.5L
Re5.6Ω
Le0.61mH
BL17.8Tm
Sd515cm²
Mms61g
Xmax5.3mm
SPL96dB
Power350W
Impedance8Ω
F Low60Hz
F High16000Hz
Voice Coil77mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

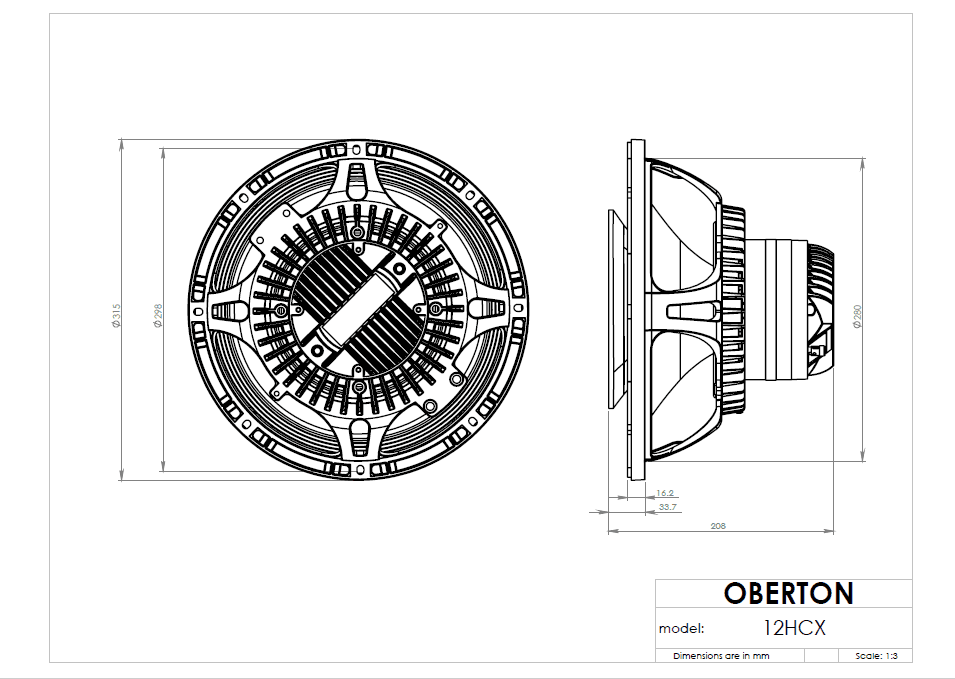

Dimensions & Physical
Weight5.8kg
Diameter315.0mm
Overall Depth208.0mm
Cutout Diameter280.0mm
Bolt Circle Diameter298.0mm
