Overview
LF DriverCNX1230 series
Celestion

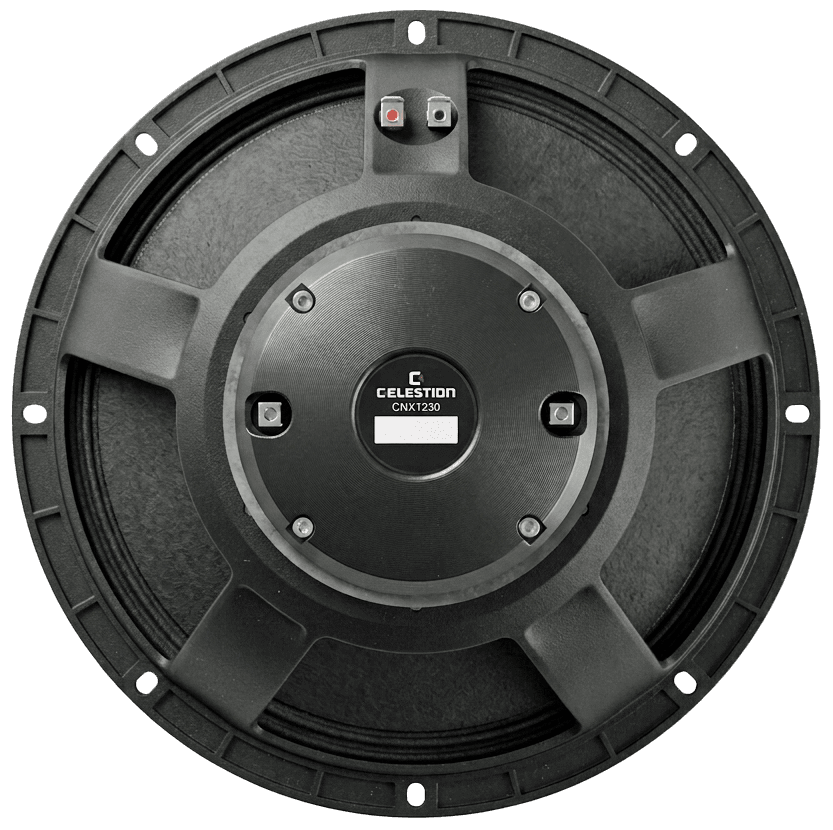

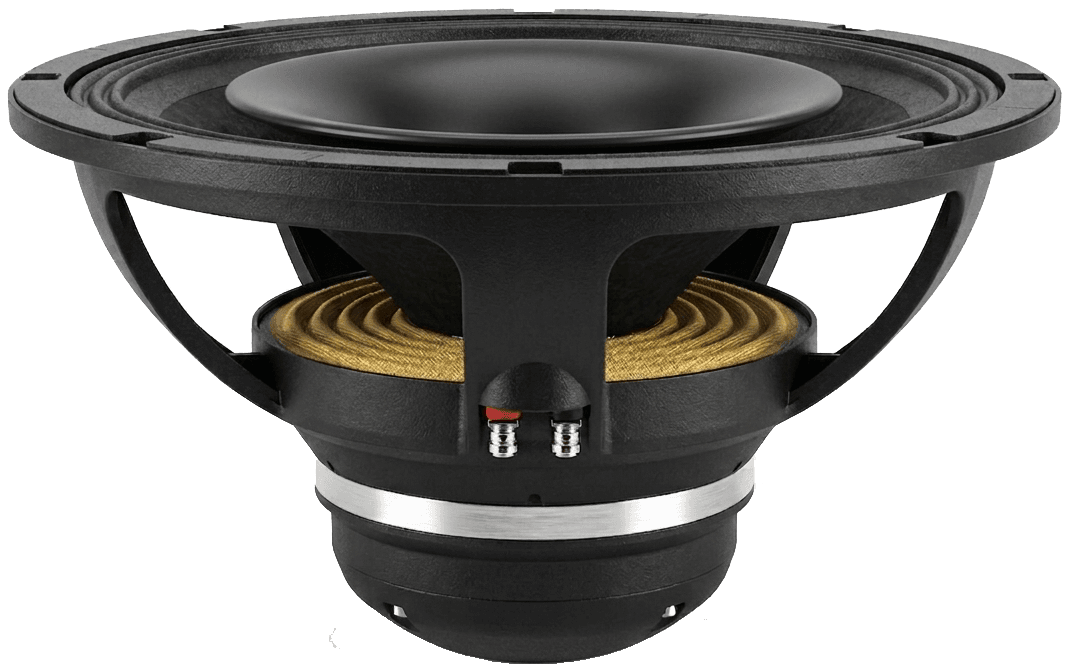

Celestion CNX1230
Celestion CNX1230 is a 12" 8 ohm LF driver rated at 75W RMS. The validated T/S data includes Fs 54Hz, Qts 0.34, Vas 68.4L, Xmax 6.5mm, sensitivity 96.8dB, plus 345cm³ Vd and 150 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
75W
Sensitivity
96.8dB
106.5dBmanufacturer; using T/S-derived value (9.7dB delta).
EBP
150
Vented alignment
Vd
345cm³
T/S Parameters
Valid
Fs54Hz
Qts0.34
Qes0.36
Qms5.4
Vas68.4L
Re5.6Ω
Le0.52mH
BL16.3Tm
Sd531cm²
Mms51g
Xmax6.5mm
SPL97dB
Power75W
Impedance8Ω
F Low500Hz
F High18000Hz
Voice Coil75mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.2kg
Diameter318.0mm
Overall Depth177.0mm
Cutout Diameter286.0mm
Bolt Circle Diameter304.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
CNX1230
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
£118.28
PRV Audio
12MB1000FT
12"
Xmax6.9mm+6%
Qts0.37+10%
BL16.5Tm+1%
Vas74.6L+9%
Qes0.38+6%
85%
Similarity
£179.00
Eighteen Sound
12W700
12"
Xmax6.5mm0%
Qts0.36+7%
BL17.7Tm+8%
Vas55L-20%
Qes0.37+3%
84%
Similarity
£184.90

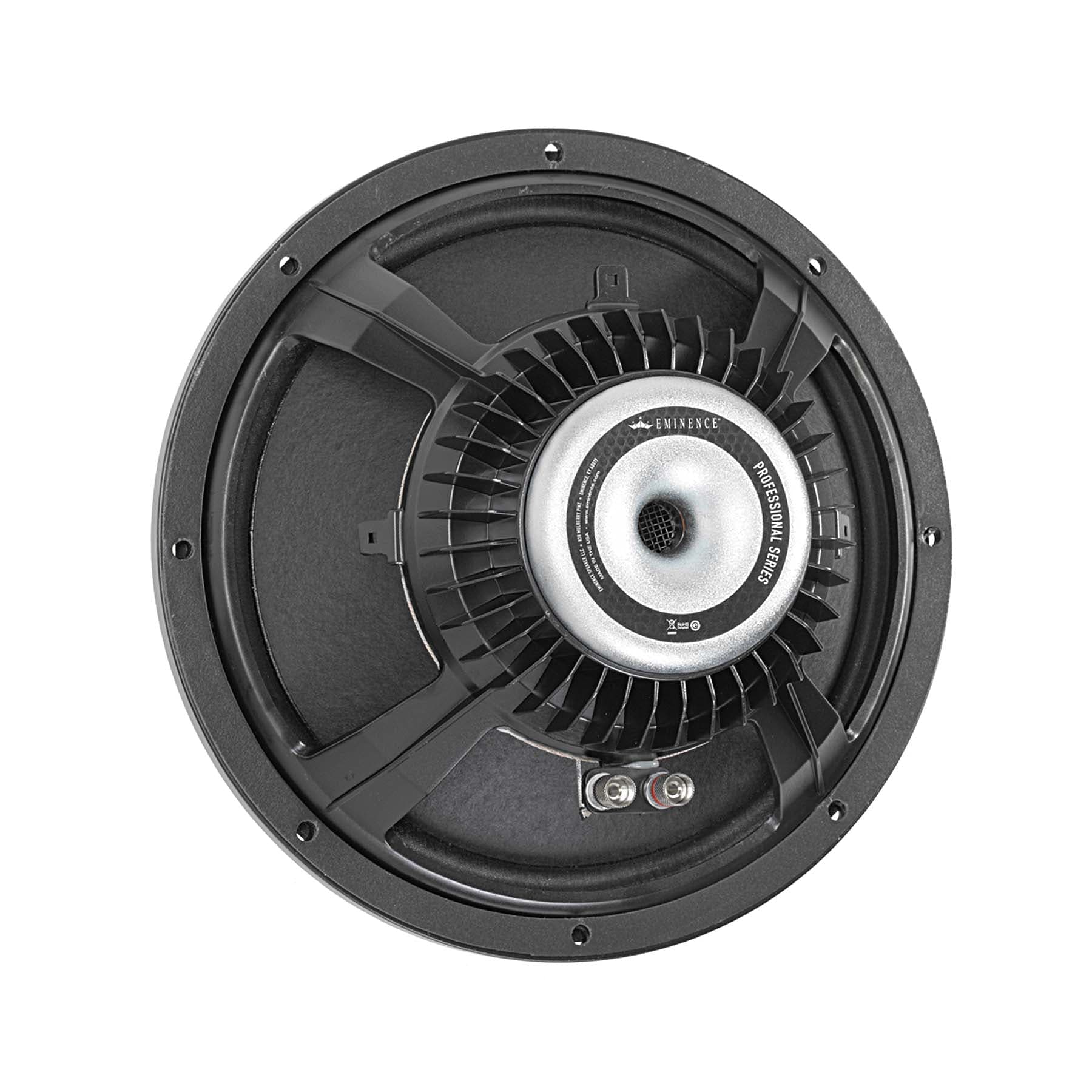

Eminence
KAPPALITE 3012HO
12"
Xmax6.2mm-5%
Qts0.32-5%
BL15.9Tm-3%
Vas81.1L+19%
Qes0.33-8%
84%
Similarity
PRV Audio
12MB2000FT
12"
Xmax6mm-8%
Qts0.32-5%
BL17.7Tm+9%
Vas66.9L-2%
Qes0.33-8%
84%
Similarity

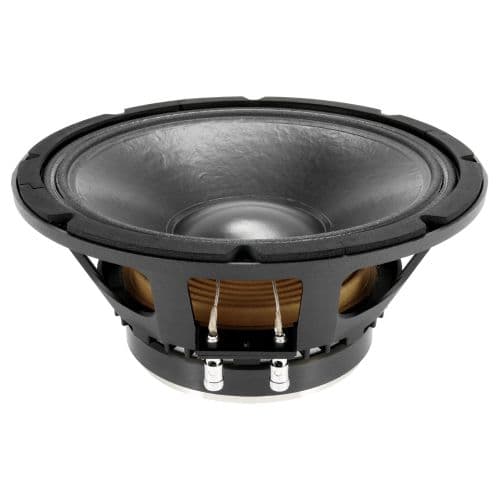

CIARE
12.75W1
12"
Xmax6mm-8%
Qts0.33-2%
BL18.9Tm+16%
Vas67L-2%
Qes0.34-6%
84%
Similarity
£99.00
Celestion
TF1225E
12"
Xmax5.3mm-19%
Qts0.33-1%
BL17.7Tm+8%
Vas67.7L-1%
Qes0.37+2%
83%
Similarity

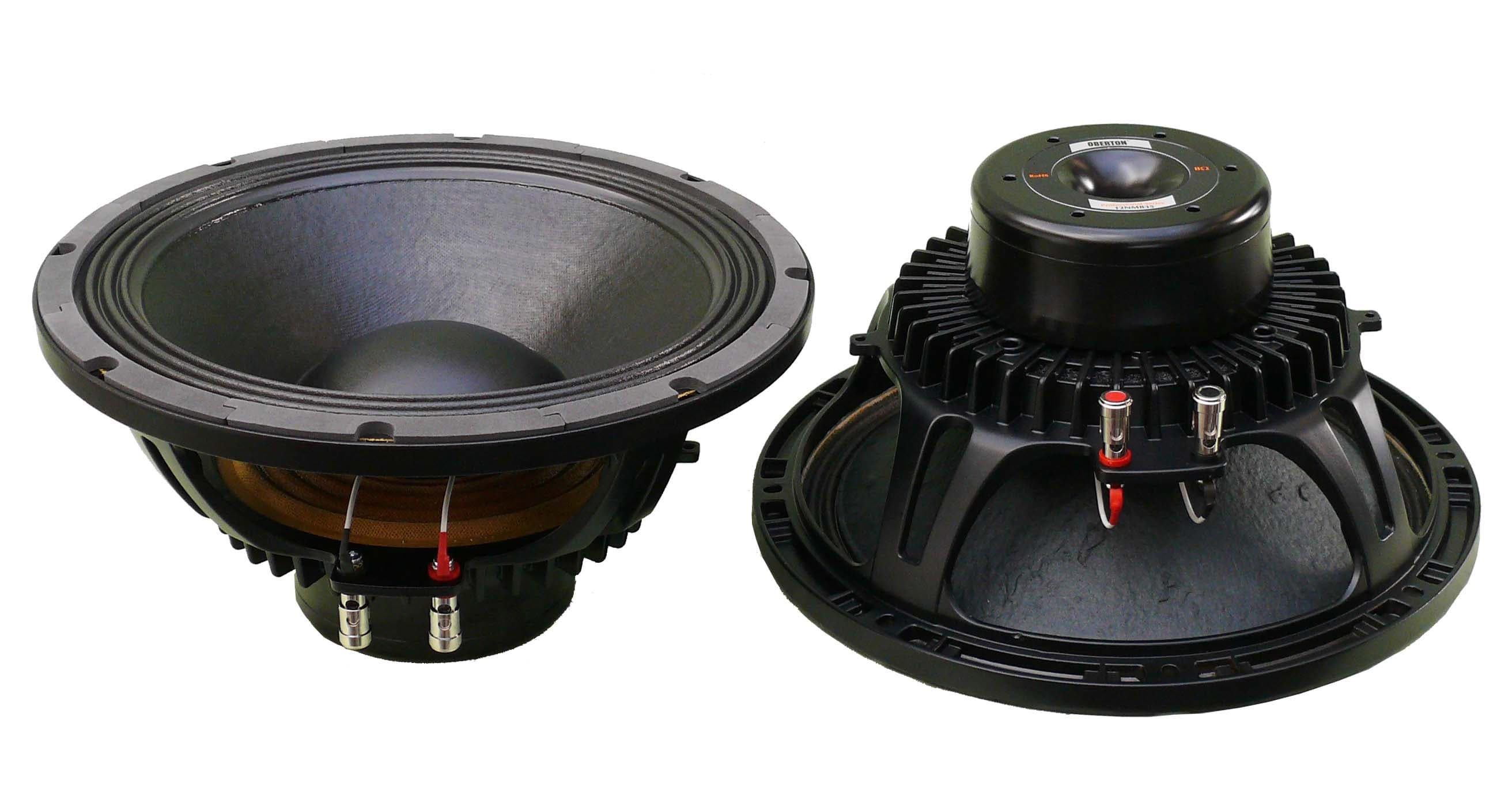

Oberton
12NMB35
12"
Xmax6.8mm+4%
Qts0.36+7%
BL17Tm+4%
Vas54.3L-21%
Qes0.38+6%
83%
Similarity
£213.97

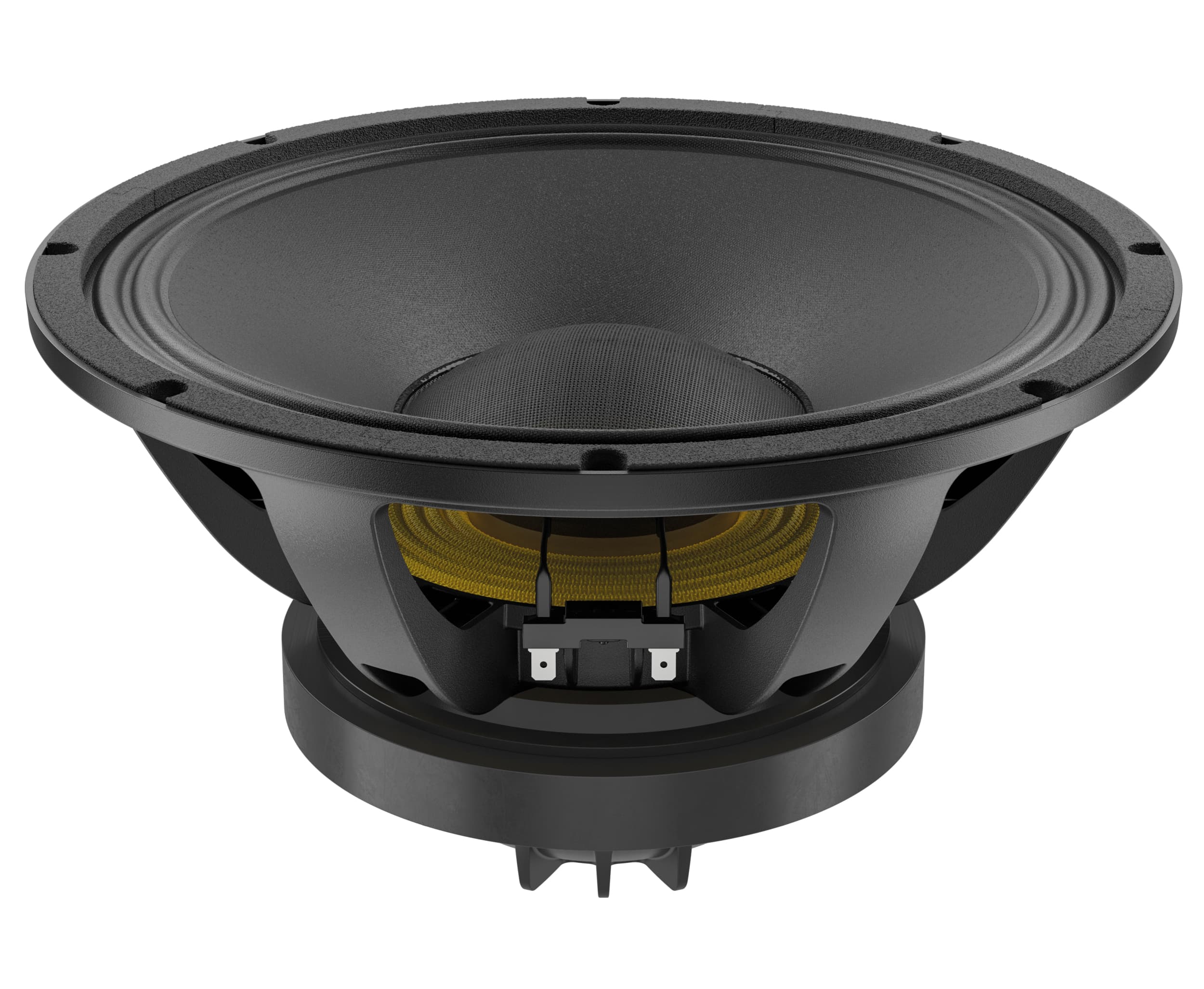

Lavoce
CAF123.00T
12"
Xmax6mm-8%
Qts0.36+7%
BL15.2Tm-7%
Vas71.4L+4%
Qes0.39+8%
83%
Similarity
£218.82

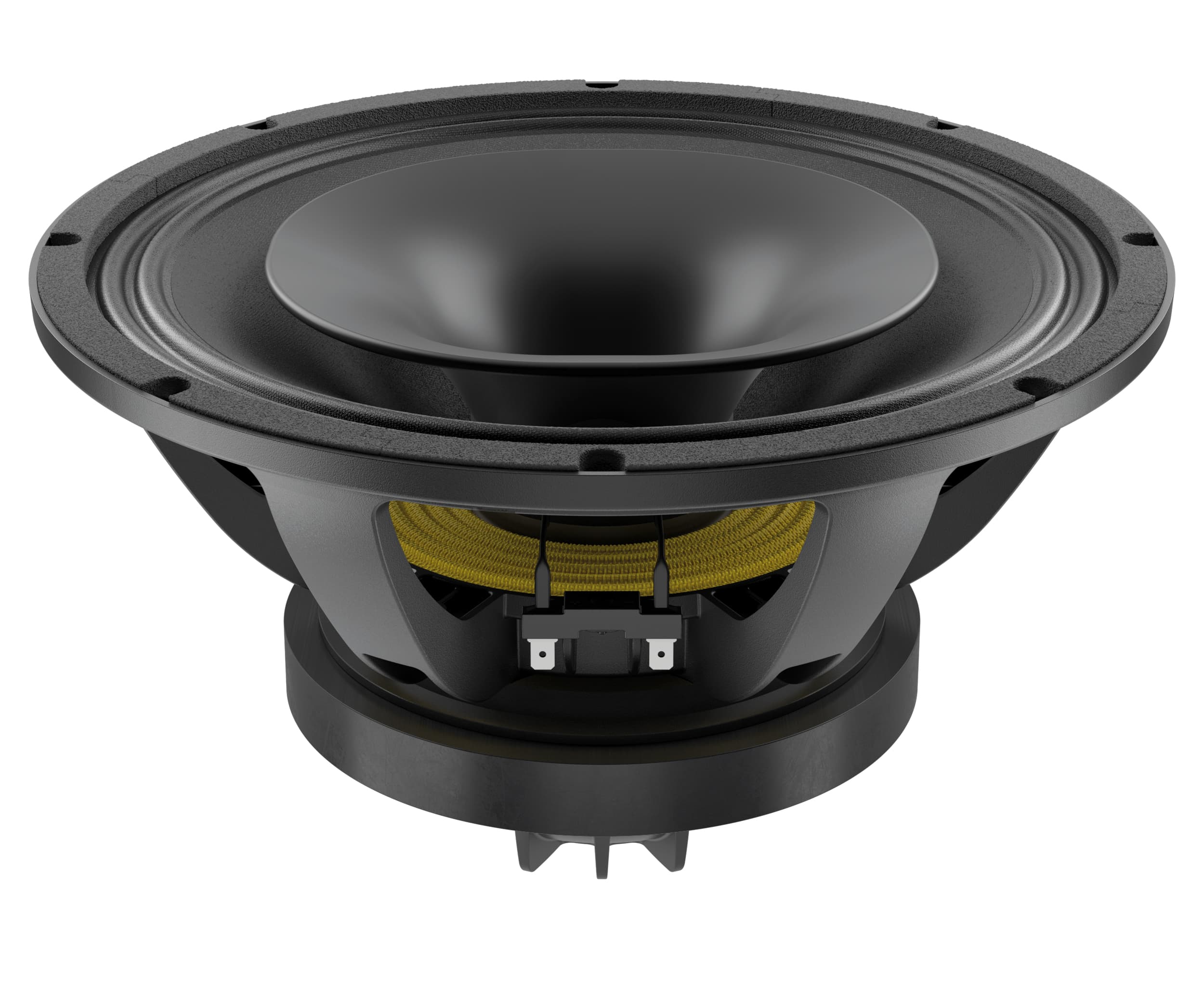

Lavoce
CAF123.00TH
12"
Xmax6mm-8%
Qts0.36+7%
BL15.2Tm-7%
Vas71.4L+4%
Qes0.39+8%
83%
Similarity
P.Audio
12BMA-500B
12"
Xmax5mm-23%
Qts0.34+1%
BL16.7Tm+2%
Vas61.4L-10%
Qes0.360%
81%
Similarity

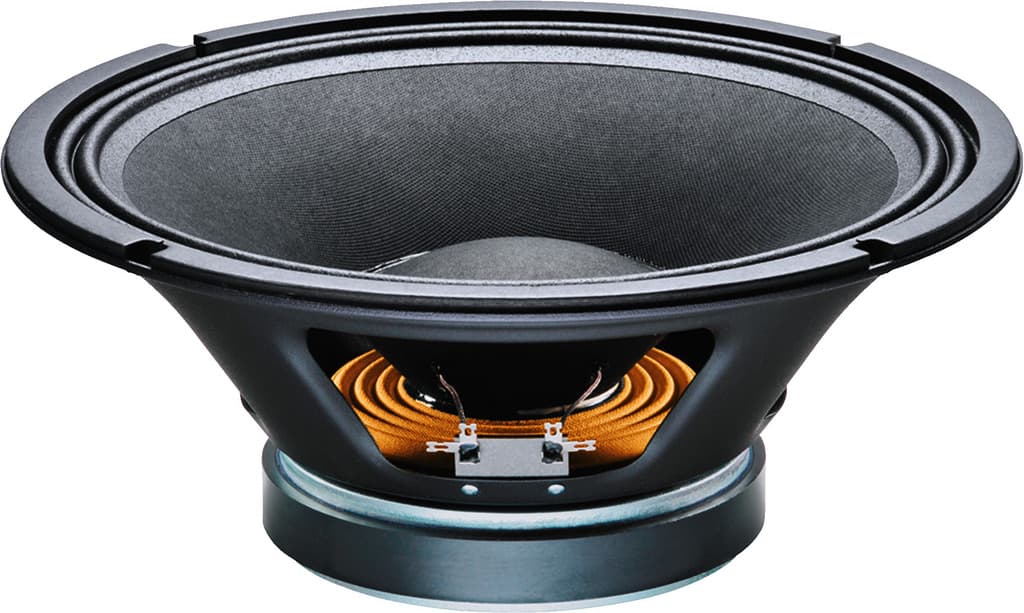

Monacor
