LF Driver12FCX series
B&C

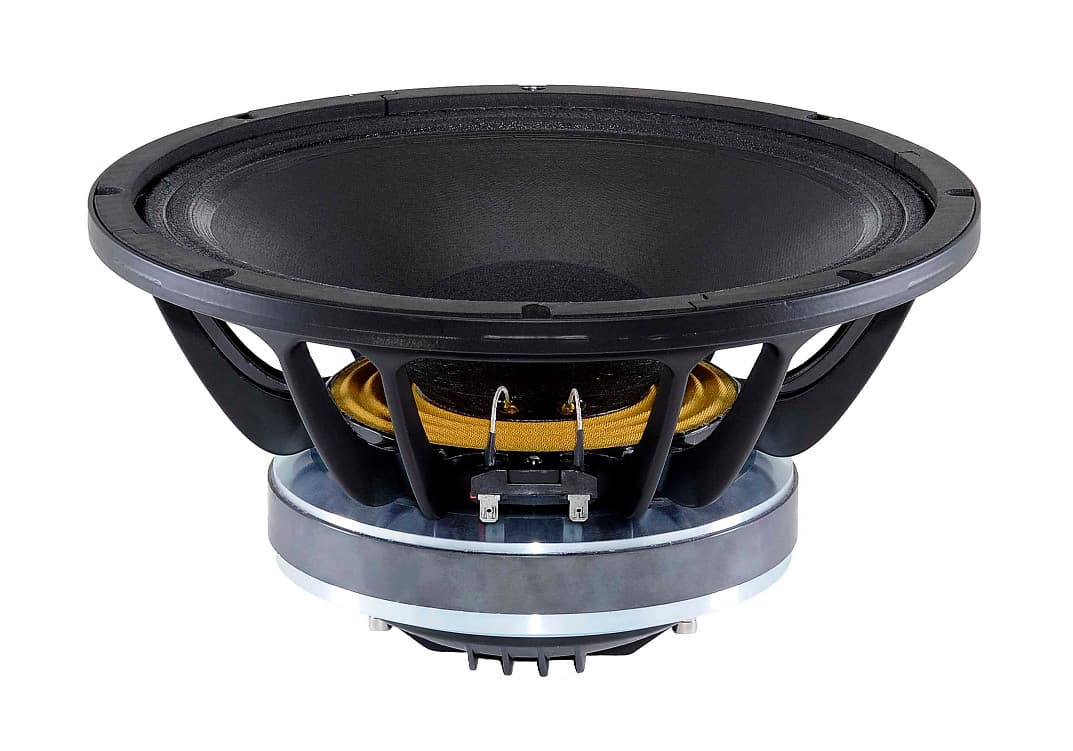

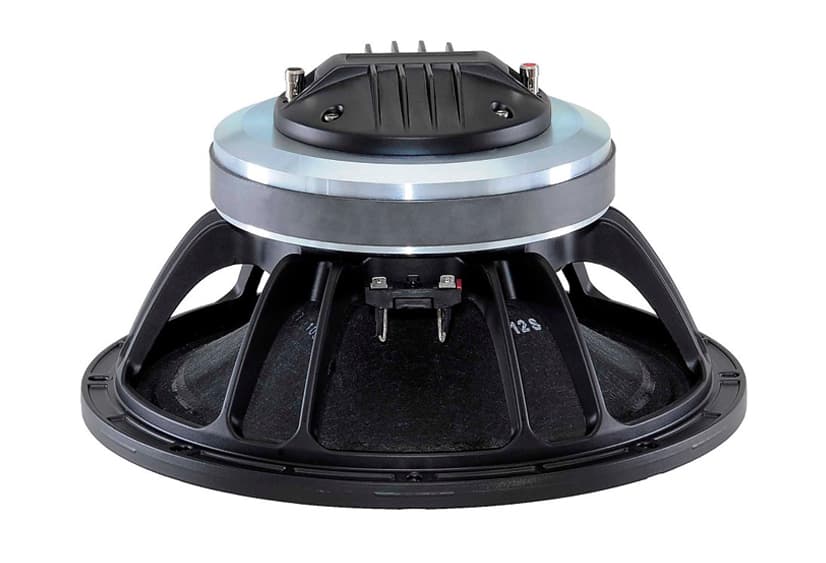

B&C 12FCX76
B&C 12FCX76 is a 12" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 47Hz, Qts 0.34, Vas 82L, Xmax 5mm, sensitivity 95.9dB, plus 261cm³ Vd and 134 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £294.14.
Size
12"
Impedance
8Ω
RMS Power
350W
Sensitivity
95.9dB
98.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
134
Vented alignment
Vd
261cm³

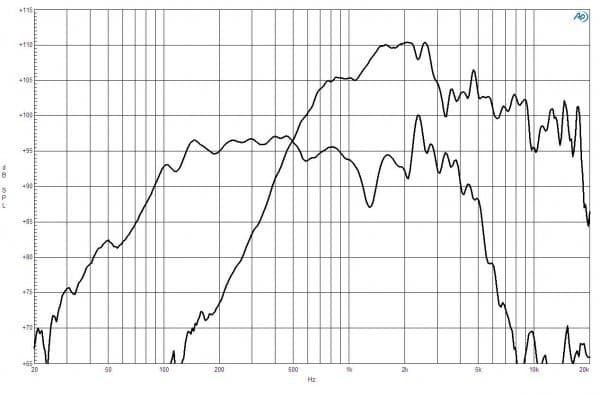

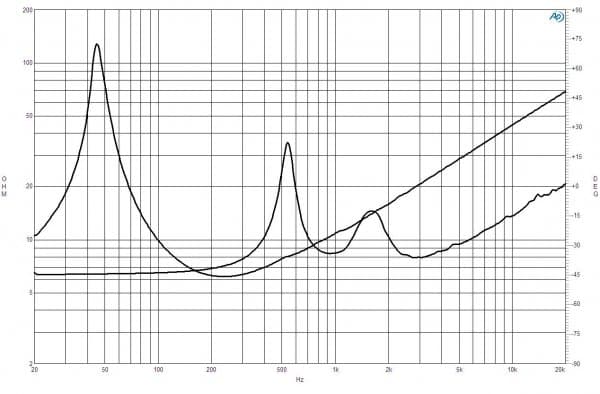

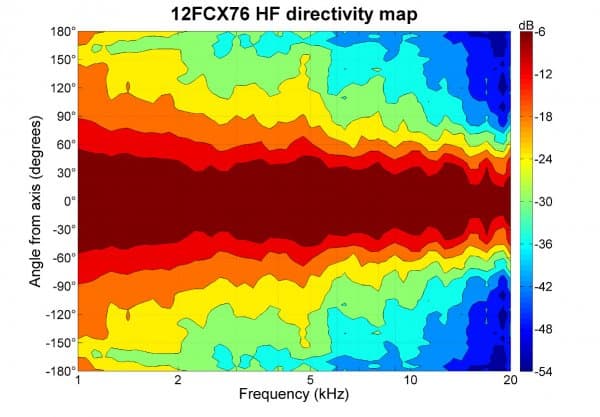

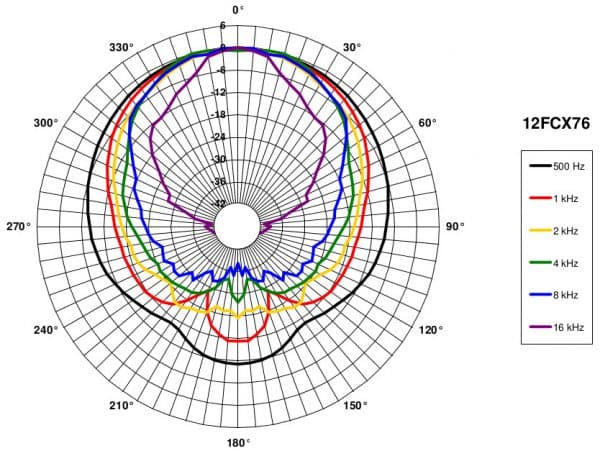

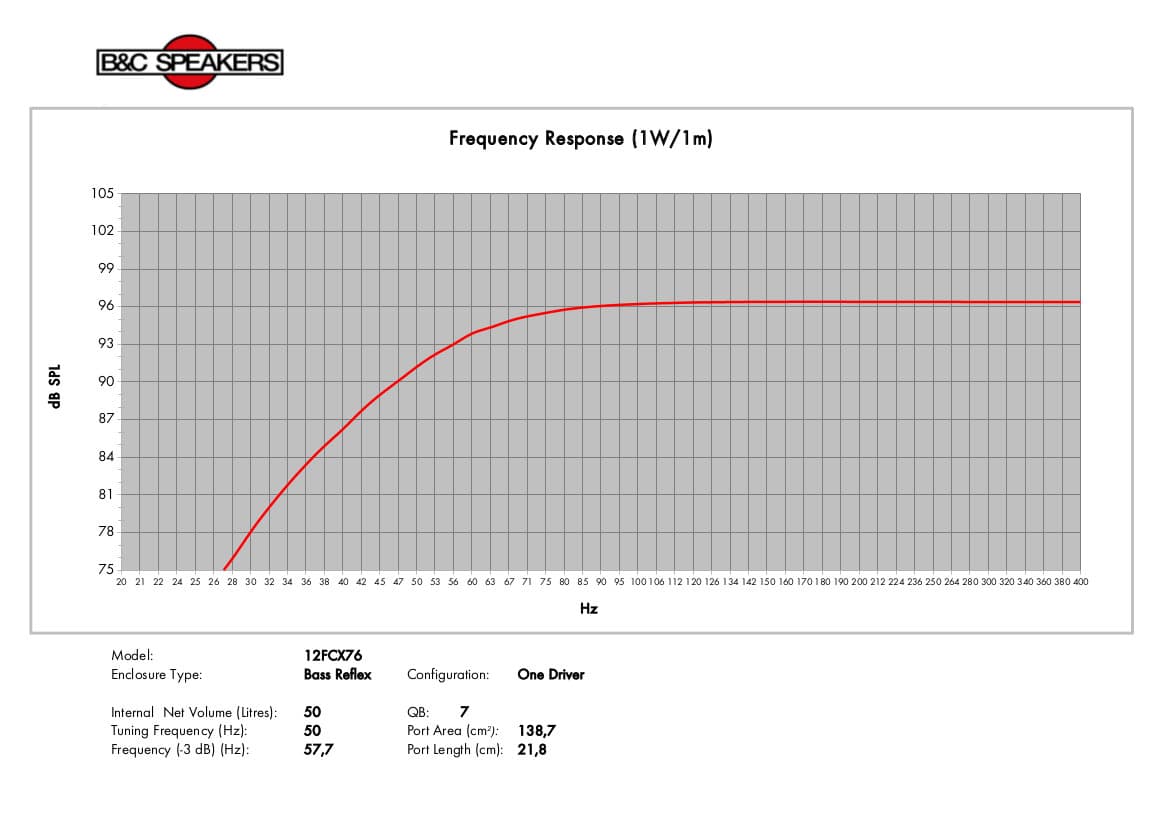

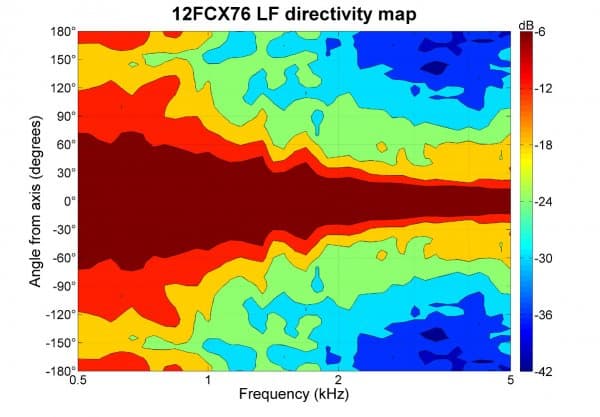

Frequency response
Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs47Hz
Qts0.34
Qes0.35
Qms11.0
Vas82.0L
Re5.3Ω
Le1.30mH
BL15.6Tm
Sd522cm²
Mms54g
Xmax5.0mm
SPL96dB
Power350W
Power Nominal350W
Impedance8Ω
Min Impedance6.3Ω
Voice Coil76mm
Flux Density1.00T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£294.14
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs47 Hz
Qts0.34
Qes0.35
Qms11.0
Vas82.0 L
Re5.3 Ω
Le1.30 mH
BL15.6 Tm
Sd522 cm²
Mms54 g
Xmax5.0 mm
SPL96 dB
Power350 W
Power Nominal350 W
Impedance8 Ω
Min Impedance6.3 Ω
Voice Coil76 mm
Flux Density1.00 T
HFSpecifications HF unit
Le0.14 mH
SPL106 dB
Power80 W
Power Nominal80 W
Impedance8 Ω
Min Impedance7.8 Ω
Xover1200 Hz
Voice Coil75 mm
Flux Density1.60 T
Additional Manufacturer Specs
Bl15.6 Tm
Fs47 Hz
Le1.3 mH
Re5.3 Ω
Sd522 cm² (80.9 in²)
Ebp134 Hz
Mms54 g
Qes0.35
Qms11
Qts0.34
Vas82 dm³ (2.98 ft³)
η02.3 %
Xvar5 mm
Winding Depth16.5 mm (0.65 in)
Former MaterialGlass Fibre
Nominal Diameter320 mm (12 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Woofer Cone TreatmentWP Waterproof Front Side
