LF Driver12FHX series
B&C

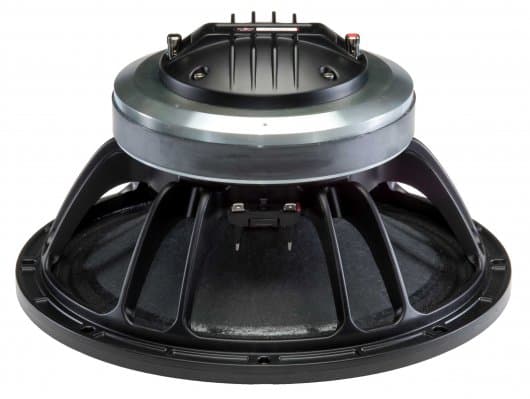

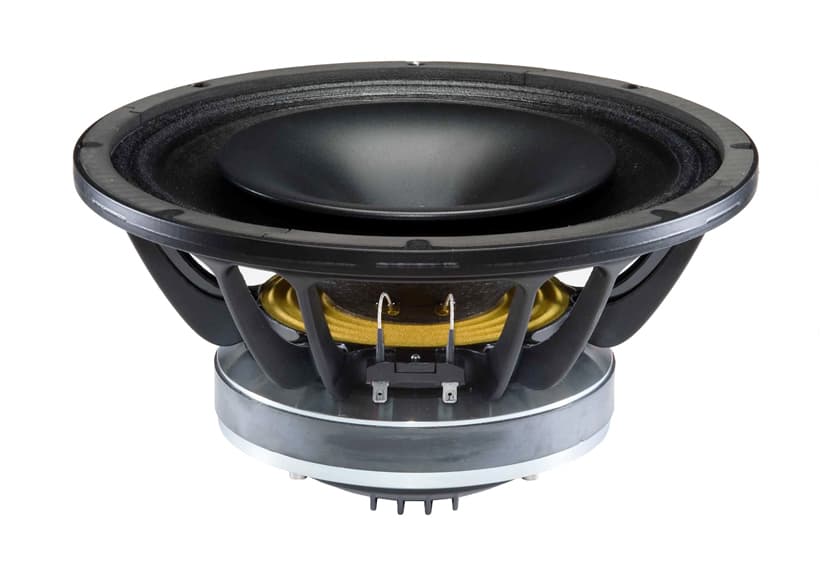

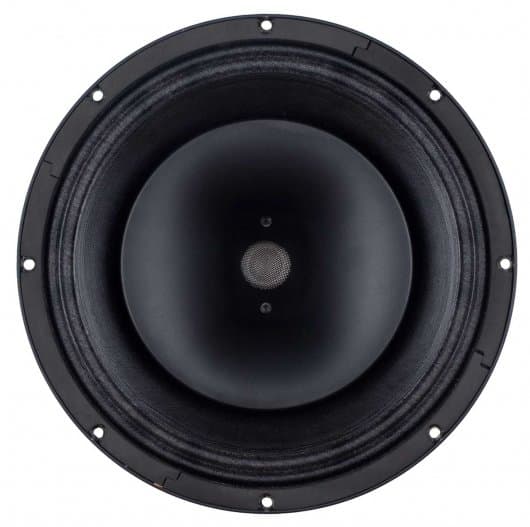

B&C 12FHX76
B&C 12FHX76 is a 12" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 48Hz, Qts 0.33, Vas 88L, Xmax 4mm, sensitivity 96.3dB, plus 209cm³ Vd and 133 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £291.66.
Size
12"
Impedance
8Ω
RMS Power
350W
Sensitivity
96.3dB
98.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
133
Vented alignment
Vd
209cm³

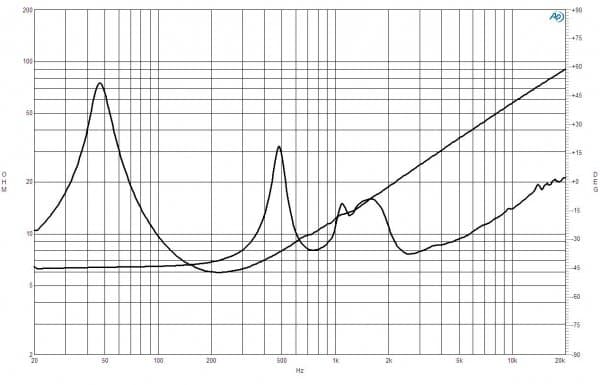

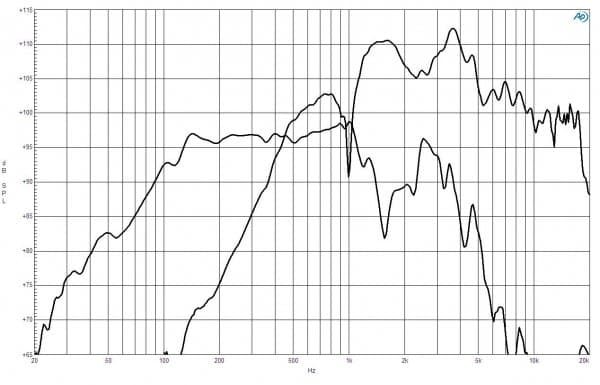

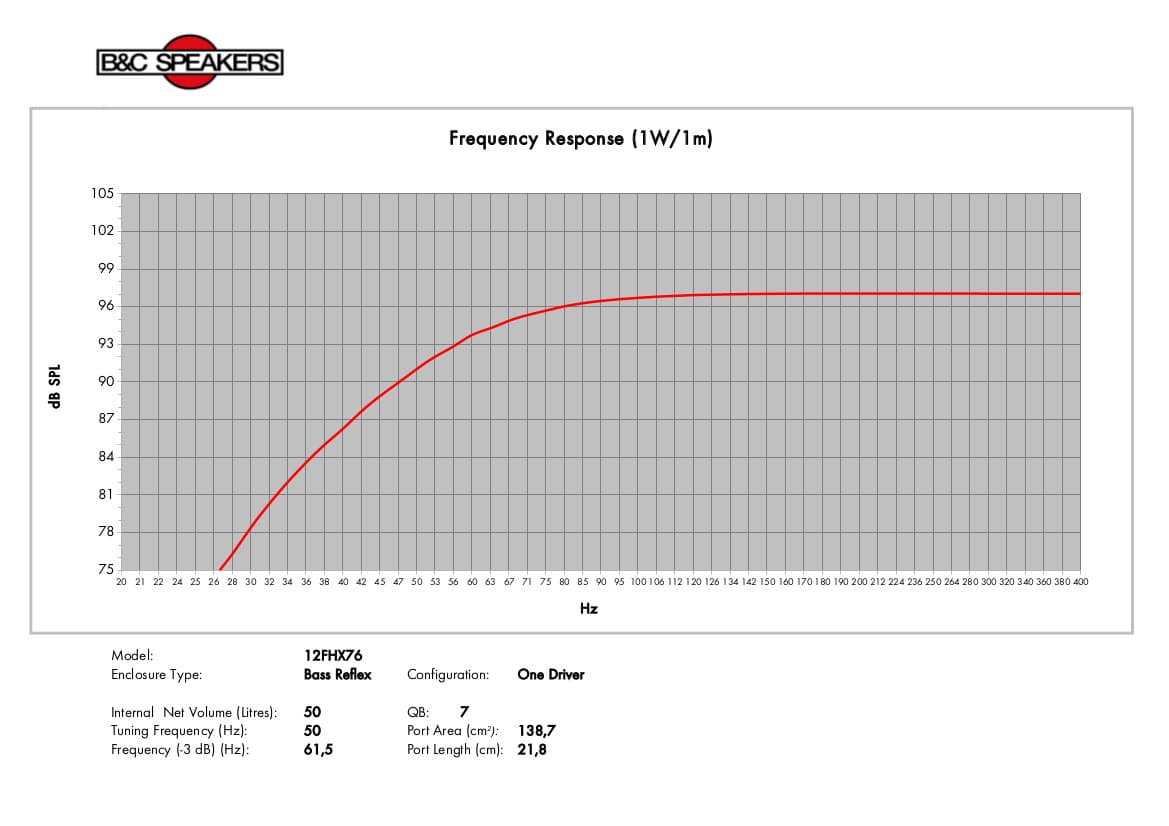

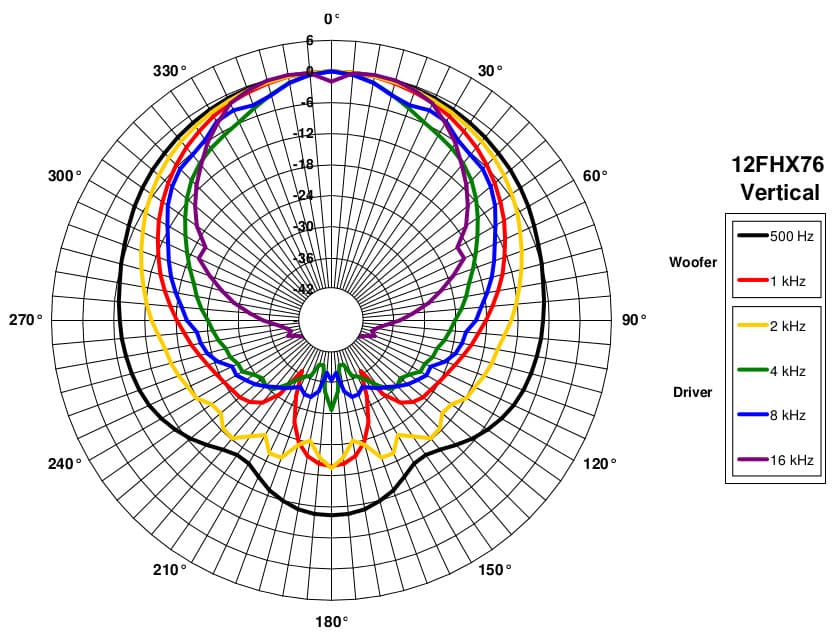

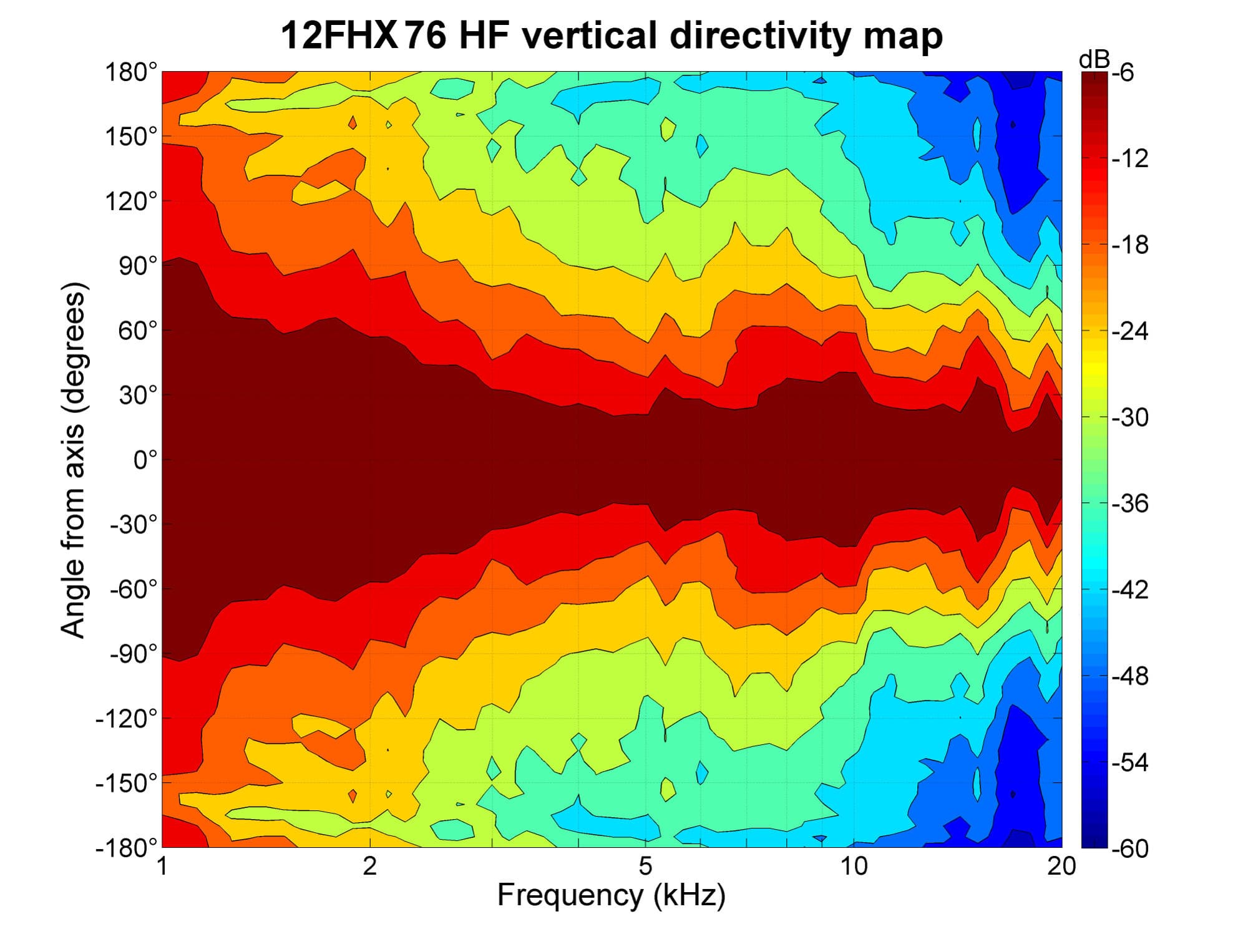

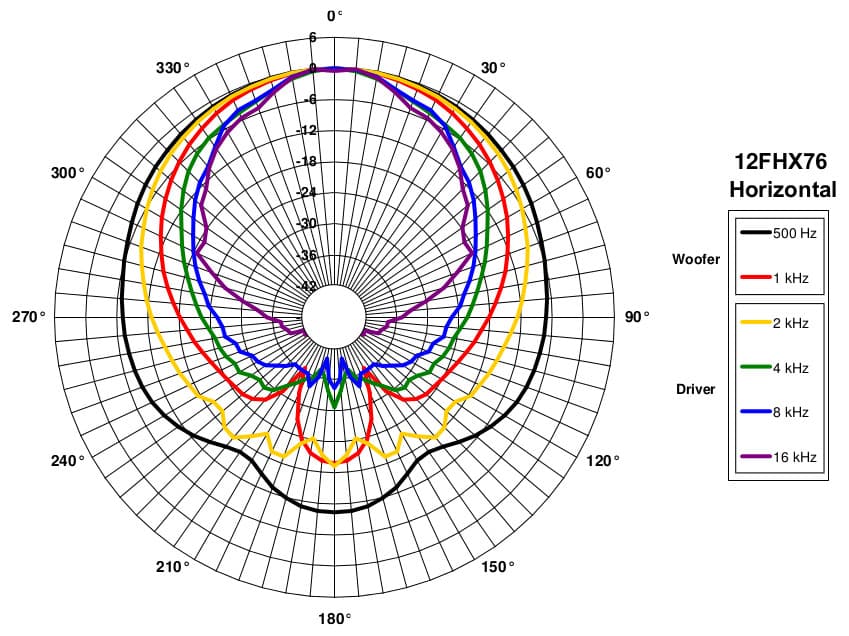

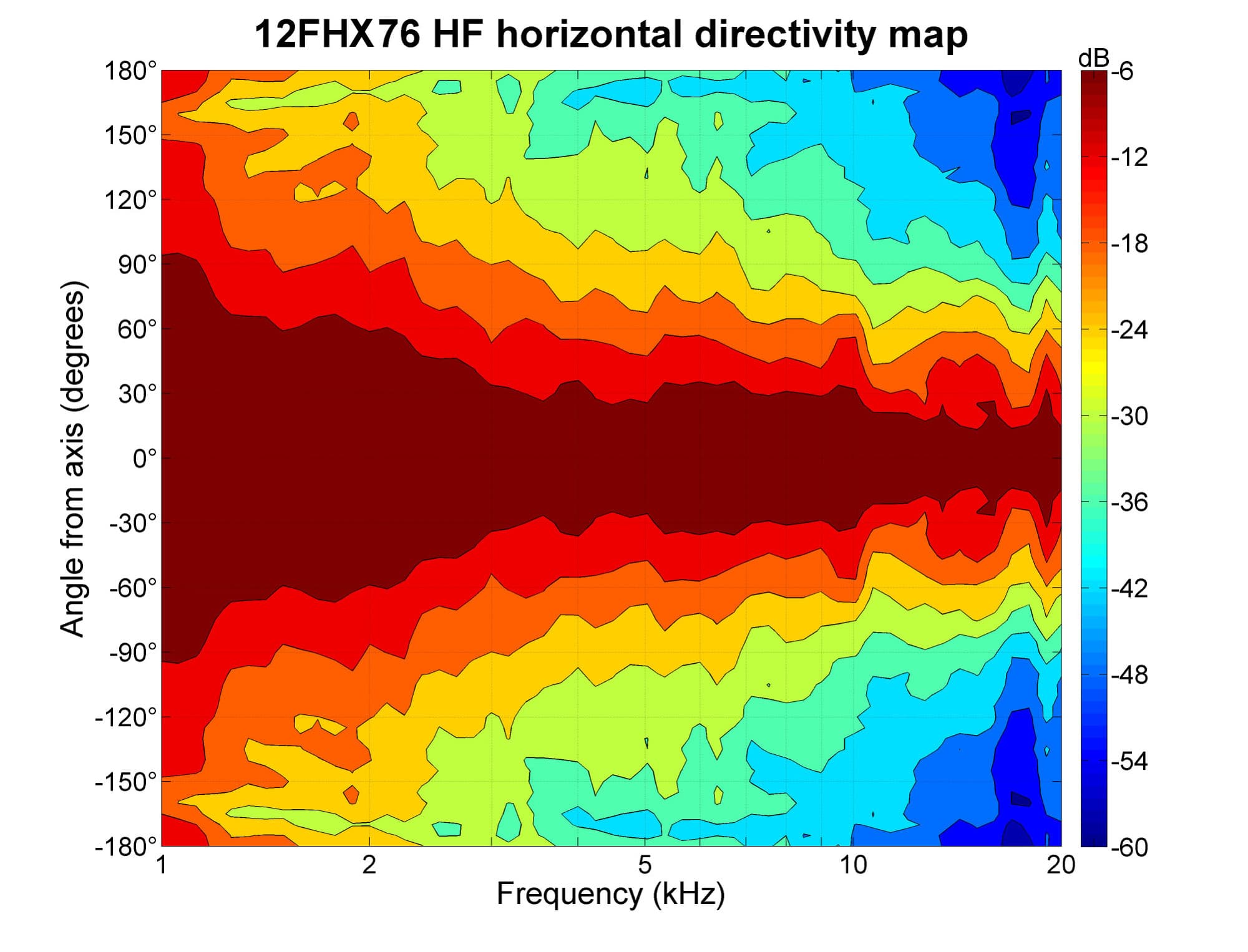

Frequency response
Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs48Hz
Qts0.33
Qes0.36
Qms5.4
Vas88.0L
Re5.2Ω
Le1.60mH
BL14.4Tm
Sd522cm²
Mms47g
Xmax4.0mm
SPL96dB
Power350W
Power Nominal350W
Impedance8Ω
Min Impedance6.0Ω
Voice Coil76mm
Flux Density1.00T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£291.66
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs48 Hz
Qts0.33
Qes0.36
Qms5.4
Vas88.0 L
Re5.2 Ω
Le1.60 mH
BL14.4 Tm
Sd522 cm²
Mms47 g
Xmax4.0 mm
SPL96 dB
Power350 W
Power Nominal350 W
Impedance8 Ω
Min Impedance6.0 Ω
Voice Coil76 mm
Flux Density1.00 T
HFSpecifications HF unit
Le0.14 mH
SPL106 dB
Power80 W
Power Nominal80 W
Impedance8 Ω
Min Impedance7.8 Ω
Xover1200 Hz
Voice Coil75 mm
Flux Density1.60 T
Additional Manufacturer Specs
Bl14.4 Tm
Fs48 Hz
Le1.6 mH
Re5.2 Ω
Sd522 cm² (80.9 in²)
Ebp133 Hz
Mms47 g
Qes0.36
Qms5.4
Qts0.33
Vas88 dm³ (3.1 ft³)
η02.7 %
Xvar4 mm
Winding Depth16.5 mm (0.65 in)
Former MaterialGlass Fibre
Nominal Diameter320 mm (12 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Woofer Cone TreatmentWP Waterproof Front Side
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
12FHX76
12"
Best current price
£291.66
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
70%
Similarity
78% cheaper£63.26
Lavoce
WSN122.50
12"
Lower price
Xmax4.7mm+18%
Qts0.36+9%
BL15.8Tm+10%
Vas69.4L-21%
Qes0.39+8%
72%
Similarity
78% cheaper£63.48
Celestion
TF1220
12"
Lower price
Xmax4mm0%
Qts0.39+18%
BL13.9Tm-3%
Vas72.8L-17%
Qes0.44+23%
64%
Similarity
73% cheaper£78.54
B&C
12CL64
12"
Lower price
Xmax4.5mm+13%
Qts0.3-9%
BL17.5Tm+22%
Vas64L-27%
Qes0.32-11%
50%
Similarity
73% cheaper£79.00

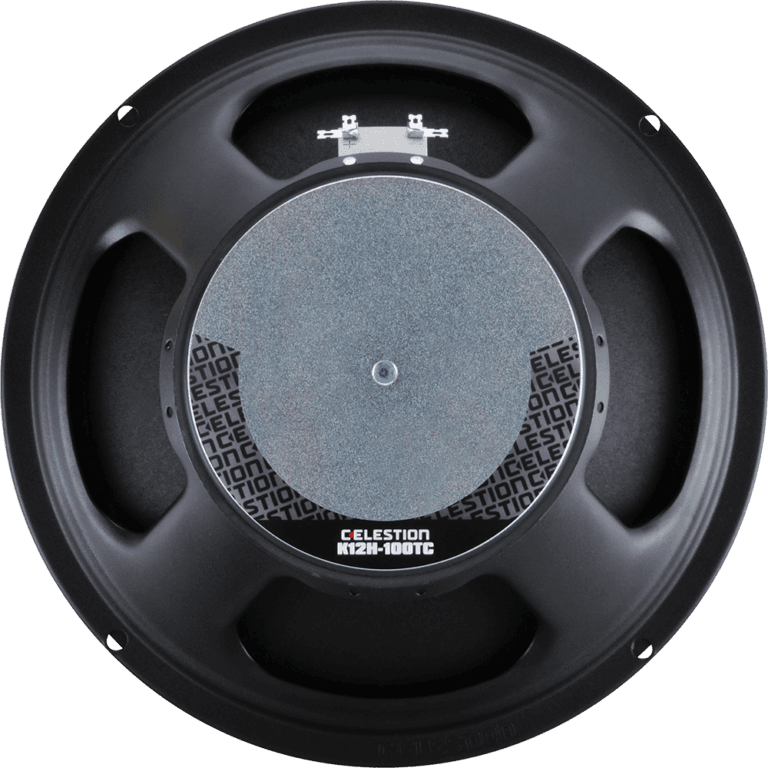

Celestion
K12H-100TC
12"
Lower price
Xmax3mm-25%
Qts0.4+21%
BL13.6Tm-6%
Vas72L-18%
Qes0.47+31%
71%
Similarity
73% cheaper£80.00
Celestion
TF1225
12"
Lower price
Xmax4.5mm+13%
Qts0.37+12%
BL14.3Tm-1%
Vas67.3L-24%
Qes0.42+17%
59%
Similarity
71% cheaper£85.00
Celestion
TF1230S
12"
Lower price
Xmax4.5mm+13%
Qts0.37+13%
BL16.6Tm+15%
Vas54.4L-38%
Qes0.42+17%
57%
Similarity
62% cheaper£112.00
Eminence
KAPPA-12A
12"
Lower price
Xmax3.2mm-20%
Qts0.27-18%
BL15.2Tm+6%
Vas112.1L+27%
Qes0.28-22%
81%
Similarity
56% cheaper£127.22
Eminence
DELTA PRO
12"
Lower price
Xmax4.6mm+15%
Qts0.35+6%
BL15.3Tm+6%
Vas81.7L-7%
Qes0.37+3%
62%
Similarity
55% cheaper£130.60
FaitalPRO
12PR310
12"
Lower price
Xmax4.9mm+23%
Qts0.4+21%
BL14.4Tm0%
Vas73.5L-16%
Qes0.41+14%
73%
Similarity
54% cheaper£134.63

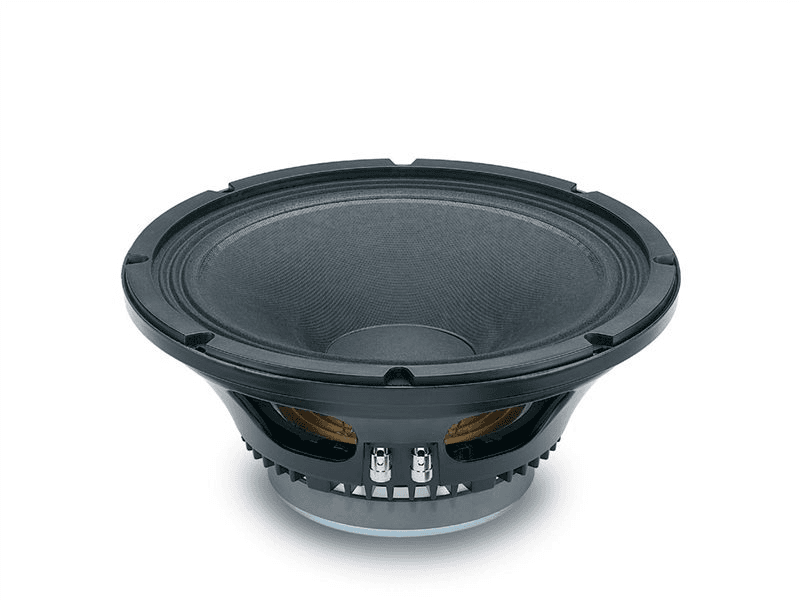

Eighteen Sound
