Oberton 12CX1 8Ω
8 Ω · 60–16000 Hz
No current price
- Fs
- 58Hz
- Xmax
- 4.3mm
- SPL
- 97dB
- Pe
- 300W
- BL
- 13.9T·m
- Vd
- 219cm³
- Qts
- 0.37
- Vas
- 68L

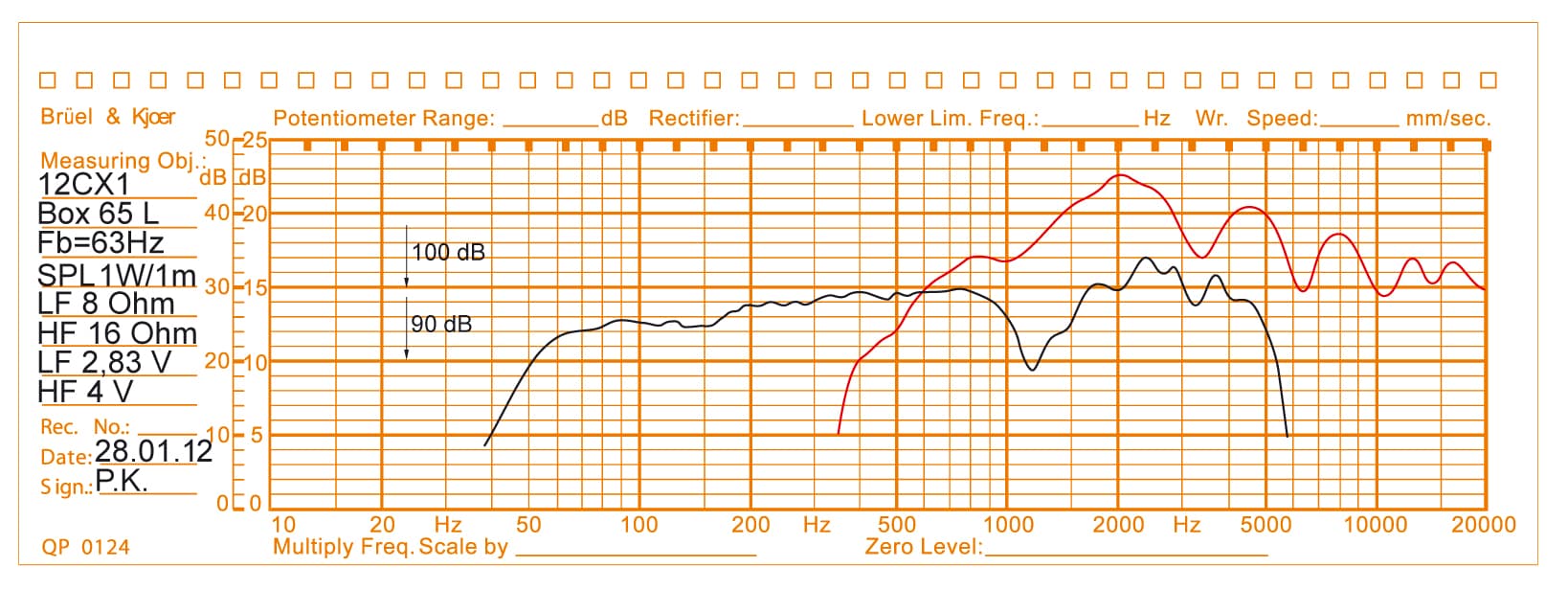

Published graphs
Oberton 12CX1 is a 12-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.37, Vas 68.5 L, Xmax 4.3 mm, sensitivity 97.2 dB, plus 219 cm³ Vd and 144 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.37
- Qes
- 0.40
- Qms
- 4.8
- Vas
- 68.5L
- Re
- 5.2Ω
- Le
- 0.74mH
Motor and cone
- BL
- 13.9T·m
- Sd
- 515cm²
- Mms
- 41g
- Xmax
- 4.3mm
- Vd †
- 219cm³
- Voice coil
- 65mm
- Flux density
- 1T
Power and response
- Sensitivity †
- 97.2dB
- Power
- 300W
- Impedance
- 8Ω
- Range
- 60–16000Hz
- EBP †
- 144 · Leans vented

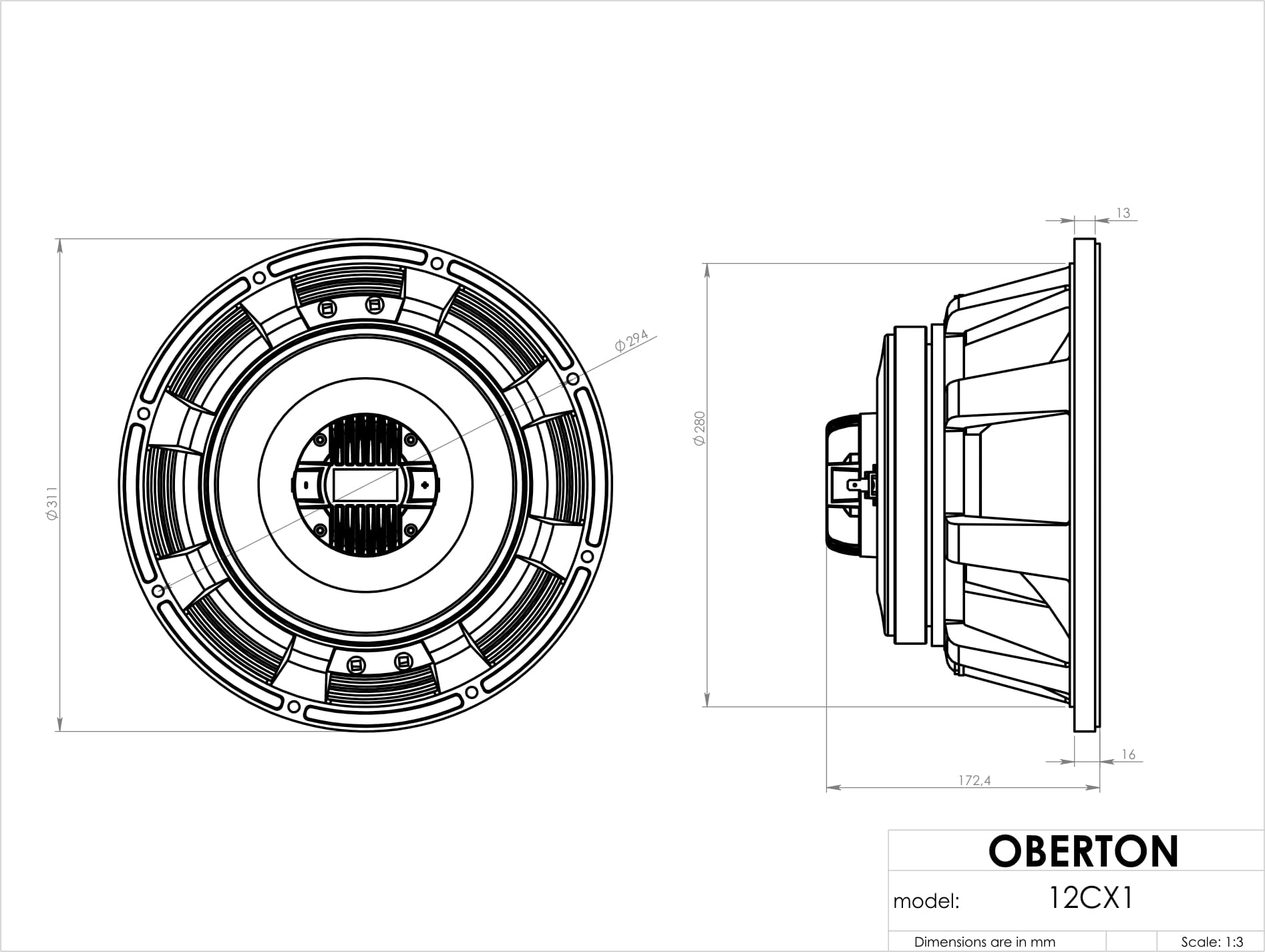

Size and mounting
- Diameter
- 311mm
- Cutout
- 280mm
- Bolt circle
- 294mm
- Depth
- 173mm
- Weight
- 7.8kg
Other published values
- Cms
- 0.18mm/N
- Power Program
- 600
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 12″
- BL
- 13.9T·m
- Fs
- 58Hz
- Le
- 0.74mH
- Re
- 5.2Ω
- Sd
- 515cm²
- Cms
- 0.18mm/N
- Mms
- 41g
- Qes
- 0.40
- Qms
- 4.8
- Qts
- 0.37
- SPL
- 97.2dB
- Vas
- 68.5L
- Xmax
- 4.3mm
- Power
- 300W
- Impedance
- 8Ω
- Flux density
- 1T
- Low limit
- 60Hz
- Power Program
- 600
- Calculated sensitivity †
- 97.2dB
- High limit
- 16000Hz
- Voice coil
- 65mm
- Weight
- 7.8kg
- Diameter
- 311mm
- Depth
- 173mm
- Cutout
- 280mm
- Bolt circle
- 294mm
