Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 12 C 2 CP 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica
Sica 12 C 2 CP

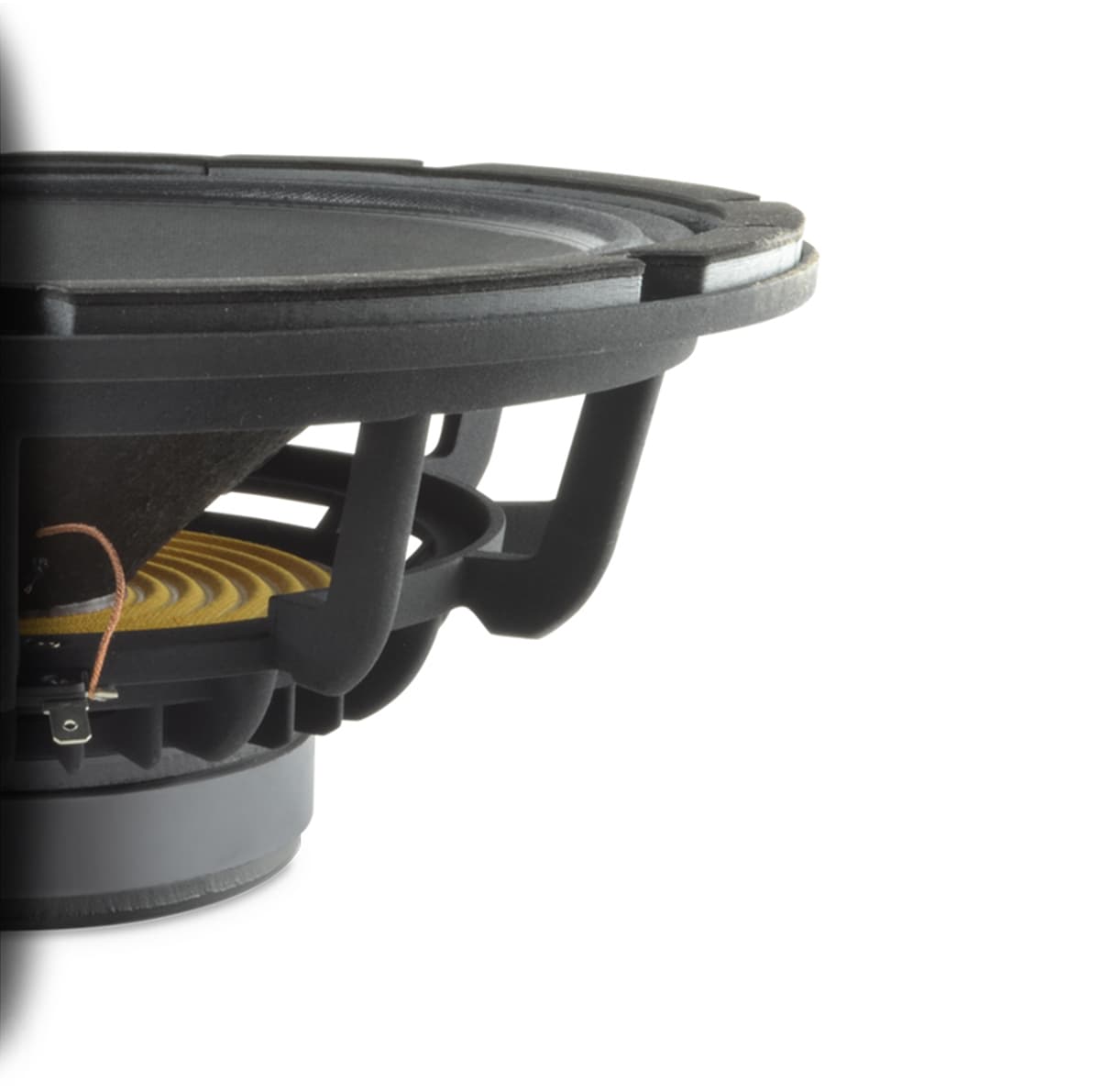

Sica 12 C 2 CP is a 12" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 58Hz, Qts 0.45, Vas 74.3L, Xmax 4.5mm, sensitivity 96.8dB, plus 239cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
200W
Sensitivity
96.8dB
98.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
119
Vented alignment
Vd
239cm³
T/S Parameters
Valid
Fs58Hz
Qts0.45
Qes0.49
Qms5.6
Vas74.3L
Re6.2Ω
Le0.83mH
BL13.7Tm
Sd531cm²
Mms40g
Xmax4.5mm
SPL97dB
Power200W
Impedance8Ω
Voice Coil50mm
Flux Density1.08T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.8kg
Diameter320.0mm
Overall Depth130.4mm
Cutout Diameter284.0mm
Bolt Circle Diameter301.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
12 C 2 CP
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
92%
Similarity
Lavoce
FBASS12-20
12"
Xmax4.3mm-4%
Qts0.46+2%
BL13.3Tm-3%
Vas75.4L+1%
Qes0.51+4%
90%
Similarity
£80.00
CIARE
FXI12
12"
Xmax5mm+11%
Qts0.44-2%
BL13.9Tm+1%
Vas70L-6%
Qes0.490%
88%
Similarity
£105.00
Eminence
DELTA-12LFA
12"
Xmax4.8mm+7%
Qts0.47+4%
BL14.1Tm+3%
Vas67.9L-9%
Qes0.51+4%
80%
Similarity
£105.64
Eminence
DELTA-12LFC
12"
Xmax4.8mm+7%
Qts0.44-2%
BL10.9Tm-20%
Vas63.7L-14%
Qes0.47-4%
79%
Similarity
Monacor
TF1220/8
12"
Xmax4mm-11%
Qts0.39-14%
BL13.9Tm+2%
Vas72.8L-2%
Qes0.44-10%
79%
Similarity
£63.48
Celestion
TF1220
12"
Xmax4mm-11%
Qts0.39-14%
BL13.9Tm+2%
Vas72.8L-2%
Qes0.44-10%
78%
Similarity
£130.60
FaitalPRO
12PR310
12"
Xmax4.9mm+9%
Qts0.4-11%
BL14.4Tm+5%
Vas73.5L-1%
Qes0.41-16%
78%
Similarity
£64.07
PRV Audio
12W750A
12"
Xmax3.6mm-20%
Qts0.43-4%
BL14.3Tm+4%
Vas81L+9%
Qes0.44-10%
78%
Similarity
£72.44
Peerless
FSL-1225R02-08
12"
Xmax5.3mm+17%
Qts0.44-2%
BL14.9Tm+9%
Vas54.8L-26%
Qes0.49-1%
77%
Similarity
Monacor
TF1225/8
12"
Xmax4.5mm0%
Qts0.37-18%
BL14.3Tm+5%
Vas67.3L-9%
Qes0.42-14%
77%
Similarity
£80.00
Celestion
TF1225
12"
Xmax4.5mm0%
Qts0.37-18%
BL14.3Tm+5%
Vas67.3L-9%
Qes0.42-14%
77%
Similarity
P.Audio
12BMA-300B
12"
Xmax4mm-11%
Qts0.49+9%
BL13.7Tm0%
Vas54.4L-27%
Qes0.53+8%
