LF DriverFE series
FaitalPRO

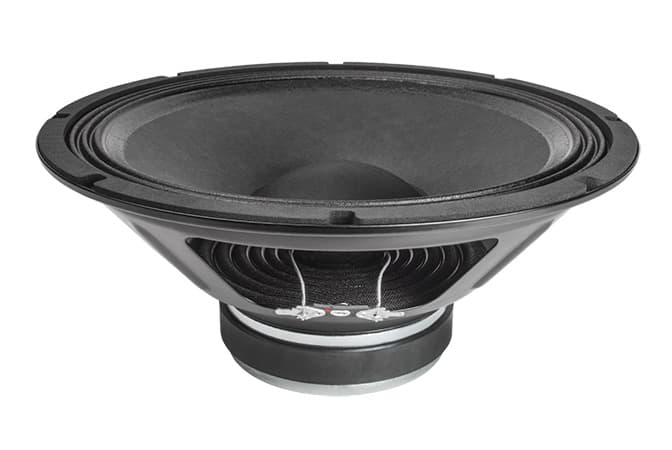

FaitalPRO 12FE300
FaitalPRO 12FE300 is a 12" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 47Hz, Qts 0.51, Vas 83.7L, Xmax 5.1mm, sensitivity 94.2dB, plus 275cm³ Vd and 89 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £64.00.
Size
12"
Impedance
8Ω
RMS Power
250W
Sensitivity
94.2dB
97.0dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
89
Either alignment
Vd
275cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees240 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence1,052 selected pixels of 1,324 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,431 selected pixels of 1,431 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,507 selected pixels of 1,507
T/S Parameters
Valid
Fs47Hz
Qts0.51
Qes0.53
Qms15.5
Vas83.7L
Re5.1Ω
Le0.80mH
BL12.5Tm
Sd543cm²
Mms56g
Xmax5.1mm
SPL94dB
Power250W
Impedance8Ω
F Low50Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£64.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.5kg
Diameter311.0mm
Overall Depth133.0mm
Cutout Diameter284.0mm
Bolt Circle Diameter294.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
12FE300
12"
Best current price
£64.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
80%
Similarity
7% cheaper£59.63
Peerless
FSL-1220R02-08
12"
Lower price
Xmax5.1mm0%
Qts0.55+8%
BL13.3Tm+6%
Vas61.1L-27%
Qes0.59+11%
57%
Similarity
£63.48
Celestion
TF1220
12"
Xmax4mm-21%
Qts0.39-24%
BL13.9Tm+11%
Vas72.8L-13%
Qes0.44-17%
60%
Similarity
£63.59
PRV Audio
12W750A
12"
Xmax3.6mm-29%
Qts0.43-16%
BL14.3Tm+14%
Vas81L-3%
Qes0.44-17%
80%
Similarity
5% more£67.34
PRV Audio
12W800A
12"
Higher price
Xmax5.7mm+13%
Qts0.47-8%
BL12.7Tm+2%
Vas93.9L+12%
Qes0.49-8%
56%
Similarity
24% more£79.56
Celestion
TRUVOX 1225
12"
Higher price
Xmax4.8mm-6%
Qts0.62+22%
BL13.5Tm+8%
Vas54.1L-35%
Qes0.68+28%
77%
Similarity
25% more£80.00
CIARE
FXI12
12"
Higher price
Xmax5mm-1%
Qts0.44-14%
BL13.9Tm+11%
Vas70L-16%
Qes0.49-8%
66%
Similarity
46% more£93.61
Eminence
BETA-12A
12"
Higher price
Xmax4.4mm-13%
Qts0.46-10%
BL10.8Tm-14%
Vas120.1L+43%
Qes0.5-6%
76%
Similarity
60% more£102.50
Celestion
TF1230
12"
Higher price
Xmax5mm-1%
Qts0.52+1%
BL13Tm+4%
Vas51.1L-39%
Qes0.65+23%
79%
Similarity
64% more£104.85
Eminence
DELTA-12LFA
12"
Higher price
Xmax4.8mm-5%
Qts0.47-8%
BL14.1Tm+13%
Vas67.9L-19%
Qes0.51-4%
71%
Similarity
64% more£104.85
Eminence
DELTA-12LFC
12"
Higher price
Xmax4.8mm-5%
Qts0.44-14%
BL10.9Tm-13%
Vas63.7L-24%
Qes0.47-11%
70%
Similarity
102% more£128.97
CIARE
CMI320ND
12"
Higher price
Xmax5mm-1%
Qts0.43-16%
BL10.6Tm-15%
Vas70L-16%
Qes0.44-17%
64%
Similarity
104% more£130.60
FaitalPRO
12PR310
12"
Higher price
Xmax4.9mm-3%
Qts0.4-22%
BL14.4Tm+15%
Vas73.5L-12%
Qes0.41-23%
