Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespLavoce FBASS12-20 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFBASS12 series
Lavoce
Lavoce FBASS12-20

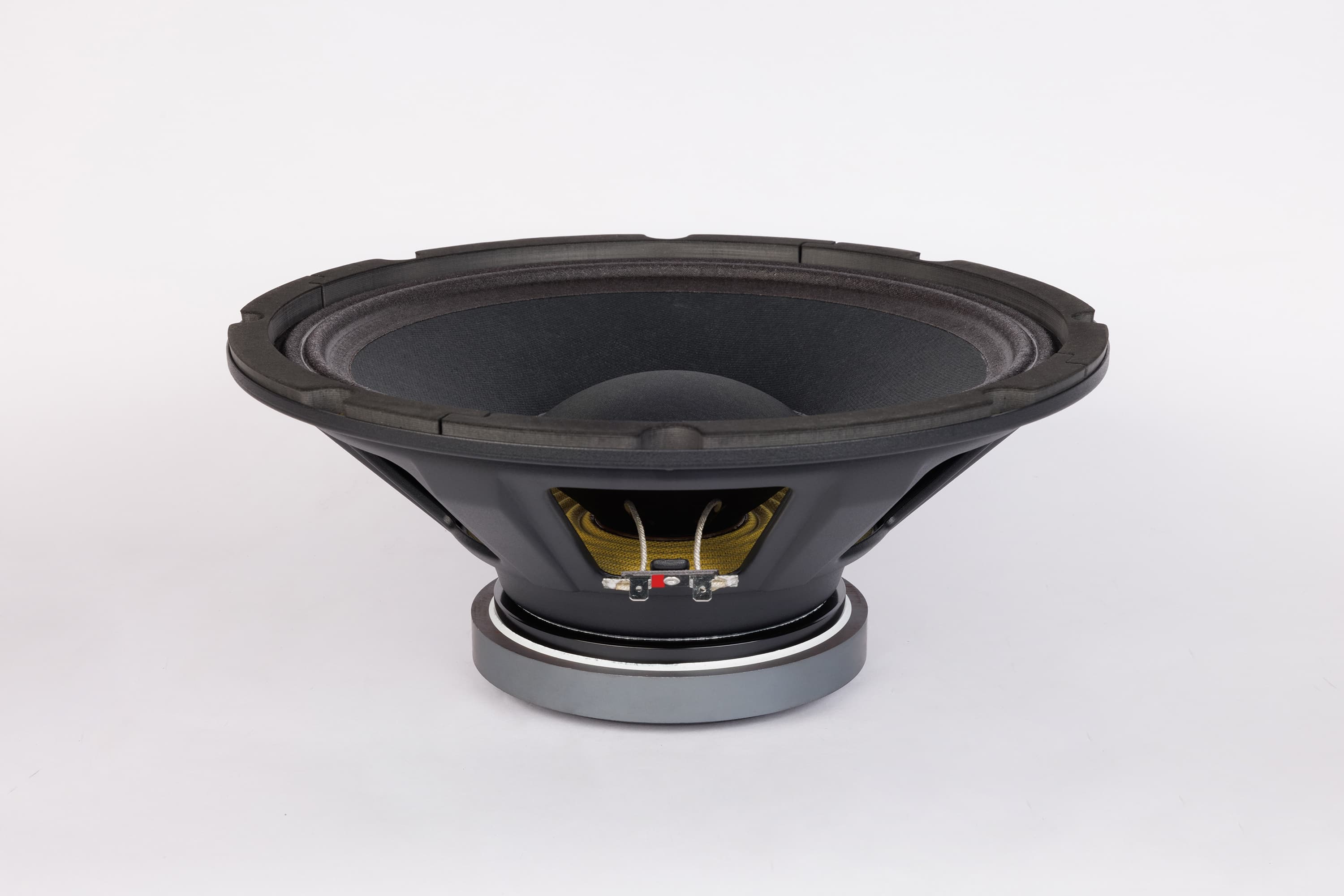

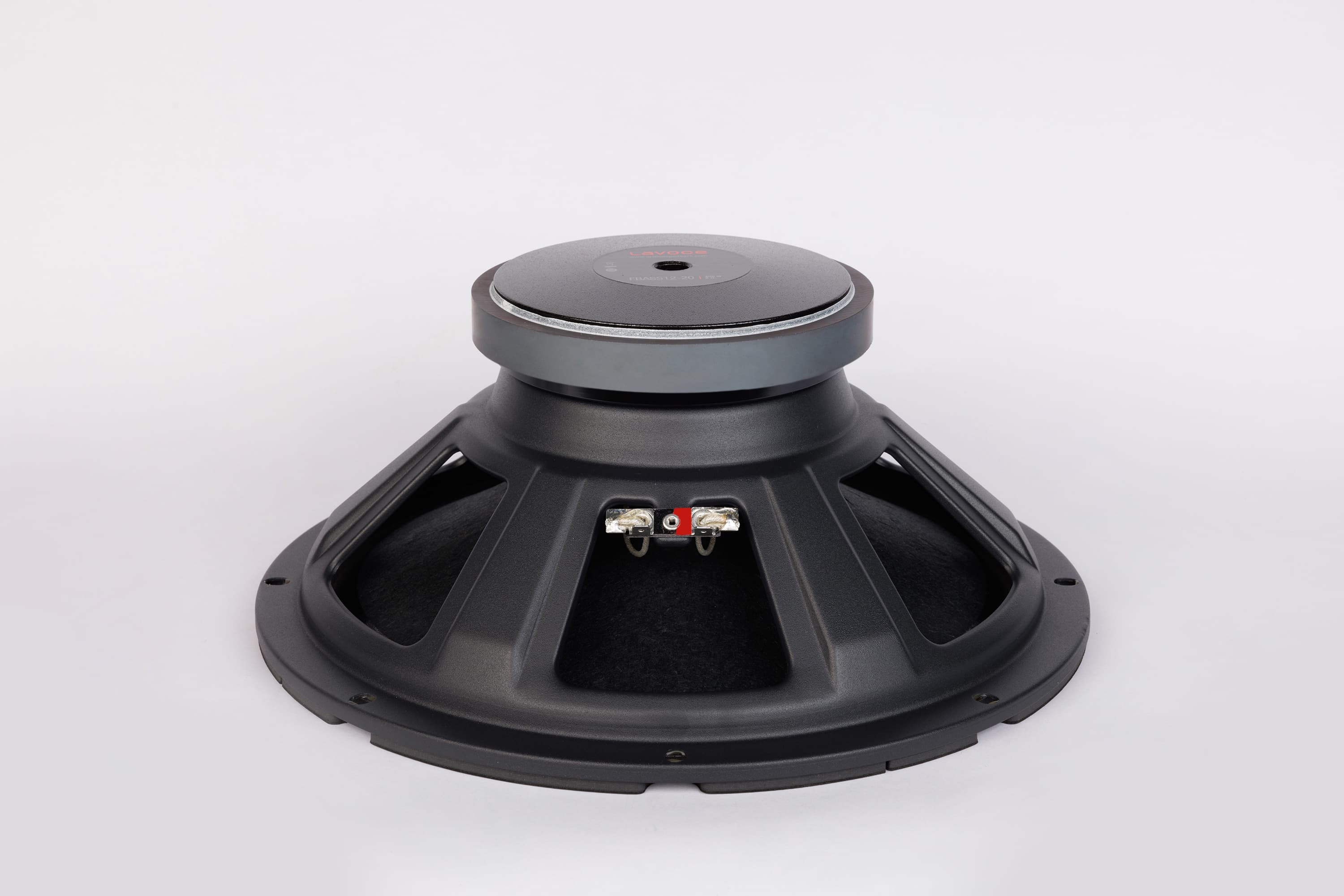

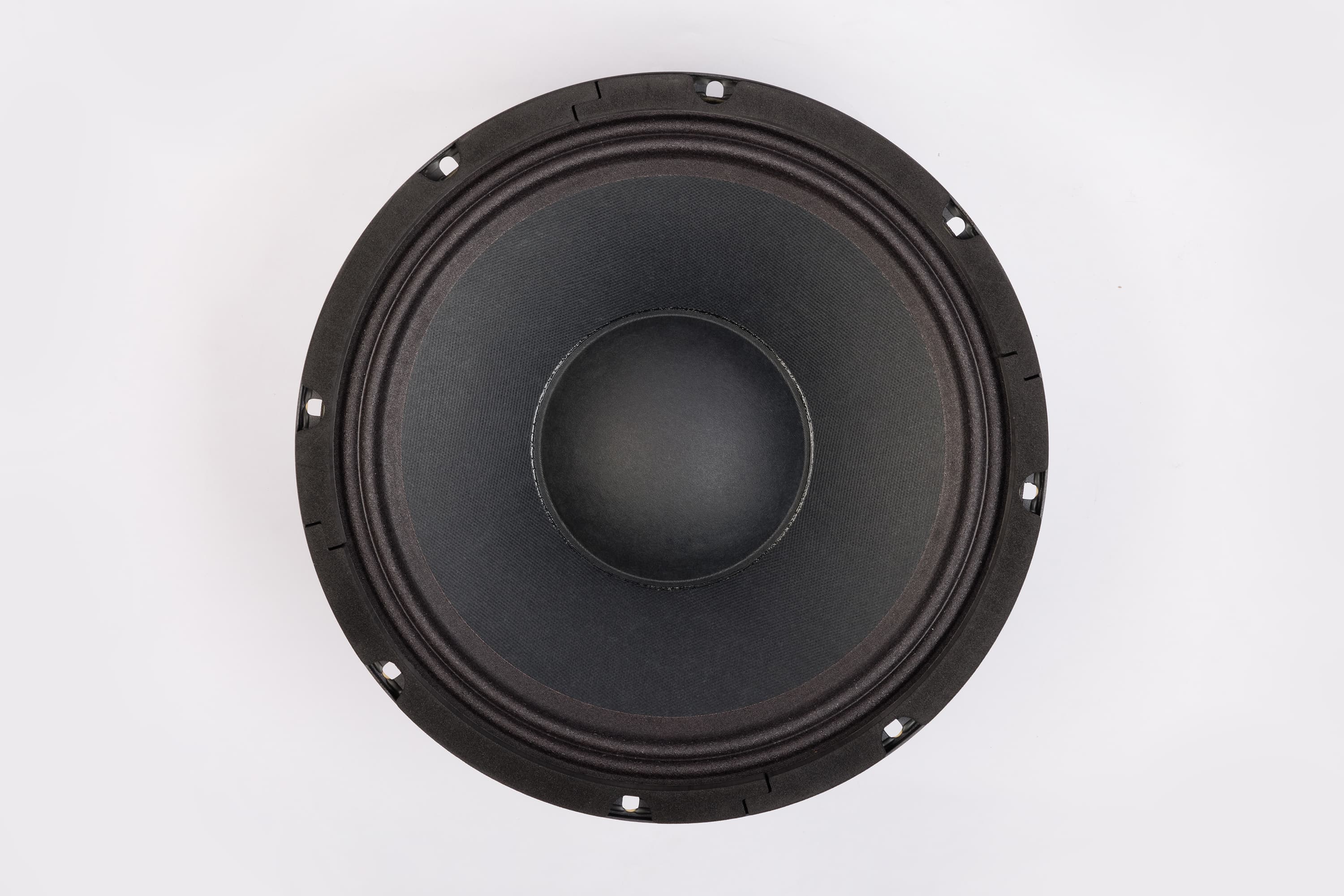

Lavoce FBASS12-20 is a 12" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 53Hz, Qts 0.46, Vas 75.4L, Xmax 4.3mm, sensitivity 95.5dB, plus 234cm³ Vd and 104 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
200W
Sensitivity
95.5dB
97.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
104
Vented alignment
Vd
234cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs53Hz
Qts0.46
Qes0.51
Qms4.7
Vas75.4L
Re5.3Ω
Le0.60mH
BL13.3Tm
Sd543cm²
Mms51g
Xmax4.3mm
SPL96dB
Power200W
Impedance8Ω
Min Impedance6.0Ω
F Low50Hz
F High3000Hz
Voice Coil51mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.6kg
