LF DriverTF1225 series
Celestion

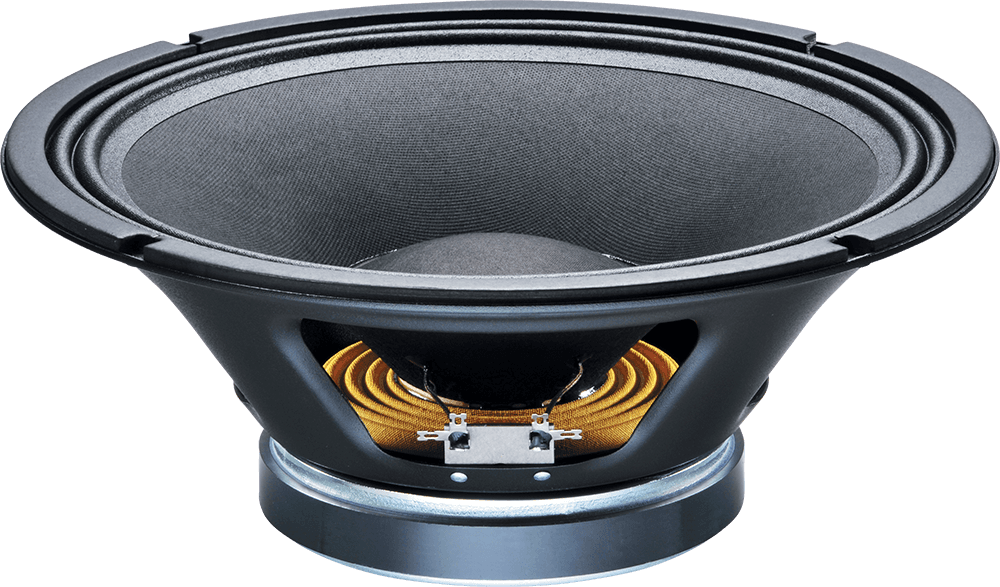

Celestion TF1225
Celestion TF1225 is a 12" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 56Hz, Qts 0.37, Vas 67.3L, Xmax 4.5mm, sensitivity 96.4dB, plus 239cm³ Vd and 132 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £80.00.
Size
12"
Impedance
8Ω
RMS Power
250W
Sensitivity
96.4dB
EBP
132
Vented alignment
Vd
239cm³

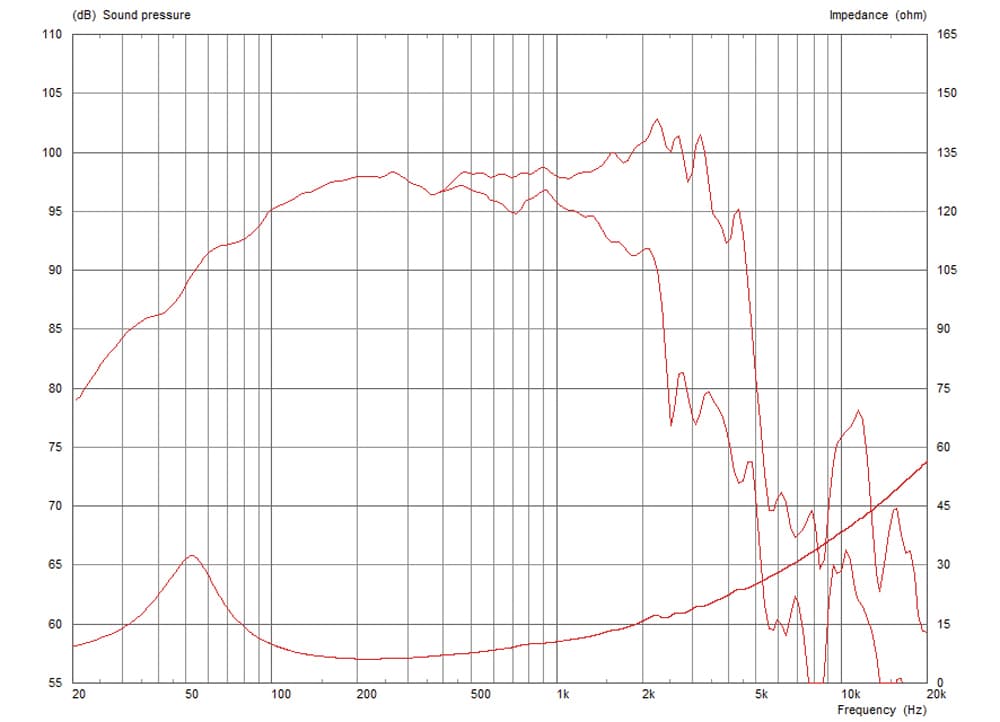

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence199 selected pixels of 362
T/S Parameters
Valid
Fs56Hz
Qts0.37
Qes0.42
Qms3.1
Vas67.3L
Re5.1Ω
Le0.86mH
BL14.3Tm
Sd531cm²
Mms49g
Xmax4.5mm
SPL96dB
Power250W
Impedance8Ω
Voice Coil64mm
Pricing & availability
Price definitionsPrice movement
Best current price
£80.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.1kg
Diameter309.0mm
Overall Depth130.0mm
Cutout Diameter283.0mm
Bolt Circle Diameter297.0mm
