LF DriverTF1220 series
Celestion

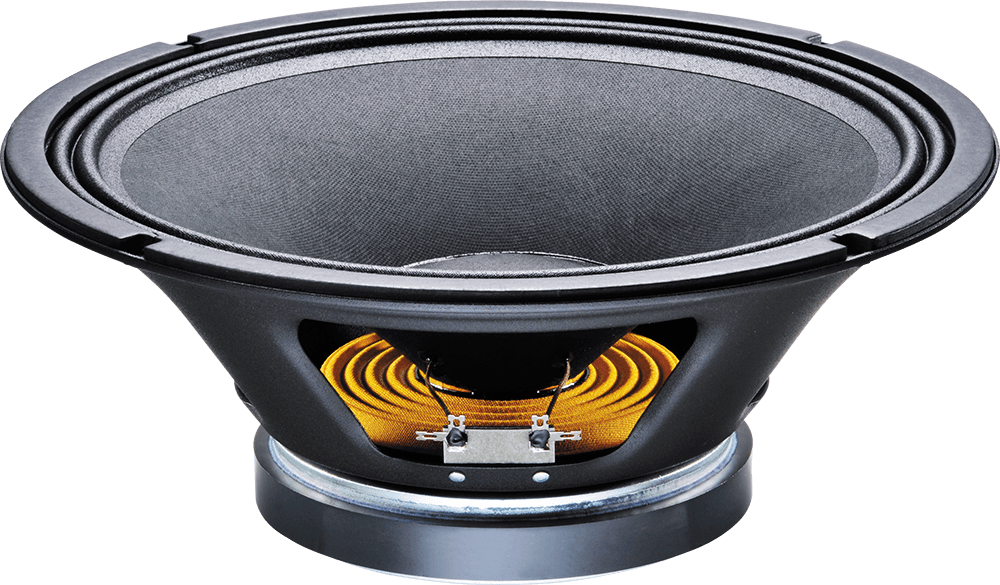

Celestion TF1220
Celestion TF1220 is a 12" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 56Hz, Qts 0.39, Vas 72.8L, Xmax 4mm, sensitivity 96.6dB, plus 212cm³ Vd and 127 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £63.48.
Size
12"
Impedance
8Ω
RMS Power
150W
Sensitivity
96.6dB
EBP
127
Vented alignment
Vd
212cm³

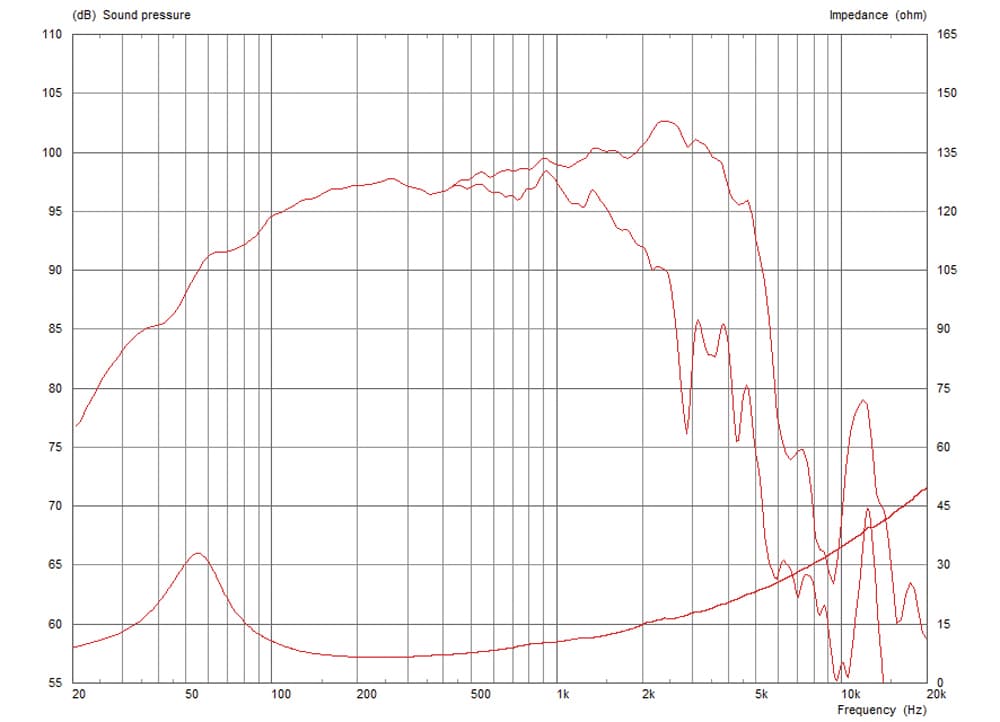

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence198 selected pixels of 365
T/S Parameters
Valid
Fs56Hz
Qts0.39
Qes0.44
Qms3.3
Vas72.8L
Re5.5Ω
Le0.71mH
BL13.9Tm
Sd531cm²
Mms45g
Xmax4.0mm
SPL97dB
Power150W
Impedance8Ω
Voice Coil50mm
Pricing & availability
Price definitionsPrice movement
Best current price
£63.48
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter309.0mm
Overall Depth131.0mm
Cutout Diameter283.0mm
Bolt Circle Diameter297.0mm
