LF DriverFTX1225 series
Celestion

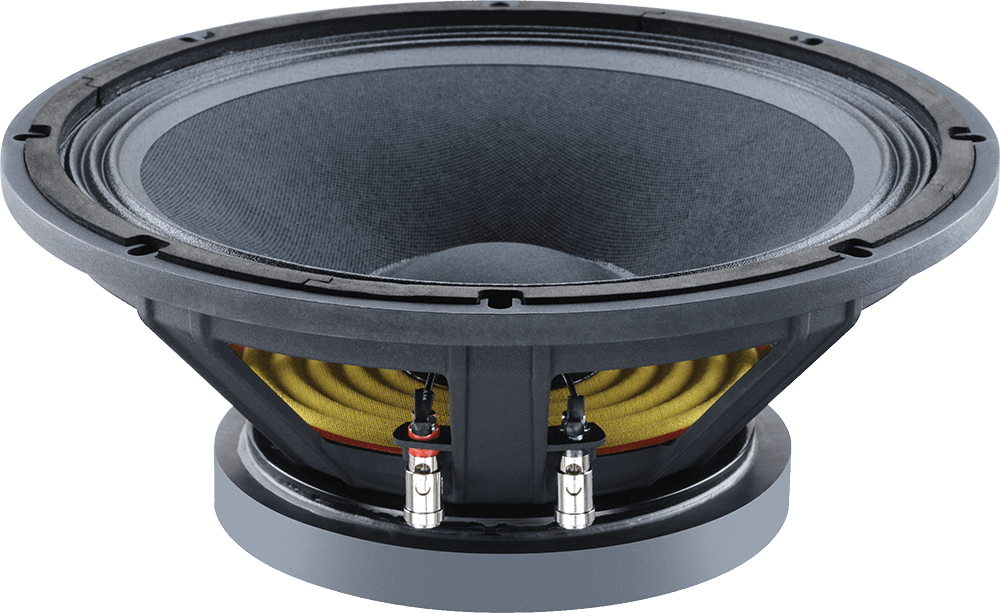

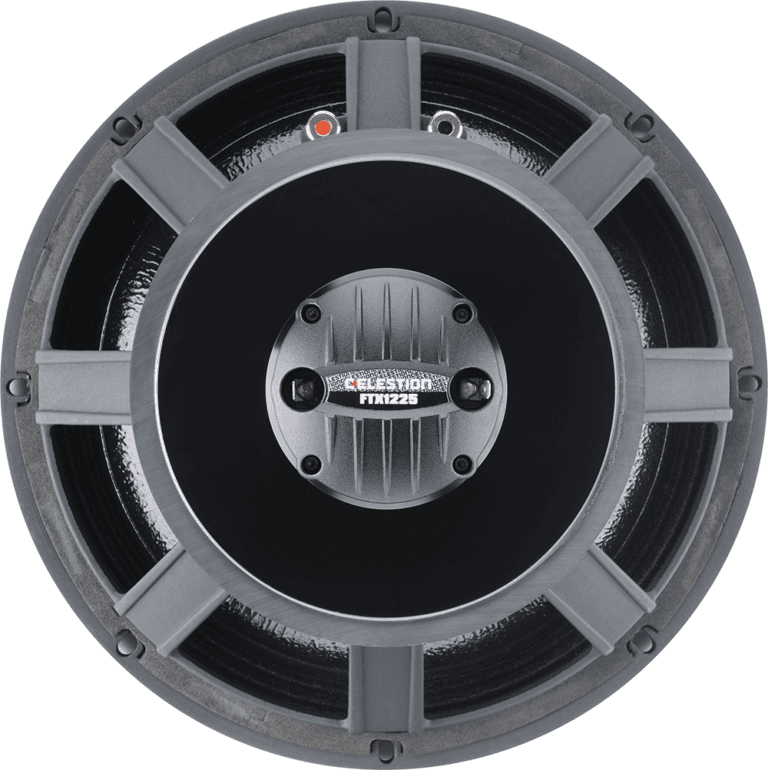

Celestion FTX1225
Celestion FTX1225 is a 12" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 47Hz, Qts 0.40, Vas 84.6L, Xmax 6mm, sensitivity 95.1dB, plus 319cm³ Vd and 108 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £239.00.
Size
12"
Impedance
8Ω
RMS Power
60W
Sensitivity
95.1dB
104.0dBmanufacturer; using T/S-derived value (8.9dB delta).
EBP
108
Vented alignment
Vd
319cm³
T/S Parameters
Valid
Fs47Hz
Qts0.40
Qes0.44
Qms4.2
Vas84.6L
Re5.4Ω
Le3.36mH
BL14.0Tm
Sd531cm²
Mms54g
Xmax6.0mm
SPL95dB
Power60W
Impedance8Ω
Voice Coil45mm
Pricing & availability
Price definitionsPrice movement
Best current price
£239.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.9kg
Diameter318.0mm
Overall Depth168.0mm
Cutout Diameter286.0mm
Bolt Circle Diameter304.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
FTX1225
12"
Best current price
£239.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
66%
Similarity
74% cheaper£63.26
Lavoce
WSN122.50
12"
Lower price
Xmax4.7mm-22%
Qts0.36-9%
BL15.8Tm+13%
Vas69.4L-18%
Qes0.39-11%
72%
Similarity
72% cheaper£67.34
PRV Audio
12W800A
12"
Lower price
Xmax5.7mm-5%
Qts0.47+19%
BL12.7Tm-9%
Vas93.9L+11%
Qes0.49+12%
58%
Similarity
71% cheaper£68.29
SB Audience
BIANCO-12MW200
12"
Lower price
Xmax7mm+16%
Qts0.49+24%
BL14.7Tm+5%
Vas62.9L-26%
Qes0.51+17%
40%
Similarity
67% cheaper£78.54
B&C
12CL64
12"
Lower price
Xmax4.5mm-25%
Qts0.3-24%
BL17.5Tm+25%
Vas64L-24%
Qes0.32-27%
73%
Similarity
67% cheaper£80.00

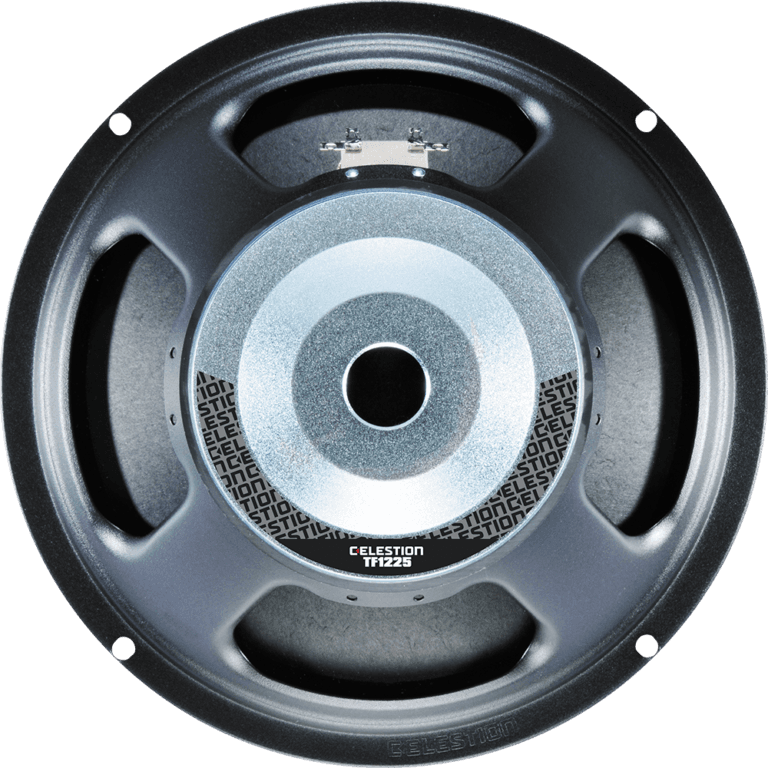

Celestion
TF1225
12"
Lower price
Xmax4.5mm-25%
Qts0.37-7%
BL14.3Tm+2%
Vas67.3L-20%
Qes0.42-4%
73%
Similarity
67% cheaper£80.00
CIARE
FXI12
12"
Lower price
Xmax5mm-17%
Qts0.44+11%
BL13.9Tm-1%
Vas70L-17%
Qes0.49+12%
62%
Similarity
64% cheaper£85.00

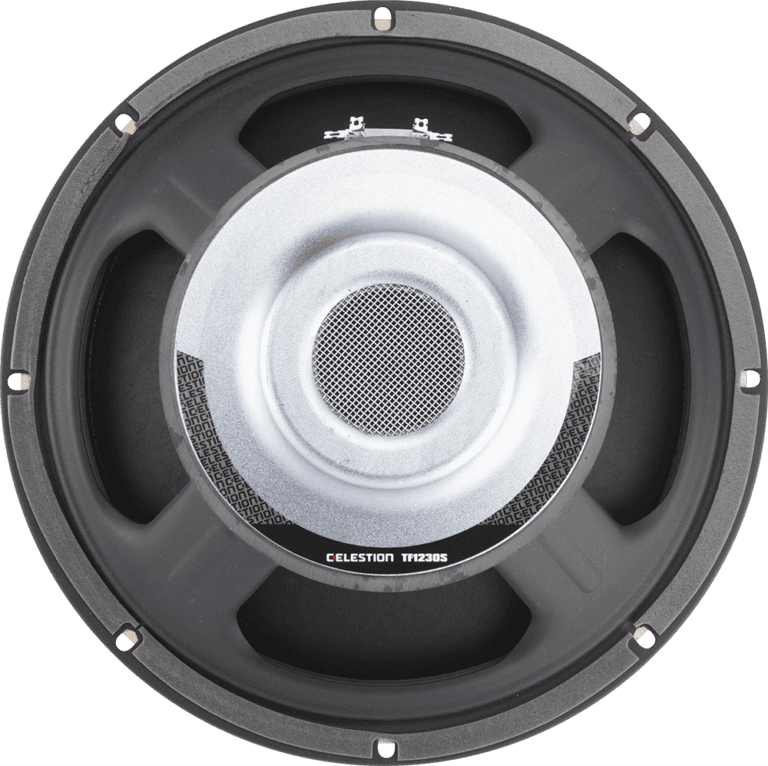

Celestion
TF1230S
12"
Lower price
Xmax4.5mm-25%
Qts0.37-6%
BL16.6Tm+18%
Vas54.4L-36%
Qes0.42-3%
45%
Similarity
61% cheaper£93.61

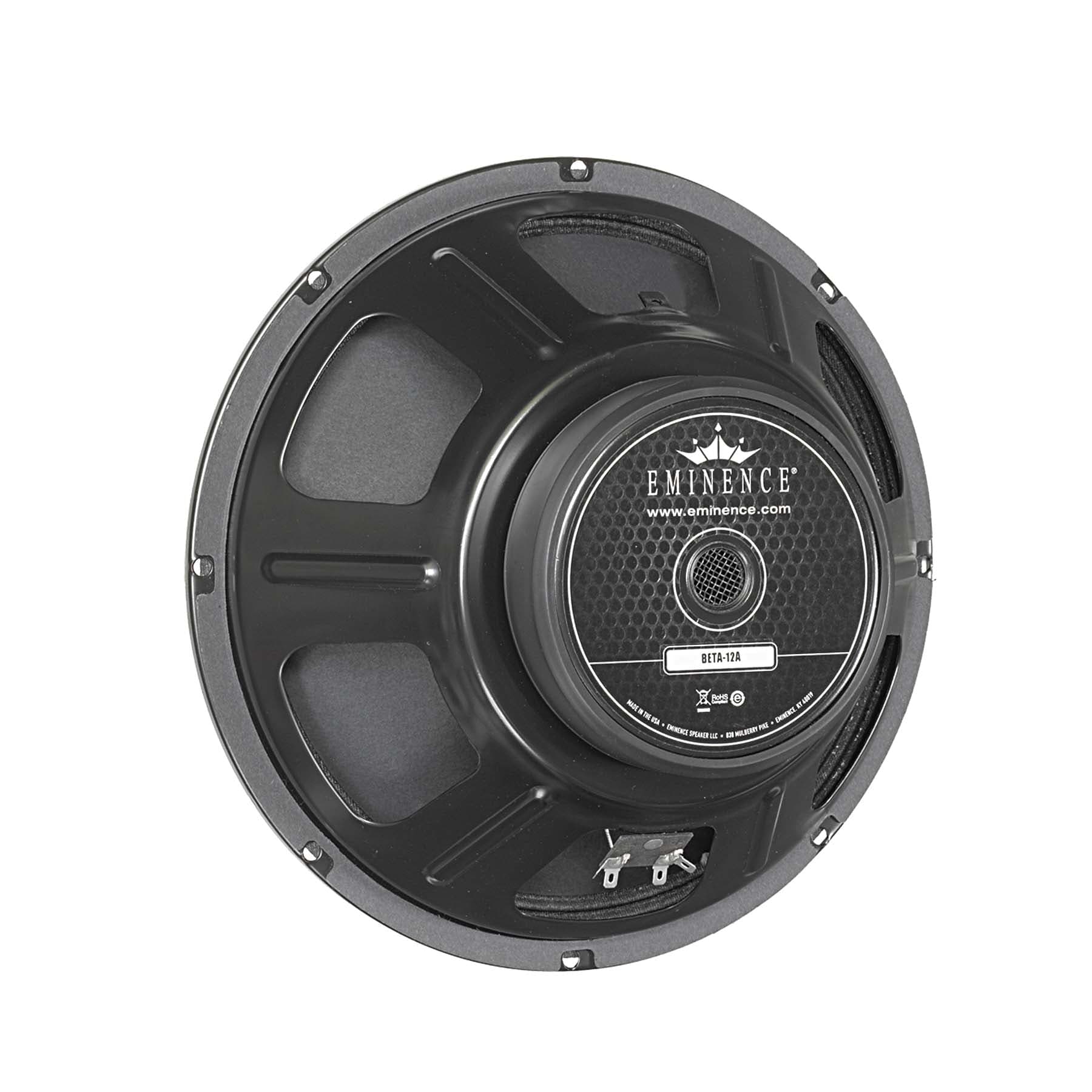

Eminence
BETA-12A
12"
Lower price
Xmax4.4mm-27%
Qts0.46+16%
BL10.8Tm-23%
Vas120.1L+42%
Qes0.5+14%
58%
Similarity
61% cheaper£93.62
Celestion
TF1225E
12"
Lower price
Xmax5.3mm-12%
Qts0.33-16%
BL17.7Tm+26%
Vas67.7L-20%
Qes0.37-16%
63%
Similarity
56% cheaper£104.85

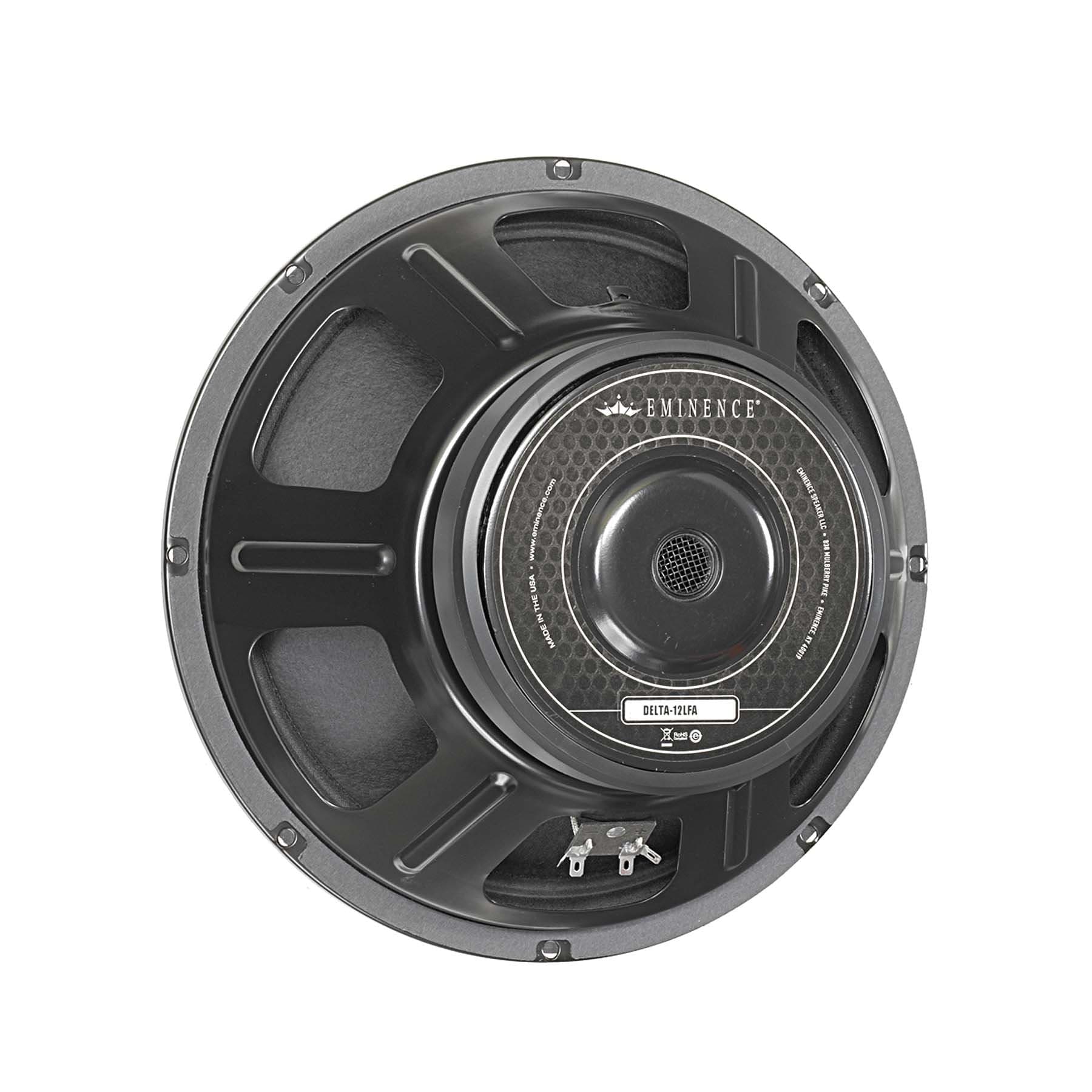

Eminence
DELTA-12LFA
12"
Lower price
Xmax4.8mm-20%
Qts0.47+19%
BL14.1Tm+1%
Vas67.9L-20%
Qes0.51+17%
61%
Similarity
56% cheaper£104.85

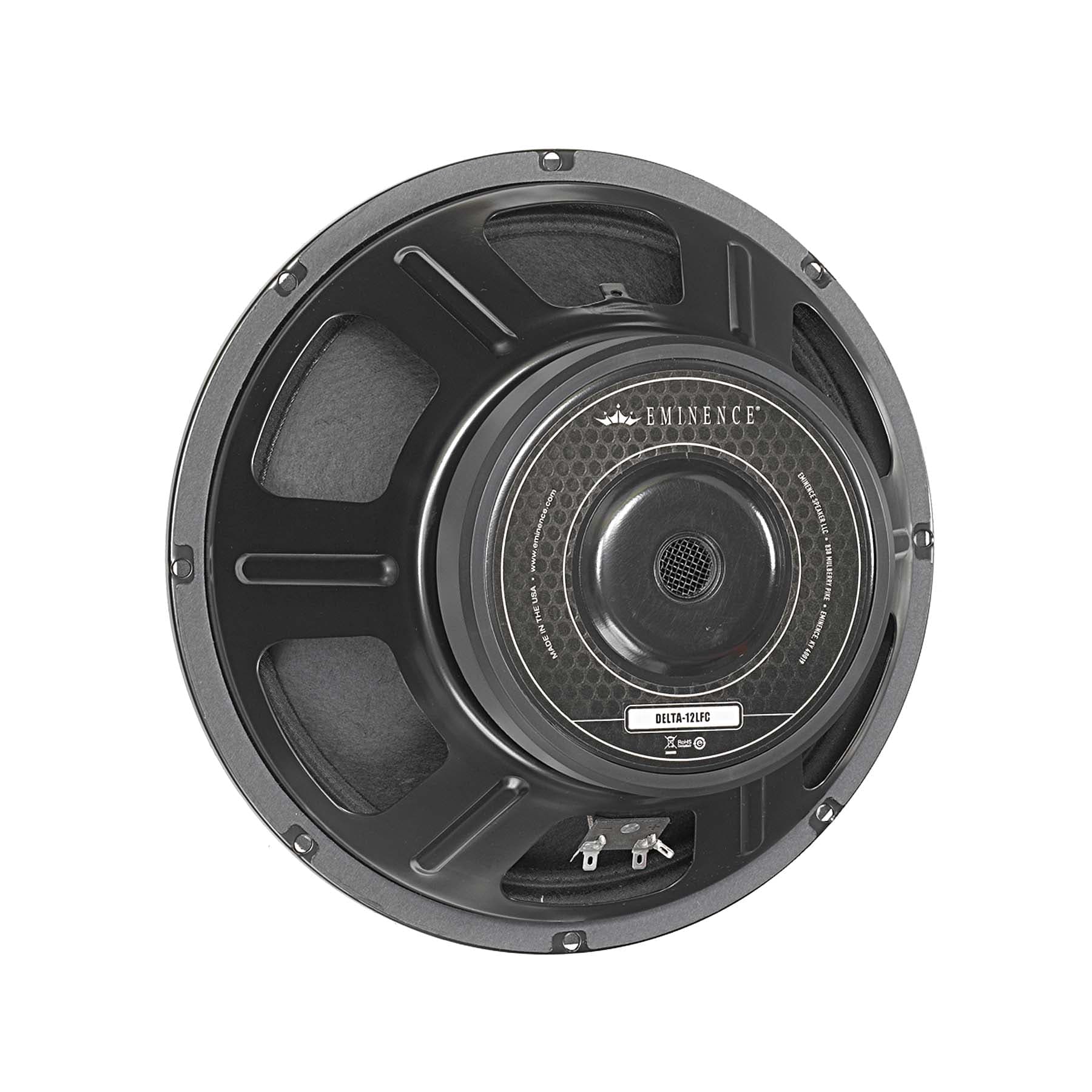

Eminence
