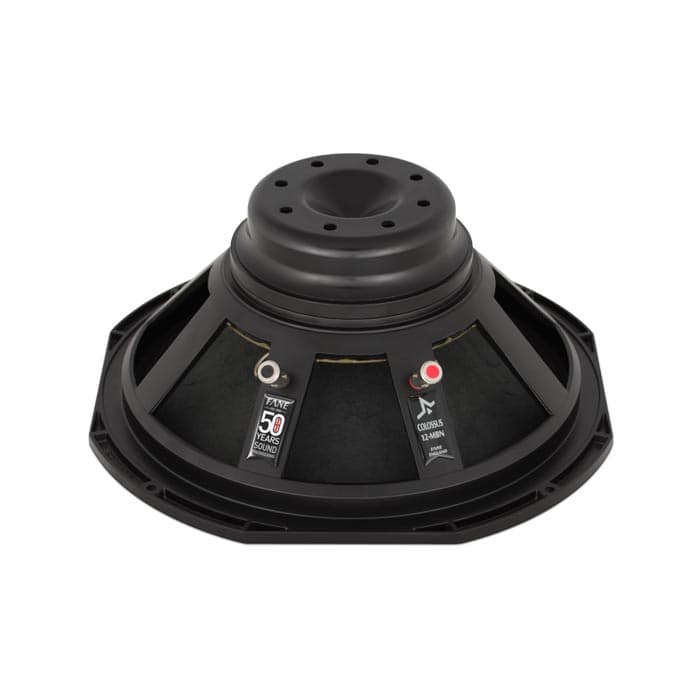

Fane COLOSSUS 12MBN 8Ω
8 Ω · 40–4000 Hz
No current price
- Fs
- 55Hz
- Xmax
- 5.5mm
- SPL
- 95dB
- Pe
- 500W
- BL
- 16.6T·m
- Vd
- 292cm³
- Qts
- 0.40
- Vas
- 56L
Fane COLOSSUS 12MBN is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 55 Hz, Qts 0.40, Vas 56 L, Xmax 5.5 mm, sensitivity 95.3 dB, plus 292 cm³ Vd and 126 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 55Hz
- Qts
- 0.40
- Qes
- 0.44
- Qms
- 4.1
- Vas
- 56L
- Re
- 5.5Ω
- Le
- 1.39mH
Motor and cone
- BL
- 16.6T·m
- Sd
- 530cm²
- Mms
- 59g
- Xmax
- 5.5mm
- Vd †
- 292cm³
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 98.5dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 40–4000Hz
- EBP †
- 126 · Leans vented
Size and mounting
- Diameter
- 330.2mm
- Depth
- 140.6mm
- Weight
- 4.3kg
Other published values
- Cms
- 0.14mm/N
- Power Peak
- 2000
- Power Program
- 1000
Sensitivity shows 95.3 dB, calculated from the T/S values. Fane publishes 98.5 dB, 3.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 12″
- BL
- 16.6T·m
- Fs
- 55Hz
- Le
- 1.39mH
- Re
- 5.5Ω
- Sd
- 530cm²
- Cms
- 0.14mm/N
- Mms
- 59g
- Qes
- 0.44
- Qms
- 4.1
- Qts
- 0.40
- SPL
- 95.3dB
- Vas
- 56L
- Xmax
- 5.5mm
- Power
- 500W
- Impedance
- 8Ω
- Power Peak
- 2000
- Sensitivity
- 98.5dB
- Low limit
- 40Hz
- Power Program
- 1000
- Calculated sensitivity †
- 95.3dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 98.5dB
- Weight
- 4.3kg
- Diameter
- 330.2mm
- Depth
- 140.6mm
02
Compare
Same-size drivers, compared with the COLOSSUS 12MBN. Clear differences are green when better and red when worse.
This driverCOLOSSUS 12MBN
Best price
–
Fs
55 Hz
Qts
0.40
Vas
56 L
BL
16.6 T·m
Xmax
5.5 mm
Sensitivity
95.3 dB
Power
500 W
£73.00
Fs47 Hz −15%, better
Qts0.40 –
Vas80 L +43%, worse
BL15.6 T·m −6%
Xmax5 mm −9%
Sensitivity94.9 dB –
CelestionTF1230S
£85.00Fs60 Hz +10%
Qts0.37 −6%
Vas54.4 L –
BL16.6 T·m –
Xmax4.5 mm −18%, worse
Sensitivity96.5 dB +1.2
CelestionTF1225
£86.00Fs56 Hz –
Qts0.37 −7%
Vas67.3 L +20%, worse
BL14.3 T·m −14%, worse
Xmax4.5 mm −18%, worse
Sensitivity96.4 dB +1.1
LavoceWSN122.50
£100.42Fs53 Hz −4%
Qts0.36 −9%
Vas69.4 L +24%, worse
BL15.8 T·m −5%
Xmax4.7 mm −15%, worse
Sensitivity96.3 dB +1
FaitalPRO12PR310
£136.00Fs54 Hz –
Qts0.40 –
Vas73.5 L +31%, worse
BL14.4 T·m −13%, worse
Xmax4.9 mm −11%, worse
Sensitivity96.5 dB +1.2
CelestionCF1230BMB
£145.00Fs43 Hz −21%, better
Qts0.38 −4%
Vas60.7 L +8%
BL18.4 T·m +11%, better
Xmax7 mm +27%, better
Sensitivity92.8 dB −2.5, worse
Sica12 SR 3 CP
£156.12Fs37 Hz −33%, better
Qts0.40 –
Vas60.9 L +9%
BL16.6 T·m –
Xmax8 mm +45%, better
Sensitivity90.3 dB −5, worse
Sica12 PF 3
£167.93Fs47 Hz −15%, better
Qts0.39 –
Vas76.5 L +37%, worse
BL15.4 T·m −7%
Xmax5.5 mm –
Sensitivity94.8 dB −0.5
Eighteen Sound12W700
£179.00Fs58 Hz +5%
Qts0.36 −9%
Vas55 L –
BL17.7 T·m +7%
Xmax6.5 mm +18%, better
Sensitivity96.7 dB +1.4
Sica12 SR 3 PL
£210.13Fs36 Hz −35%, better
Qts0.42 +6%
Vas60.4 L +8%
BL17.0 T·m –
Xmax7 mm +27%, better
Sensitivity90 dB −5.3, worse
CelestionFTX1225
£239.00Fs47 Hz −14%, better
Qts0.40 –
Vas84.6 L +51%, worse
BL14 T·m −16%, worse
Xmax6 mm +9%
Sensitivity95.1 dB –
MonacorFTX1225/8
£248.95Fs47 Hz −14%, better
Qts0.40 –
Vas84.6 L +51%, worse
BL14 T·m −16%, worse
Xmax6 mm +9%
Sensitivity95.1 dB –
Eighteen Sound12NLW9300
£274.84Fs47 Hz −15%, better
Qts0.42 +6%
Vas56 L –
BL17 T·m –
Xmax8 mm +45%, better
Sensitivity93.1 dB −2.2, worse
Eighteen Sound12NTLS3500
£299.50Fs41 Hz −25%, better
Qts0.41 +4%
Vas65 L +16%, worse
BL17.8 T·m +7%
Xmax7.9 mm +44%, better
Sensitivity92.2 dB −3.1, worse
CelestionTF1230SL
No current priceFs57 Hz +3%
Qts0.39 –
Vas53.8 L −4%
BL15.7 T·m −6%
Xmax6 mm +9%
Sensitivity95.6 dB –
MonacorTF1230S/8
No current priceFs60 Hz +10%
Qts0.37 −6%
Vas54.4 L –
BL16.6 T·m –
Xmax4.5 mm −18%, worse
Sensitivity96.5 dB +1.2
P.AudioEX12-500S
No current priceFs56 Hz –
Qts0.40 –
Vas54.5 L –
BL16.3 T·m –
Xmax3.9 mm −29%, worse
Sensitivity95.5 dB –
P.Audio12FT-76MB
No current priceFs50 Hz −9%
Qts0.40 –
Vas46.5 L −17%, better
BL18.9 T·m +14%, better
Xmax4.8 mm −13%, worse
Sensitivity93.4 dB −1.9
Oberton12CX
No current priceFs51 Hz −7%
Qts0.35 −13%, better
Vas58.5 L +5%
BL17.4 T·m +5%
Xmax5.3 mm −5%
Sensitivity95.4 dB –
P.AudioE12-300S-V2
No current priceFs57 Hz +4%
Qts0.40 –
Vas50.4 L −10%, better
BL17.1 T·m +3%
Xmax3.4 mm −38%, worse
Sensitivity95.5 dB –
Oberton12HCX
No current priceFs53 Hz −4%
Qts0.33 −16%, better
Vas55.5 L –
BL17.8 T·m +7%
Xmax5.3 mm −5%
Sensitivity95.6 dB –
P.Audio12BMA-500B
No current priceFs57 Hz +4%
Qts0.34 −14%, better
Vas61.4 L +10%
BL16.7 T·m –
Xmax5 mm −9%
Sensitivity97 dB +1.7
JensenBS12N250A-8
No current priceFs47 Hz −15%, better
Qts0.43 +9%
Vas81.3 L +45%, worse
BL14.4 T·m −13%, worse
Xmax5.5 mm –
Sensitivity94.8 dB −0.5
Oberton12NMB35
No current priceFs54 Hz –
Qts0.36 −9%
Vas54.3 L −3%
BL17 T·m –
Xmax6.8 mm +23%, better
Sensitivity95.7 dB –
EminenceFS12.30A8
No current priceFs55 Hz –
Qts0.36 −9%
Vas61 L +9%
BL17 T·m –
Xmax4.3 mm −22%, worse
Sensitivity96.3 dB +1
LavoceCAF123.00T
No current priceFs53 Hz −4%
Qts0.36 −9%
Vas71.4 L +28%, worse
BL15.2 T·m −8%
Xmax6 mm +9%
Sensitivity96.4 dB +1.1
LavoceCAF123.00TH
No current priceFs53 Hz −4%
Qts0.36 −9%
Vas71.4 L +28%, worse
BL15.2 T·m −8%
Xmax6 mm +9%
Sensitivity96.4 dB +1.1
CelestionTF1225CX
No current priceFs64 Hz +15%, worse
Qts0.36 −10%
Vas45.1 L −19%, better
BL17.5 T·m +5%
Xmax4.5 mm −18%, worse
Sensitivity96.6 dB +1.3
P.Audio12BM-500B
No current priceFs52 Hz −5%
Qts0.35 −12%, better
Vas69.8 L +25%, worse
BL16.6 T·m –
Xmax4.8 mm −13%, worse
Sensitivity96.3 dB +1
