Overview
LF DriverFTX series
Monacor
Monacor FTX1225/8
Monacor FTX1225/8 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 47Hz, Qts 0.40, Vas 84.6L, Xmax 6mm, sensitivity 95.1dB, plus 319cm³ Vd and 108 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
95.1dB
97.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
108
Vented alignment
Vd
319cm³
T/S Parameters
Valid
Fs47Hz
Qts0.40
Qes0.44
Qms4.2
Vas84.6L
Re5.4Ω
Le3.36mH
BL14.0Tm
Sd531cm²
Mms54g
Xmax6.0mm
SPL95dB
Power300W
Impedance8Ω
F Low50Hz
F High5000Hz
Voice Coil64mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
Diameter318.0mm
Overall Depth168.0mm
Cutout Diameter286.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
FTX1225/8
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
£239.00
Celestion
FTX1225
12"
Xmax6mm0%
Qts0.40%
BL14Tm0%
Vas84.6L0%
Qes0.440%
90%
Similarity
£168.20
Lavoce
CSF122.50K
12"
Xmax6.3mm+4%
Qts0.42+6%
BL13.9Tm-1%
Vas89.8L+6%
Qes0.45+3%
85%
Similarity
Sica
12 PF 3
12"
Xmax5.5mm-8%
Qts0.39-2%
BL15.4Tm+10%
Vas76.5L-10%
Qes0.42-4%
83%
Similarity

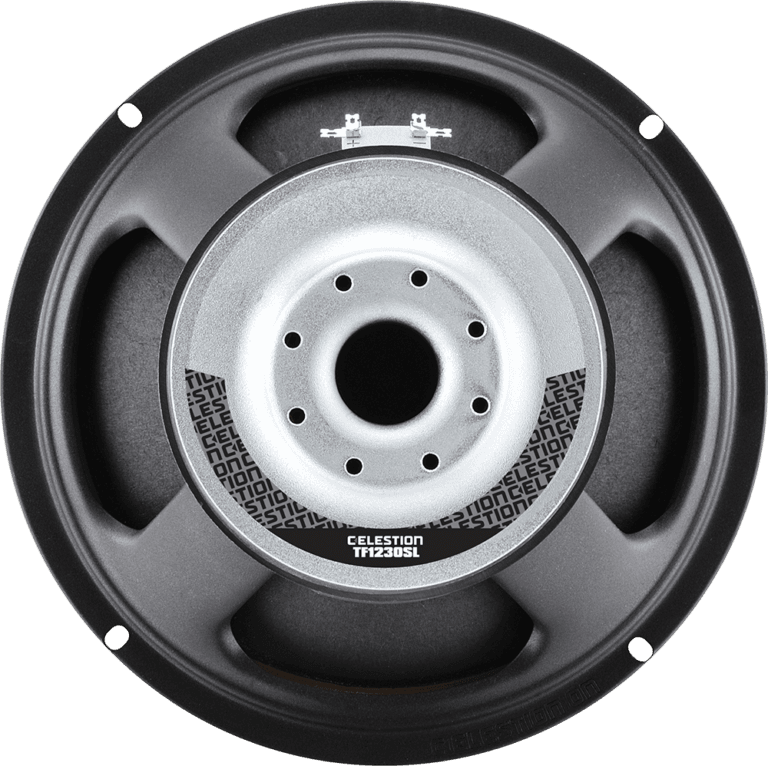

Celestion
