LF DriverPR series
FaitalPRO
FaitalPRO 12PR330
FaitalPRO 12PR330 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 50Hz, Qts 0.40, Vas 79.1L, Xmax 7.4mm, sensitivity 95.7dB, plus 393cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
95.7dB
98.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
119
Vented alignment
Vd
393cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees187 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
187 plotted pointsMedium confidence568 selected pixels of 1,171 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,215 selected pixels of 1,215 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,478 selected pixels of 1,478
T/S Parameters
Valid
Fs50Hz
Qts0.40
Qes0.42
Qms10.9
Vas79.1L
Re5.3Ω
Le0.76mH
BL14.2Tm
Sd533cm²
Mms51g
Xmax7.4mm
SPL96dB
Power300W
Impedance8Ω
F Low50Hz
F High4000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.3kg
Diameter316.0mm
Overall Depth135.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
12PR330
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
£250.31
FaitalPRO
12HX230
12"
Xmax7.4mm0%
Qts0.43+7%
BL14.1Tm-1%
Vas67.7L-14%
Qes0.46+10%
85%
Similarity
£239.00
Celestion
FTX1225
12"
Xmax6mm-19%
Qts0.4-1%
BL14Tm-1%
Vas84.6L+7%
Qes0.44+4%
85%
Similarity

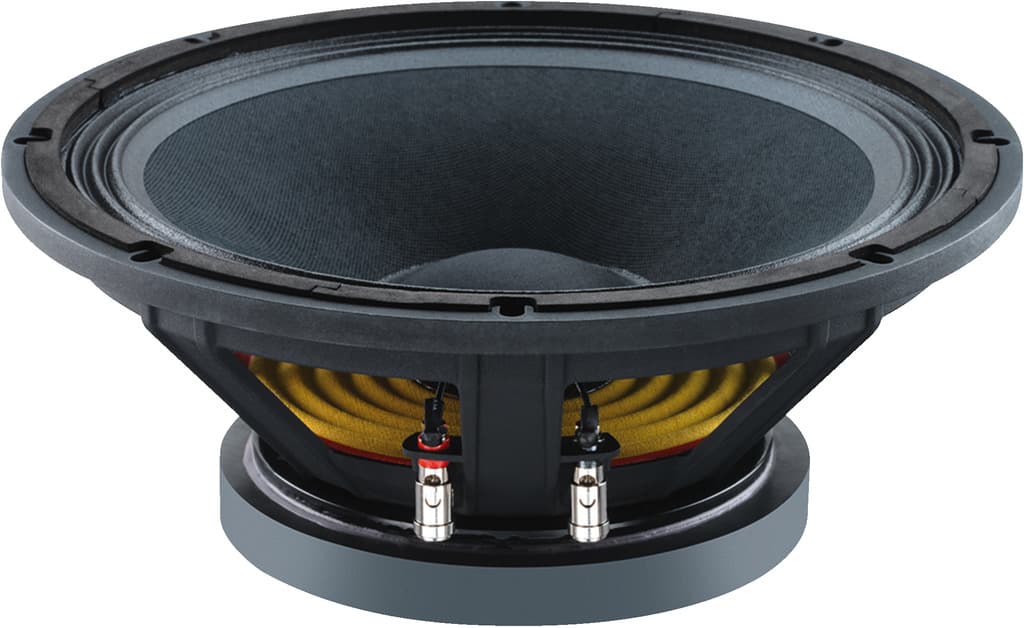

Monacor
FTX1225/8
12"
Xmax6mm-19%
Qts0.4-1%
BL14Tm-1%
Vas84.6L+7%
Qes0.44+4%
82%
Similarity
CIARE
HSB322
12"
Xmax7.5mm+2%
Qts0.42+5%
BL12Tm-15%
Vas83L+5%
Qes0.47+12%
81%
Similarity
CIARE
HSB322
12"
Xmax7.5mm+2%
Qts0.37-8%
BL17Tm+20%
Vas83L+5%
Qes0.4-5%
80%
Similarity
£168.20
Lavoce
CSF122.50K
12"
Xmax6.3mm-15%
Qts0.42+5%
BL13.9Tm-2%
Vas89.8L+14%
Qes0.45+7%
79%
Similarity
Sica
12 PF 3
12"
Xmax5.5mm-25%
Qts0.39-3%
BL15.4Tm+8%
Vas76.5L-3%
Qes0.420%
79%
Similarity
£308.45
FaitalPRO
12HX240
12"
Xmax7.4mm0%
Qts0.37-8%
BL16Tm+13%
Vas61.1L-23%
Qes0.38-10%
78%
Similarity
Dayton Audio
DCS305-4
12"
Xmax9.3mm+26%
Qts0.40%
BL13.7Tm-4%
Vas92.3L+17%
Qes0.43+2%
78%
Similarity
PRV Audio
12MB1000FT
12"
Xmax6.9mm-7%
Qts0.37-8%
BL16.5Tm+16%
Vas74.6L-6%
Qes0.38-10%
78%
Similarity
£159.86
FaitalPRO
12PR320
12"
Xmax7.4mm0%
Qts0.37-8%
BL13.5Tm-5%
Vas113.3L+43%
Qes0.39-7%
76%
Similarity
£299.50

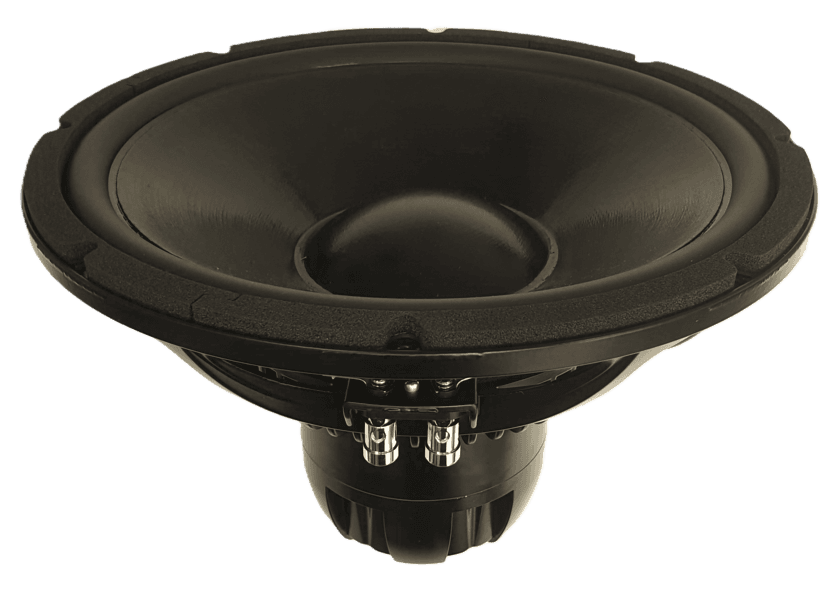

Eighteen Sound
