Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverPR series
FaitalPRO
FaitalPRO 12PR300

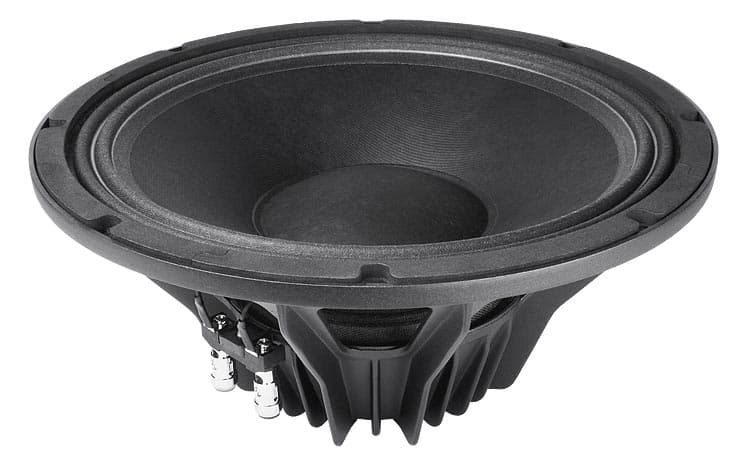

FaitalPRO 12PR300 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 50Hz, Qts 0.36, Vas 92.6L, Xmax 4.9mm, sensitivity 97dB, plus 262cm³ Vd and 135 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £147.95.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
97.0dB
99.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
135
Vented alignment
Vd
262cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees240 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence963 selected pixels of 1,148 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,295 selected pixels of 1,295 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,441 selected pixels of 1,441
T/S Parameters
Valid
Fs50Hz
Qts0.36
Qes0.37
Qms9.9
Vas92.6L
Re5.4Ω
Le0.42mH
BL14.1Tm
Sd533cm²
Mms43g
Xmax4.9mm
SPL97dB
Power300W
Impedance8Ω
F Low50Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£147.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.5kg
Diameter315.2mm
Overall Depth140.6mm
Cutout Diameter283.0mm
Bolt Circle Diameter298.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
12PR300
12"
Best current price
£147.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
57% cheaper£63.26
Lavoce
WSN122.50
12"
Lower price
Xmax4.7mm-4%
Qts0.360%
BL15.8Tm+12%
Vas69.4L-25%
Qes0.39+5%
70%
Similarity
57% cheaper£63.48
Celestion
TF1220
12"
Lower price
Xmax4mm-19%
Qts0.39+8%
BL13.9Tm-1%
Vas72.8L-21%
Qes0.44+19%
61%
Similarity
57% cheaper£63.59
PRV Audio
12W750A
12"
Lower price
Xmax3.6mm-26%
Qts0.43+19%
BL14.3Tm+1%
Vas81L-13%
Qes0.44+19%
59%
Similarity
47% cheaper£78.54
B&C
12CL64
12"
Lower price
Xmax4.5mm-9%
Qts0.3-17%
BL17.5Tm+24%
Vas64L-31%
Qes0.32-14%
80%
Similarity
46% cheaper£80.00
Celestion
TF1225
12"
Lower price
Xmax4.5mm-9%
Qts0.37+3%
BL14.3Tm+2%
Vas67.3L-27%
Qes0.42+14%
63%
Similarity
46% cheaper£80.00
CIARE
FXI12
12"
Lower price
Xmax5mm+2%
Qts0.44+22%
BL13.9Tm-1%
Vas70L-24%
Qes0.49+32%
67%
Similarity
43% cheaper£85.00
Celestion
TF1230S
12"
Lower price
Xmax4.5mm-9%
Qts0.37+4%
BL16.6Tm+17%
Vas54.4L-41%
Qes0.42+14%
71%
Similarity
37% cheaper£93.62
Celestion
TF1225E
12"
Lower price
Xmax5.3mm+7%
Qts0.33-7%
BL17.7Tm+25%
Vas67.7L-27%
Qes0.37-1%
61%
Similarity
35% cheaper£96.60
Dayton Audio
DSA315-8
12"
Lower price
Xmax5.5mm+12%
Qts0.33-8%
BL16.1Tm+14%
Vas147L+59%
Qes0.4+8%
53%
Similarity
29% cheaper£104.85
Eminence
DELTA-12LFC
12"
Lower price
Xmax4.8mm-2%
Qts0.44+22%
BL10.9Tm-23%
Vas63.7L-31%
Qes0.47+27%
53%
Similarity
17% cheaper£122.29
Beyma
12WRS400
12"
Lower price
Xmax6.3mm+28%
Qts0.29-19%
BL17.4Tm+23%
Vas91L-2%
Qes0.31-16%
87%
Similarity
14% cheaper£127.22
Eminence
DELTA PRO
12"
Lower price
Xmax4.6mm-7%
Qts0.35-3%
BL15.3Tm+9%
Vas81.7L-12%
Qes0.370%
