Monacor SP-12/200PA
Monacor SP-12/200PA is a 12" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 45Hz, Qts 0.33, Vas 114L, Xmax 4mm, sensitivity 96.8dB, plus 212cm³ Vd and 129 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
200W
Sensitivity
96.8dB
100.0dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
129
Vented alignment
Vd
212cm³
T/S Parameters
Valid
Fs45Hz
Qts0.33
Qes0.35
Qms5.2
Vas114.0L
Re6.8Ω
Le1.20mH
BL15.4Tm
Sd531cm²
Mms43g
Xmax4.0mm
SPL97dB
Power200W
Impedance8Ω
F Low3Hz
F High5000Hz
Voice Coil78mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

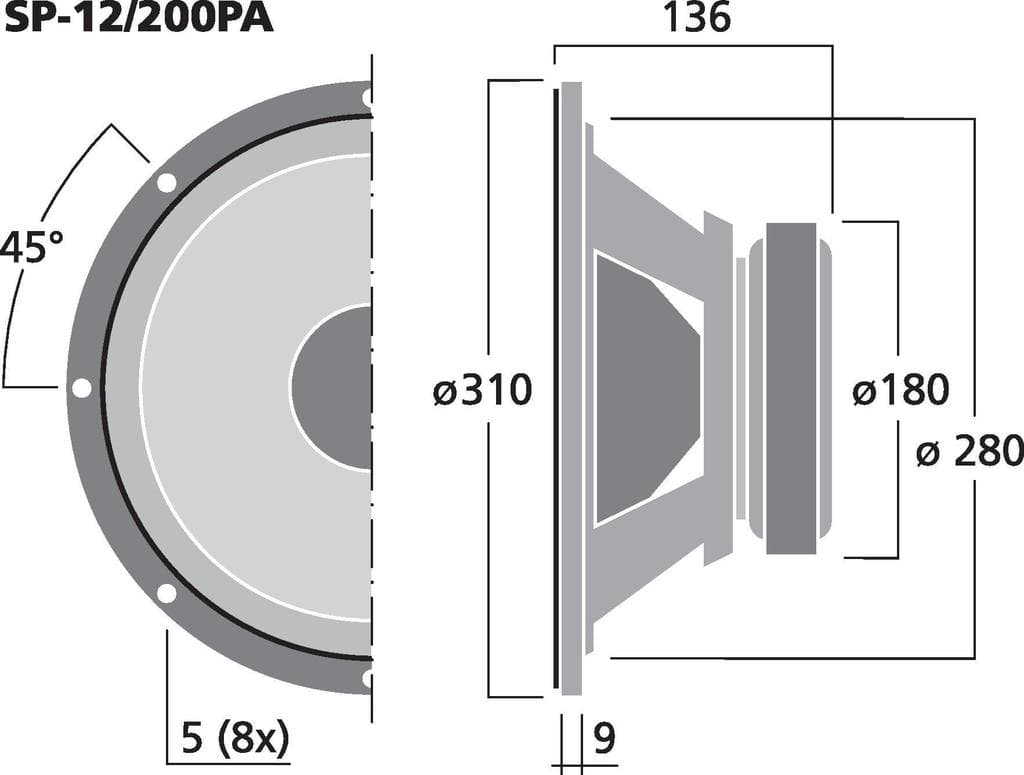

Dimensions & Physical
Weight5.7kg
Diameter310.0mm
Overall Depth136.0mm
Cutout Diameter280.0mm
