Overview
LF DriverLAB series
Eminence

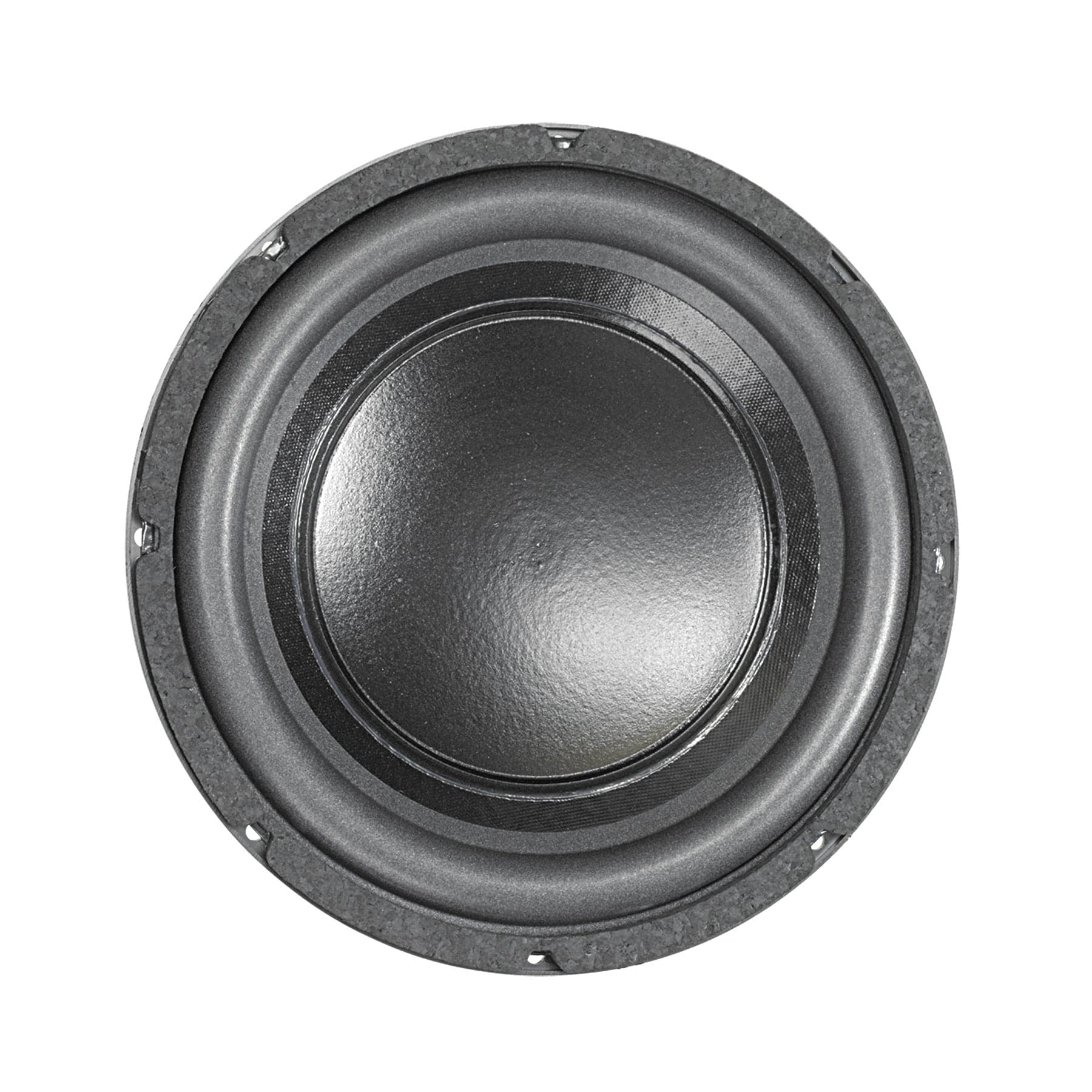

Eminence LAB 12C
Eminence LAB 12C is a 12" 4 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 23Hz, Qts 0.33, Vas 128.3L, Xmax 13mm, sensitivity 88.6dB, plus 659cm³ Vd and 68 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £193.80.
Size
12"
Impedance
4Ω
RMS Power
500W
Sensitivity
88.6dB
EBP
68
Either alignment
Vd
659cm³
T/S Parameters
Valid
Fs23Hz
Qts0.33
Qes0.34
Qms11.7
Vas128.3L
Re3.1Ω
Le1.09mH
BL13.4Tm
Sd507cm²
Mms136g
Xmax13.0mm
SPL89dB
Power500W
Impedance4Ω
F Low25Hz
F High0Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£193.80
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.0kg
Diameter312.9mm
Overall Depth163.6mm
Cutout Diameter280.4mm
Bolt Circle Diameter299.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
LAB 12C
12"
Best current price
£193.80
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
10 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
74%
Similarity
13% cheaper£168.40
FaitalPRO
12RS430
12"
Lower price
Xmax13.6mm+4%
Qts0.35+6%
BL18Tm+35%
Vas131.2L+2%
Qes0.36+6%
77%
Similarity
16% more£225.00
Eminence
LAB 12
12"
Higher price
Xmax13mm0%
Qts0.38+15%
BL15Tm+12%
Vas125.2L-2%
Qes0.39+15%
56%
Similarity
17% more£227.46
B&C
12FG100
12"
Higher price
Xmax10.3mm-21%
Qts0.32-3%
BL17.2Tm+29%
Vas53L-59%
Qes0.340%
71%
Similarity
69% more£327.95
Scanspeak
30W/4558T00
12"
Higher price
Xmax12.5mm-4%
Qts0.32-3%
BL10.5Tm-21%
Vas197L+54%
Qes0.340%
40%
Similarity
136% more£457.87
FaitalPRO
12HX500
12"
Higher price
Xmax9.3mm-29%
Qts0.37+12%
BL17.4Tm+30%
Vas57.8L-55%
Qes0.39+15%
79%
Similarity
235% more£649.95
Scanspeak
28W/4878T00
12"
Higher price
Xmax14mm+8%
Qts0.3-9%
BL11.2Tm-16%
Vas127L-1%
Qes0.32-6%
73%
Similarity
236% more£651.95
Scanspeak
32W/4878T00
12"
Higher price
Xmax14mm+8%
Qts0.32-3%
BL12.5Tm-6%
Vas204L+59%
Qes0.33-3%
54%
Similarity
Visaton
TIW 300 - 8 OHM
12"
Xmax16mm+23%
Qts0.28-15%
BL16.5Tm+24%
Vas160L+25%
Qes0.3-12%
54%
Similarity
Oberton
12B45V
12"
Xmax10.5mm-19%
Qts0.35+7%
BL16.6Tm+25%
Vas58.5L-54%
Qes0.37+9%
50%
Similarity
Dayton Audio
DCS305-4
12"
Xmax9.3mm-28%
Qts0.4+21%
BL13.7Tm+3%
Vas92.3L-28%
Qes0.43+26%
