LF DriverRevelator series
Scanspeak
Scanspeak 32W/4878T00
Scanspeak 32W/4878T00 is a 12" 4 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 18Hz, Qts 0.32, Vas 204L, Xmax 14mm, sensitivity 87.6dB, plus 736cm³ Vd and 55 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £651.95.
Size
12"
Impedance
4Ω
RMS Power
200W
Sensitivity
87.6dB
90.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
55
Either alignment
Vd
736cm³
T/S Parameters
Valid
Fs18Hz
Qts0.32
Qes0.33
Qms7.0
Vas204.0L
Re3.1Ω
Le0.50mH
BL12.5Tm
Sd526cm²
Mms150g
Xmax14.0mm
SPL88dB
Power200W
Impedance4Ω
Min Impedance4.0Ω
Voice Coil75mm
Pricing & availability
Price definitionsPrice movement
Best current price
£651.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter320.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
32W/4878T00
12"
Best current price
£651.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
70% cheaper£193.80
Eminence
LAB 12C
12"
Lower price
Xmax13mm-7%
Qts0.33+3%
BL13.4Tm+7%
Vas128.3L-37%
Qes0.34+3%
56%
Similarity
65% cheaper£225.00
Eminence
LAB 12
12"
Lower price
Xmax13mm-7%
Qts0.38+19%
BL15Tm+20%
Vas125.2L-39%
Qes0.39+18%
84%
Similarity
50% cheaper£327.95
Scanspeak
30W/4558T00
12"
Lower price
Xmax12.5mm-11%
Qts0.320%
BL10.5Tm-16%
Vas197L-3%
Qes0.34+3%
79%
Similarity
£649.95
Scanspeak
28W/4878T00
12"
Xmax14mm0%
Qts0.3-6%
BL11.2Tm-10%
Vas127L-38%
Qes0.32-3%
59%
Similarity

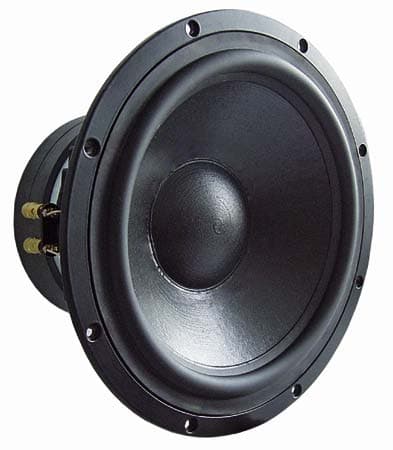

Visaton
TIW 300 - 8 OHM
12"
Xmax16mm+14%
Qts0.28-12%
BL16.5Tm+32%
Vas160L-22%
Qes0.3-9%
