Overview
LF DriverSP series
Monacor

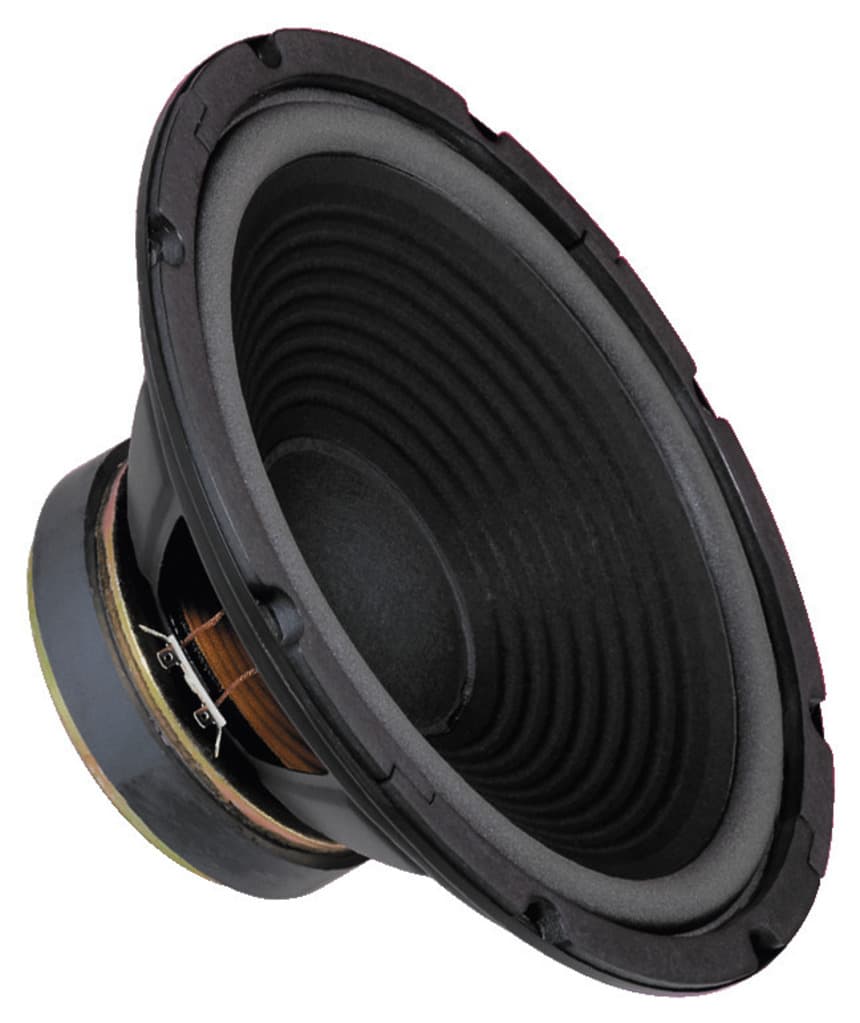

Monacor SP-300P
Monacor SP-300P is a 12" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 30Hz, Qts 0.31, Vas 266L, Xmax 2.5mm, sensitivity 94.9dB, plus 124cm³ Vd and 81 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
100W
Sensitivity
94.9dB
96.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
81
Either alignment
Vd
124cm³
T/S Parameters
Valid
Fs30Hz
Qts0.31
Qes0.37
Qms1.7
Vas266.0L
Re6.5Ω
Le0.80mH
BL11.7Tm
Sd495cm²
Mms42g
Xmax2.5mm
SPL95dB
Power100W
Impedance8Ω
F Low3Hz
F High4000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

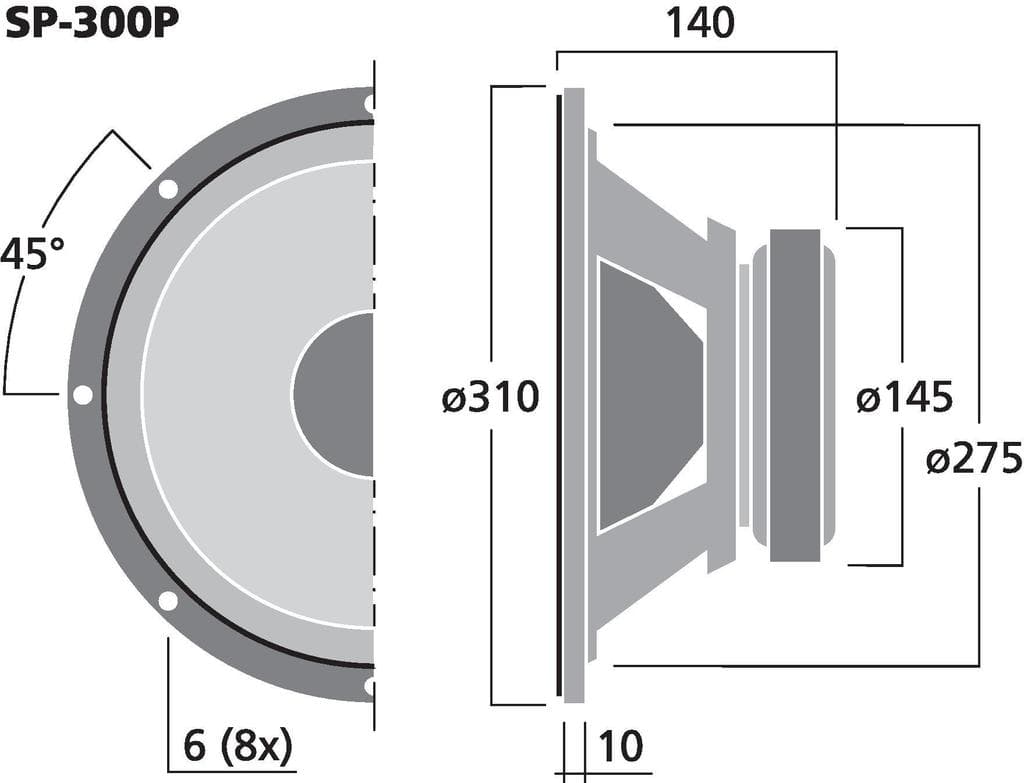

Dimensions & Physical
Weight3.4kg
Diameter310.0mm
Overall Depth140.0mm
Cutout Diameter275.0mm
