SB Acoustics SB34NRX75-6
SB Acoustics SB34NRX75-6 is a 12" 6 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 19Hz, Qts 0.40, Vas 260L, Xmax 22mm, sensitivity 88.2dB, plus 1118cm³ Vd and 44 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £179.00.
Size
12"
Impedance
6Ω
RMS Power
200W
Sensitivity
88.2dB
90.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
44
Sealed alignment
Vd
1118cm³

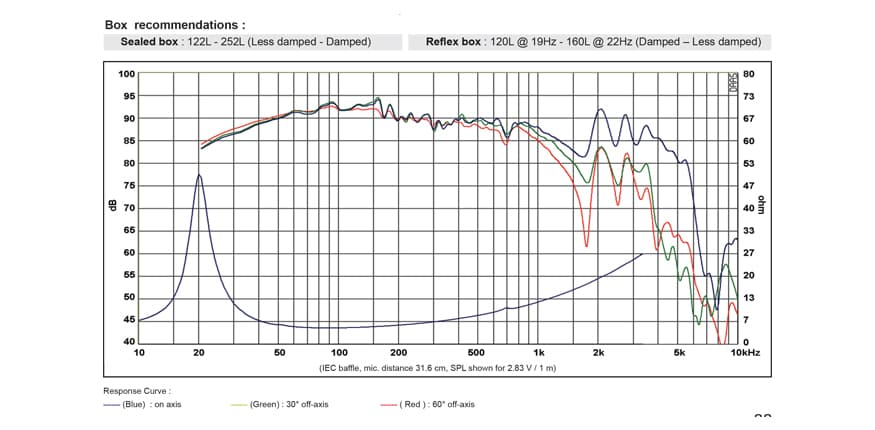

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees221 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
221 plotted pointsMedium confidence1,145 selected pixels of 3,379
T/S Parameters
Valid
Fs19Hz
Qts0.40
Qes0.43
Qms5.1
Vas260.0L
Re4.2Ω
Le1.80mH
BL10.7Tm
Sd508cm²
Mms99g
Xmax22.0mm
SPL88dB
Power200W
Impedance6Ω
Voice Coil76mm
Flux Density0.90T
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanbusiness
Updated 17 May 2026· 6Ω
Source: inc VAT · 20%
£179.00
inc VAT
soundimports
Updated 11 Sept 2026· 6Ω
Source: inc VAT
£188.98
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 6Ω
Source: inc VAT · 20%
£194.95
inc VAT
Best current price
Updated 11 Sept 2026
leanaudio
£179.00
Avg £184.32£5.32 below avg (-2.9%)
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
