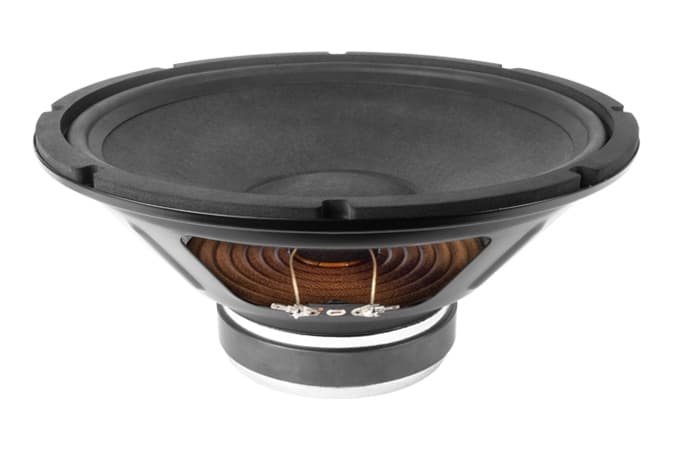

FaitalPRO 12FE330
FaitalPRO 12FE330 is a 12" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 33Hz, Qts 0.45, Vas 146.7L, Xmax 8.3mm, sensitivity 92.4dB, plus 482cm³ Vd and 69 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £81.49.
Size
12"
Impedance
8Ω
RMS Power
250W
Sensitivity
92.4dB
94.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
69
Either alignment
Vd
482cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees240 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence882 selected pixels of 1,113 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,307 selected pixels of 1,307 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,530 selected pixels of 1,530
T/S Parameters
Valid
Fs33Hz
Qts0.45
Qes0.48
Qms7.0
Vas146.7L
Re5.3Ω
Le1.10mH
BL13.0Tm
Sd579cm²
Mms74g
Xmax8.3mm
SPL92dB
Power250W
Impedance8Ω
F Low30Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£81.49
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.6kg
Diameter311.0mm
Overall Depth133.0mm
Cutout Diameter284.0mm
Bolt Circle Diameter294.0mm
