Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSB Audience BIANCO-12MW200 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverBIANCO series
SB Audience
SB Audience BIANCO-12MW200
SB Audience BIANCO-12MW200 is a 12" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 51Hz, Qts 0.49, Vas 62.9L, Xmax 7.0mm, sensitivity 94.2dB, plus 379cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £68.29.
Size
12"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.2dB
EBP
100
Either alignment
Vd
379cm³
T/S Parameters
Valid
Fs51Hz
Qts0.49
Qes0.51
Qms14.3
Vas62.9L
Re5.3Ω
Le0.83mH
BL14.7Tm
Sd543cm²
Mms65g
Xmax7.0mm
SPL94dB
Power200W
Impedance8Ω
Min Impedance5.2Ω
F Low51Hz
F High5350Hz
Voice Coil61mm
Flux Density1.23T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£80.29
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
leanaudio
£68.29
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

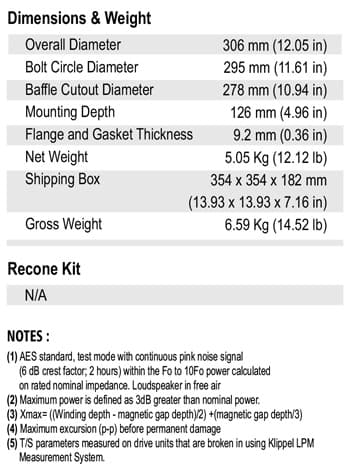

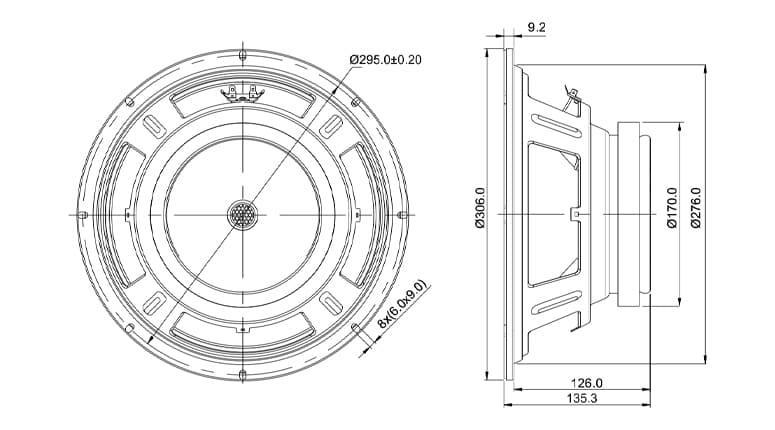

Dimensions & Physical
Weight5.0kg
Diameter306.0mm
Cutout Diameter278.0mm
Bolt Circle Diameter295.0mm
